4
A41829, SCA/SCNZ R230/231J O/M
t
2
6
3
45
7
8
4
9
1
0
e
r

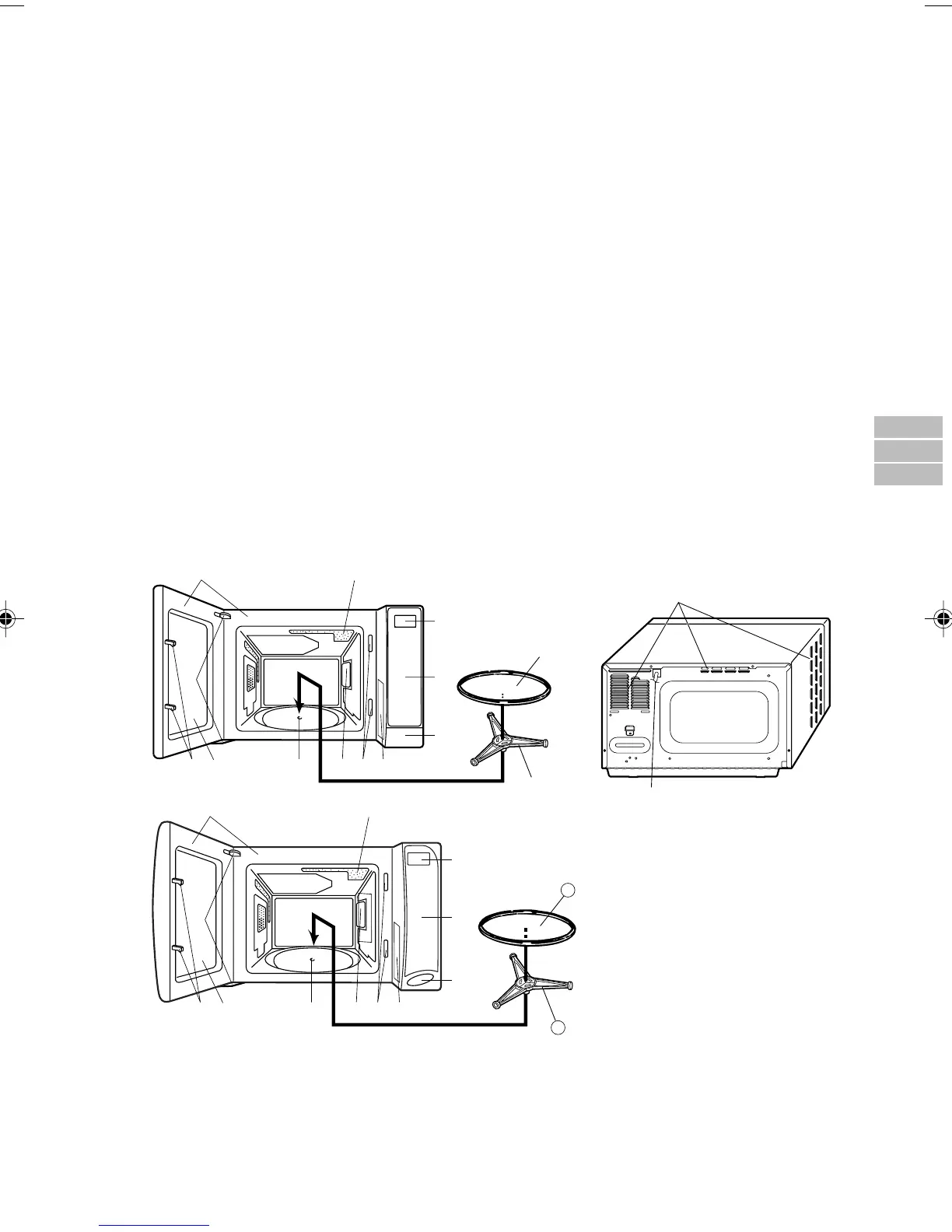

OVEN DIAGRAM
8. Waveguide cover (Do not remove)
9. Control panel (See page 5)
10. Liquid crystal display
11. Ventilation openings
12. Power supply cord
13. Turntable
14. Roller stay
15. Rating label
1. Door open button
2. Oven lamp
3. Door hinges
4. Door safety latches
5. See through door
6. Door seals sealing surfaces
7. Coupling
q
w
INSTALLATION INSTRUCTIONS
1. Remove all packing materials from the oven cavity, (do not remove the waveguide cover), and the feature
sticker from the outside of the door, if there is one. Check the unit for any damage, such as a misaligned door,
damaged door seals around the door or dents inside the oven cavity or on the door. If there is any damage,
please do not operate the oven until it has been checked by a SERVICE CENTRE APPROVED BY SHARP
and repaired, if necessary.
2. Accessories provided
1) Turntable 2) Roller stay
3) Operation manual and Cooking guide
3. Place the roller stay in the coupling on the oven floor, then place the turntable on to the roller stay, ensuring it
is located firmly. Refer to OVEN DIAGRAM below. NEVER operate the oven without the roller stay and turntable.
4. The oven should not be installed in any area where excessive heat and steam are generated, for example,
next to a conventional oven unit. The oven should be installed so as not to block ventilation openings. When
mounting on bench top : Allow at least 10cm on the top, 5cm on the both sides and at the rear of the oven
for adequate air circulation.
WARNING: The electrical outlet must be readily accessible so that the unit can be unplugged easily in an
emergency.
5. Neither the manufacturer nor the distributors can accept any liability for damage to the machine or
personal injury for failure to observe the correct electrical connecting procedure.
The A.C. voltage must be single phase 230 – 240V, 50Hz.
6. This oven must be earthed.
7. Operate the oven from a general purpose domestic outlet.
If a generator is used, do not operate the oven with non-sinusoidal outputs.
26
3
45
9
1
0
14
7 8
4t
13
(R - 230J)
(R - 231J)
SCA/SCNZ R230/231J O/M P.02-05 04.4.27, 9:16 AM4
