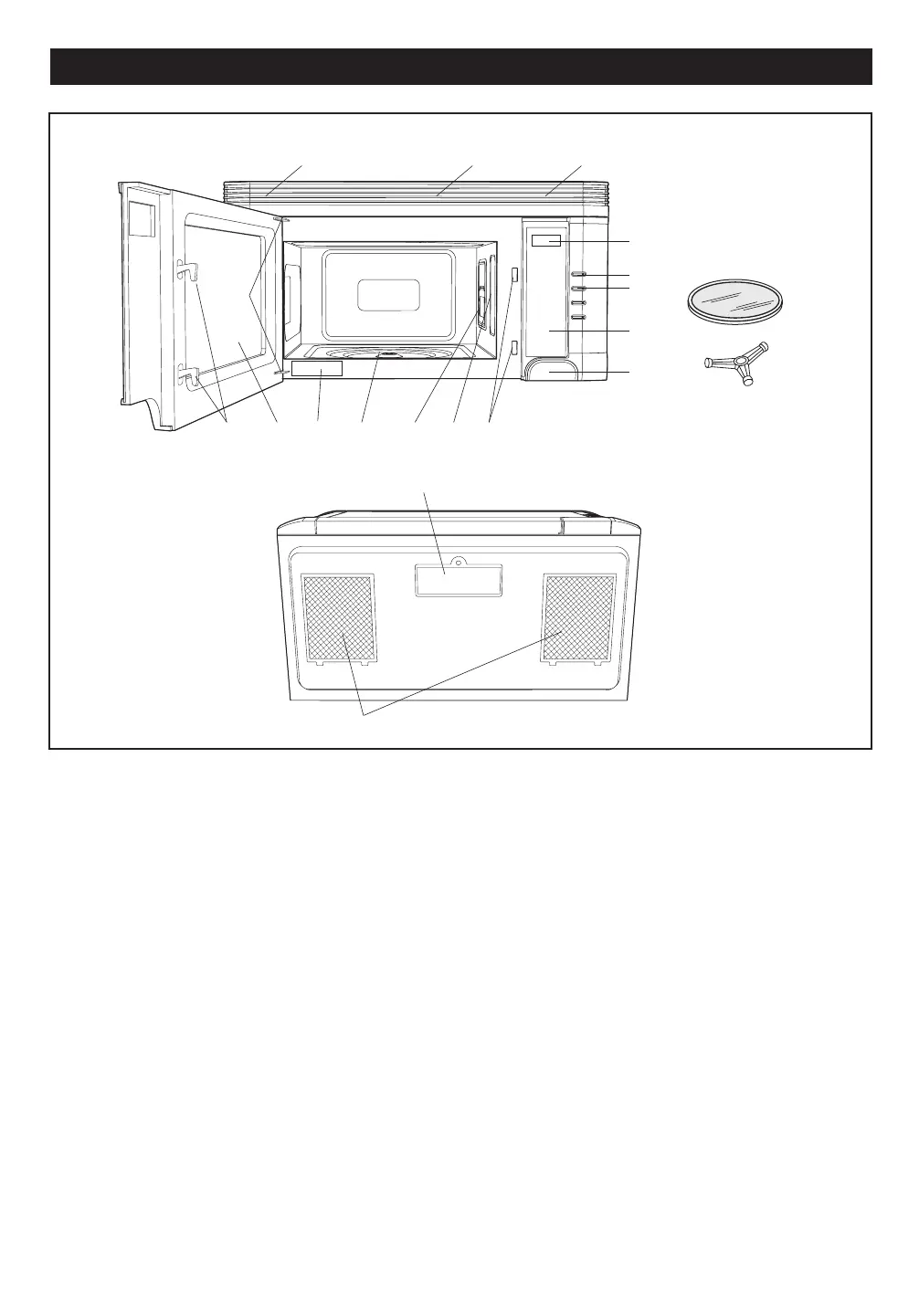

PART NAMES
1 Oven door with see-through window
Be careful with the edge of the oven door as it is
glass and could chip or break.
2 Door hinges
3 Waveguide cover:
DO NOT REMOVE.
4 Turntable motor shaft
5 Oven light
It will light when oven is operating or door is open.
6 Safety door latches
The oven will not operate unless the door is
securely closed.
7 Time display: Digital display, 99 minutes, 99
seconds
8 LIGHT HI/LO pad
Press the LIGHT HI/LO pad one time for hi, twice
for lo and three times to turn it off.
9 FAN HI/LO pad
Press the FAN HI/LO pad to turn on the fan. Press
again for low speed. Press a third time to turn the
fan off.
10 Auto-Touch control panel
11 One touch DOOR OPEN button
Push to open door.
12 Louver
13 Nameplate
14 Louver screws
  Removescrewstoreplacecharcoallter.
15 Removable turntable
The turntable will rotate clockwise or
counterclockwise. Only remove for cleaning.
16 Removable turntable support
First, carefully place the turntable support in
the motor shaft in the  center of the oven oor.
Then, place the turntable on the turntable support
securely.
17 Light cover
18 Greaselters
BOTTOM VIEW
(Front of Microwave)
(Rear of Microwave)
FRONT VIEW
17
18
16
2
34 5
7
8
9
10
12
15
16
6
11
13
1414
TINSEB391WRRZ_rev 2_R-1514.indd 10 4/19/17 2:27 PM

Sharp Carousel R1514TY Specifications

General

Style	over-the-range
Color	stainless steel
Total Capacity	1.5 cubic feet
Sensor Cooking	yes
Child Lock	yes
Timer	yes
Microwave Power	1000 watts
Current	14 amperes

Weight and Dimensions

Depth	15.56 inches
Height	16.25 inches
Width	29.94 inches
Net Weight	55 pounds
