10
1 DOOR LATCHES
2 WINDOW with METAL SHIELD - Screen allows
cooking to be viewed while keeping microwaves
confined in oven.
3 MODEL NUMBER PLATE - Located on the front
wall of the microwave oven.
4 CHARCOAL FILTER (behind Vent Grille)
5 OVEN LIGHT
6 WAVEGUIDE COVER
Protects the microwave outlet from splashes of
cooking foods.
7 TOUCH CONTROL PANEL and DIGITAL
DISPLAY - For detailed information on each
feature, see Features Diagram section,
page 11, 12.
8 HOOD CONTROLS
Vent Fan - Press High, Low or Off.
Light - Press On or Off
9 DOOR BUTTON - To open the door push the door
open button.
0 COOKTOP LIGHT
q GREASE FILTERS
w HANDLE FILTERS - Use to insert Grease Filters.
e METAL RACK - Use for extra space when
cooking with more than one container at the same
time.
r TURNTABLE / GLASS TRAY - Composed of
glass tray and roller guide. The roller guide is
placed first in the bottom of the microwave and
supports the glass tray. Both parts must be in
place when using the microwave oven.
t VENTILATION MOTOR - Your microwave oven is
designed for adaptation to the following three
types of ventilation.
(Recirculation ventilation system, Vertical
ventilation system,Horizontal ventilation system)
See installation manual to Select the type of
ventilation required for your installation.
y Guide Roller Ring
1 2 3 4 5 6 7
15
12 11 10
9 8
13
14
16

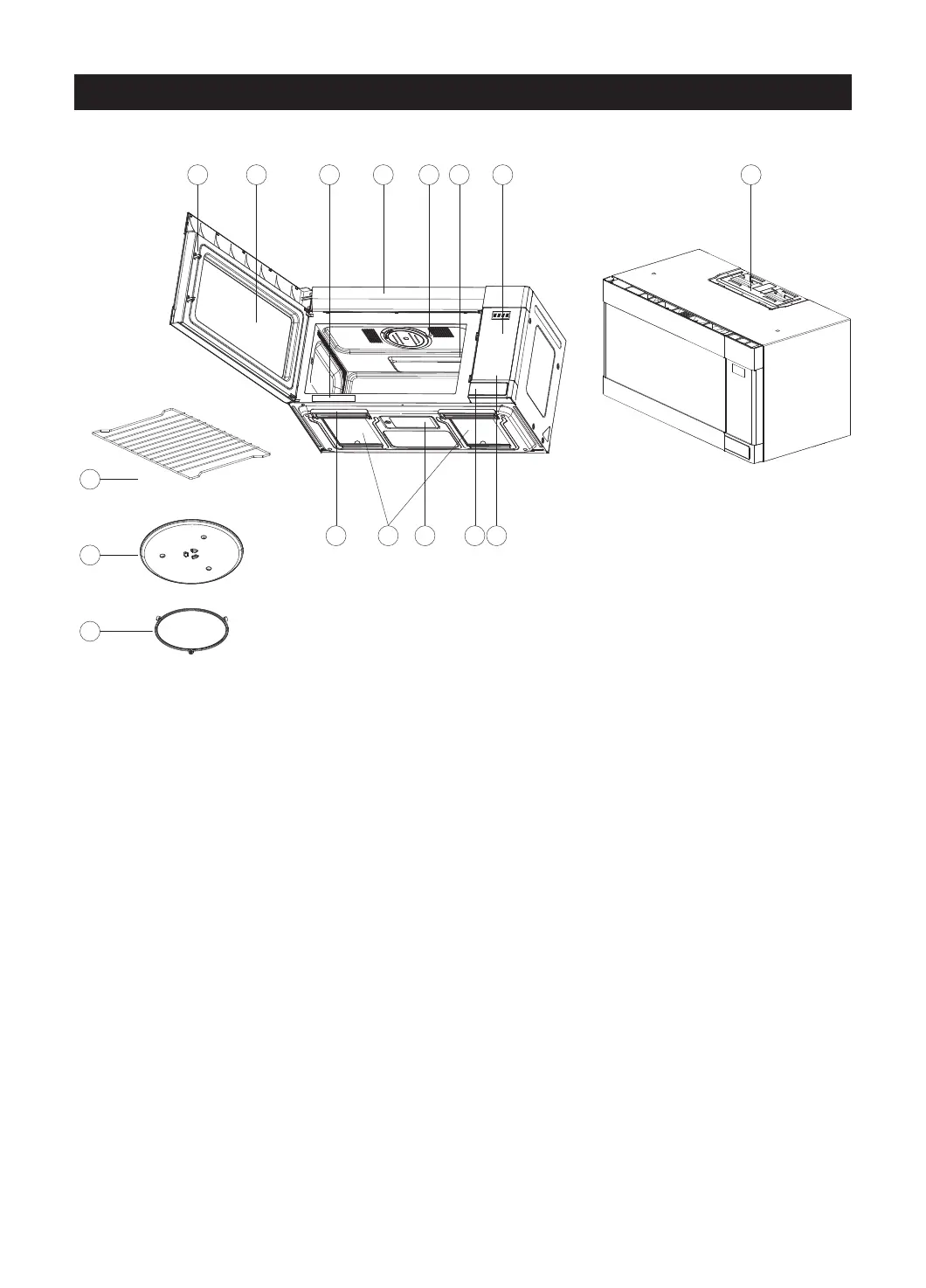

FEATURES DIAGRAM
