CD-C606/1900,CP-C606/1900
– 10 –

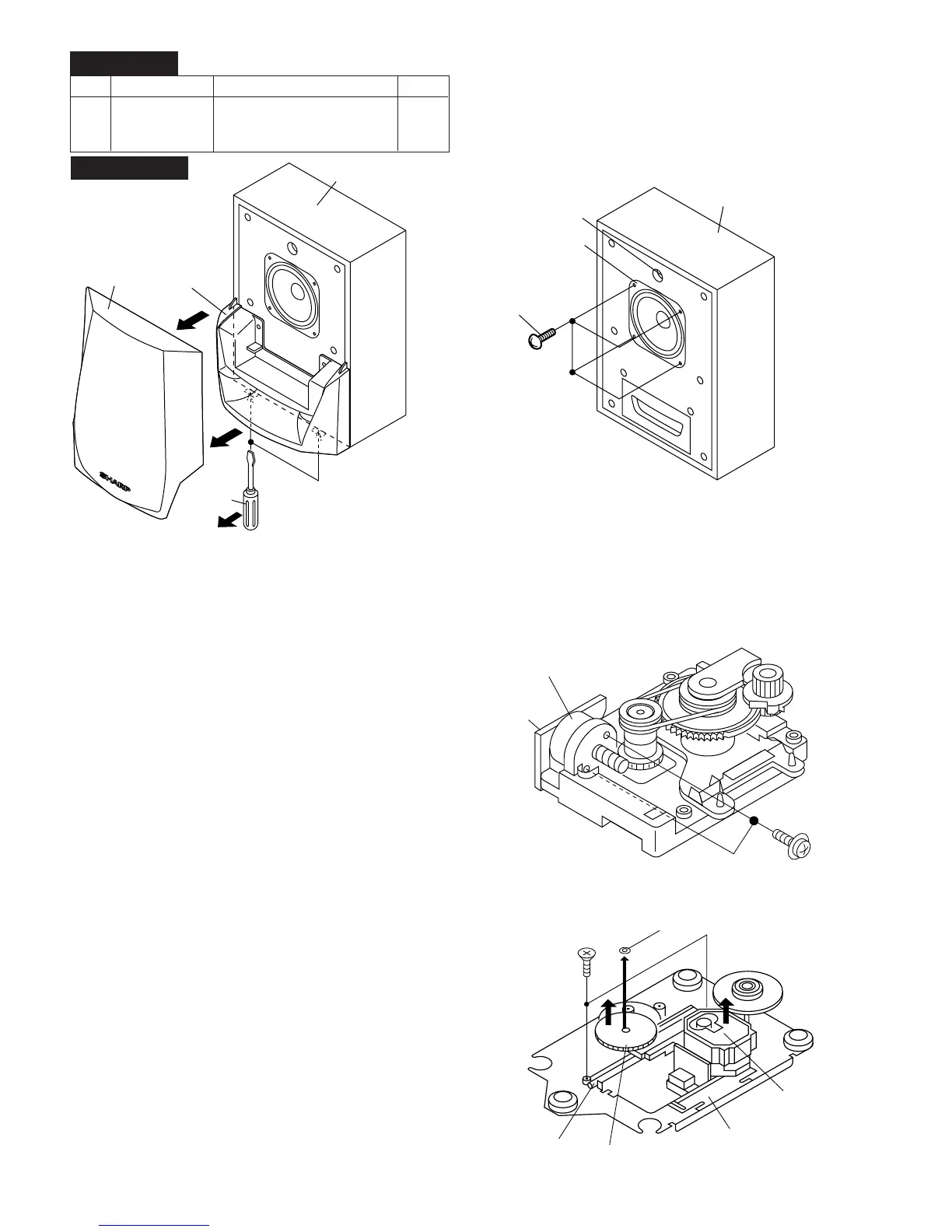

How to remove the turntable up/down/loading
motor (See Fig. 10-3)
1. Remove the screws (A1) x 2 pcs., to remove the turntable
up/down/loading motor.
How to remove the pickup (See Fig. 10-4)
1. Remove the screws (B1) x 2 pcs., to remove the shaft (B2)
x 1 pc.
2. Remove the stop washer (B3) x 1 pc., to remove the gear
(B4) x 1 pc.
3. Remove the pickup.
Figure 10-4
REMOVING AND REINSTALLING THE MAIN PARTS
CD MECHANISM SECTION
Perform steps 1, 2, 3, and 8 ~ 12 of the disassembly method
to remove the CD mechanism.
Figure 10-3
Note:
After disconnecting the optical pickup connector wrap the
front end of connector in conductive aluminum foil so as to
prevent damage to the optical pickup by static electricity.
(B1) x2
(B2) x1
(B3) x1
(B4) x1
CD Mechanism
Pickup
ø2.6 x6mm
(A1) x2
ø2.6 x5mm
Turntable Up/Down/
Loading Motor
Motor
PWB
Figure 10-2
CP-C606/1900
Figure 10-1
CP-C606/1900
STEP REMOVAL
PROCEDURE
FIGURE
1 Speaker 1. Net .......................... (A1) x1 10-1
2. Duct Panel ..............(A2) x1
3. Screw ...................... (A3) x4 10-2
Driver
Driver should be
pried away from
Speaker Box.
Direction of handle
Speaker Box
(A2)x1
(A1)x1
Speaker Box
Super
Tweeter
Woofer
(A3)x4
ø3.5x13mm
To Next Page
