CD-C410H,CP-C410
– 41 –

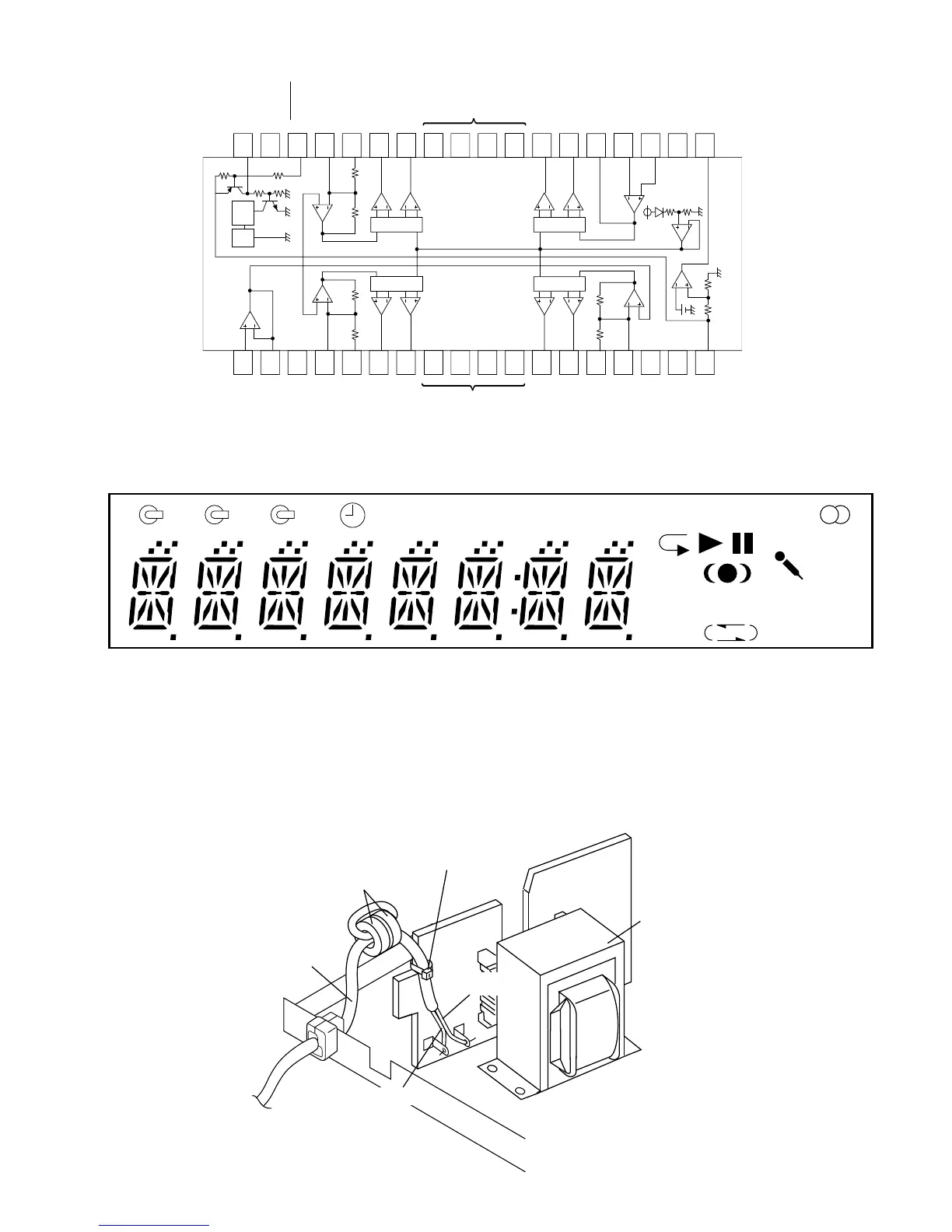

Figure 41-3
LCD701 : VVKFiP9EM7R-1 FL Display
Figure 41-1 BLOCK DIAGRAM OF IC
Power
Transformer
Nylon Band 80mm
92LN-BAND 1318A
AC Power
Supply Cord
Brown
Blue
Core
If any one of the bands shown in Fig. 41-3 is removed for some
reason, be sure replace it to the original position and same
appearance as before.
WIRING OF PRIMARILY SUPPLY LEADS (FOR UK ONLY)
Figure 41-2 FL DISPLAY
1 2 3
REC
X-BASS
SLEEP
ST
MEMORY
WIDE
TA
kHz
MHz
NR
SRS
TP
RDS
DOLBY
IC5 VHiM56748FP-1:Focus/Tracking/Spin/Slide Driver (M56748FP)
OP1
15K
15K
25K
23K
TSD
1
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
Regbase
Vcc
Vctl3(+)
Vctl3(-)
Vctl3(out)
VM3(-)
VM3(+)
GND
VM4(+)
VM4(-)
Vctl4(-)
Gain4
Standby
SS.GND
Standby
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Vrel-in
Vrel-out
N.C
Gain1
Vctl(-)
VM1(-)
VM1(+)
GND
VM2(+)
VM2(-)
Vctl2(-)
Gain2
N.C
Vcc
Reg5V
Stand
by
OP1 OP1
PA
PA
PA
PA
10K 10K
10K 10K
10K
Vcc
10K
10.8K 3.6K
10K 10K
OP1
OP1
OP1
PA
PA
PA
PA
