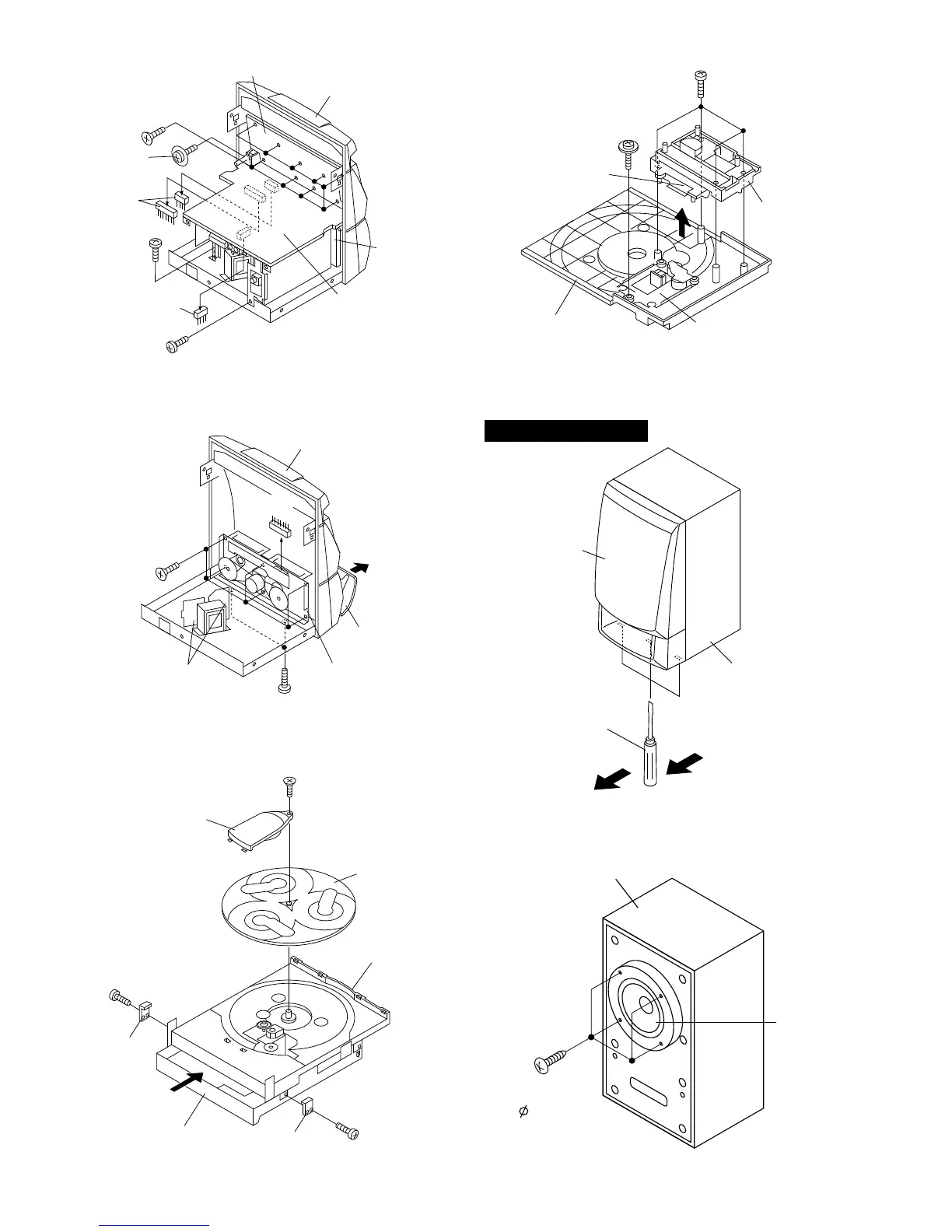

Figure 8-3
Care when installing the CD changer mechanism.
Install the CD changer mechanism on the CD player base after
the shift lever has been set in the highest position.
( J1 ) x1
ø3 x10mm
( J1 ) x1
ø3 x10mm
( H1 ) x1
ø3 x10mm
Turntable
Disc Tray
( H2 ) x1
( J2 ) x1
( J2 ) x1
CD Player Unit
Figure 8-4
Figure 8-6
CP-C410
Figure 8-2
( K1 ) x4
ø3 x12mm
( L1 ) x1
ø2.6 x10mm
CD Changer
Mechanism
CD Mechanism
Shift Lever
CD Player Base
Tape
Mechanism
Open
Cassette
Holder
( E2 ) x1
Power Supply
PWB
Front Panel
( G1 ) x6
ø3 x10mm
( F1 ) x2
ø3 x10mm
Figure 8-1
( E1 ) x1
ø3 x8mm
( E1 ) x1
ø3 x8mm
( E1 ) x9
ø3 x10mm
( E2 ) x1
( E2 ) x2
( E1 ) x1
ø3 x10mm
Front Panel
Tape
Mechanism
Display PWB
Main PWB
Speaker Box
Woofer
(A2) x4
4 x32mm
Figure 8-5
Front Panel
(A1) x1
Speaker Box
Screw
driver
Driver should be pried
away from speaker Box.
Direction of handle
