Sharp CD-C413H - Page 10

CD-C421H / C411H
– 8 –

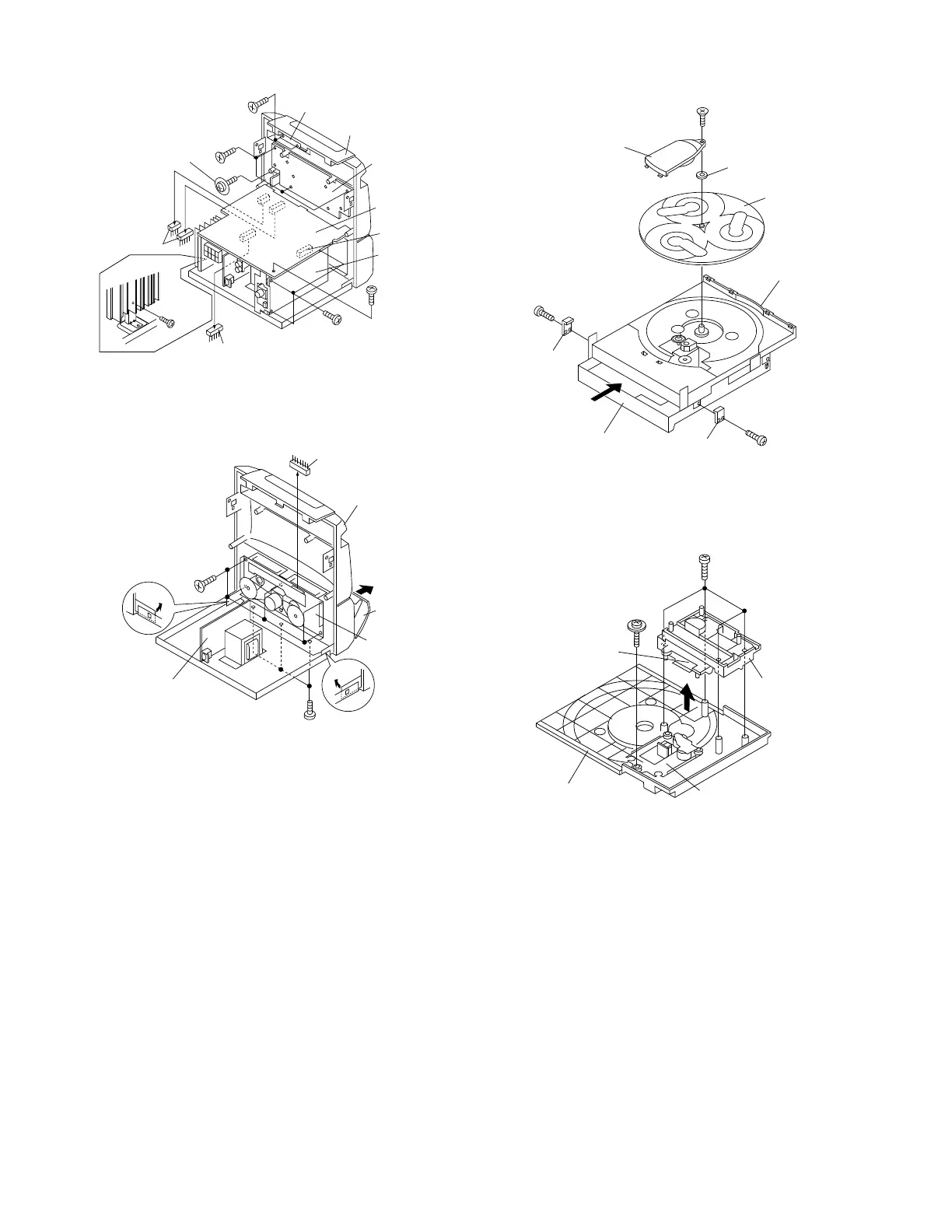

Figure 8-1
Figure 8-2
Figure 8-3
Figure 8-4
Be careful when installing the CD changer mechanism.
Install the CD changer mechanism on the CD player base after
the shift lever has been set in the highest position.
( F3 ) x2

( F3 ) x1

( E2 ) x1

( F1 ) x1
ø3 x 8mm
( F2 ) x1
ø3 x10mm
( F1 ) x3
ø3 x10mm
( F2 ) x1
ø3 x10mm
( E1 ) x3
ø3 x10mm
( F1 ) x2
ø3 x10mm
Main PWB
Tuner PWB
Display
PWB
Switch PWB
Front Panel
( F3 ) x1

( G1 ) x3
ø3x10mm

( H1 ) x6
ø3x10mm

(G2 ) x1
(G2 ) x1
Tape
Mechanism
Cassette
Holder
Front Panel
Power PWB
Open
( K1 ) x1
ø2 x 4mm
( K1 ) x1
ø2 x 4mm
( J1 ) x1
ø3 x10mm
Turntable
Disc Tray
( J2 ) x1
( K2 ) x1
( K2 ) x1
CD Player Unit
Washer
( L1 ) x4
ø2.6 x 5mm
(M1 ) x1
ø2.6 x10mm
CD Changer
Mechanism
CD Mechanism
Shift Lever
CD Player Base
