CD-C422/C422C/C2800/C2800C
• The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas-
sis with no signal given.
1. In the tuner section,
( ) indicates AM
< > indicates FM stereo
2. In the main section, a tape is being played back.
3. In the deck section, a tape is being played back.
( ) indicates the record state.
4. In the power section, a tape is being played back.
5. In the CD section, the CD is stopped.
• Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.
NOTES ON SCHEMATIC DIAGRAM
• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.
• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means micro-micro-farad and the unit of the
capacitor without such a symbol is microfarad. As to
electrolytic capacitor, the expression “capacitance/withstand
voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type
• Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.

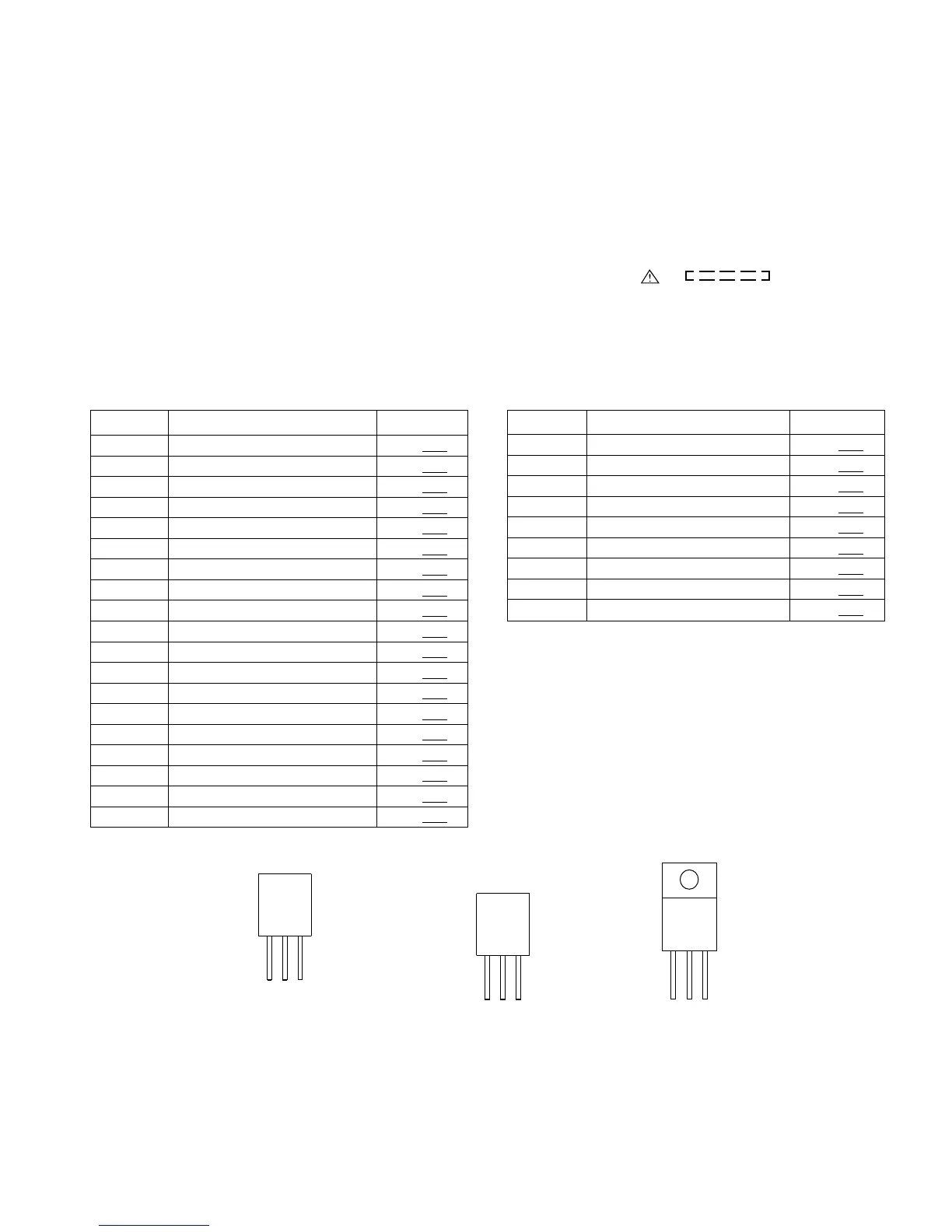

REF. NO
DESCRIPTION
POSITION POSITION
SW716 CD ON—OFF
SW717 TUNER/BAND ON—OFF
SW718 TAPE ON—OFF
SW719 VIDEO/AUX ON—OFF
SW723 DISC SKIP ON—OFF
SW724 OPEN/CLOSE ON—OFF
SWM 3 FOOL PROOF ON—OFF
SWM 4 F.A.S. ON—OFF
SWM 5 CAM ON—OFF
REF. NO
DESCRIPTION
SW1 OPEN/CLOSE ON—OFF
SW2 MECHA UP ON—OFF
SW3 DISC NUMBER ON—OFF
SW4 PICKUP IN ON—OFF
SW701 RANDOM/DEMO ON—OFF
SW702 VOLUME DOWN ON—OFF
SW703 X-BASS/EQUALIZER ON—OFF
SW704 VOLUME UP ON—OFF
SW705 REC/PAUSE ON—OFF
SW706 FF ON—OFF
SW707 STOP ON—OFF
SW708 PLAY ON—OFF
SW709 REW ON—OFF
SW710 TUNING UP ON—OFF
SW711 TUNING DOWN ON—OFF
SW712 POWER ON—OFF
SW713 CLOCK ON—OFF
SW714 TIMER/SLEEP ON—OFF
SW715 MEMORY ON—OFF
KTA1266 GR
KTA1271 Y
KRC102 M
KTC3194 Y
KRA102 M
KRA109 M
KTC3200 GR
KTC3199 GR
2SD2012 Y
Figure 13 TYPES OF TRANSISTOR
B
(3)
C
(2)
E
(1)
FRONT
VIEW
ECB
FRONT
VIEW
ECB
FRONT
VIEW
KTA1273 Y
KRC104 M
KTC3203 Y
KRC107 M
To Next Page
