CD-C430H,CP-C430H
– 50 –
A
B
C
D
E
F
G
H
1
23456

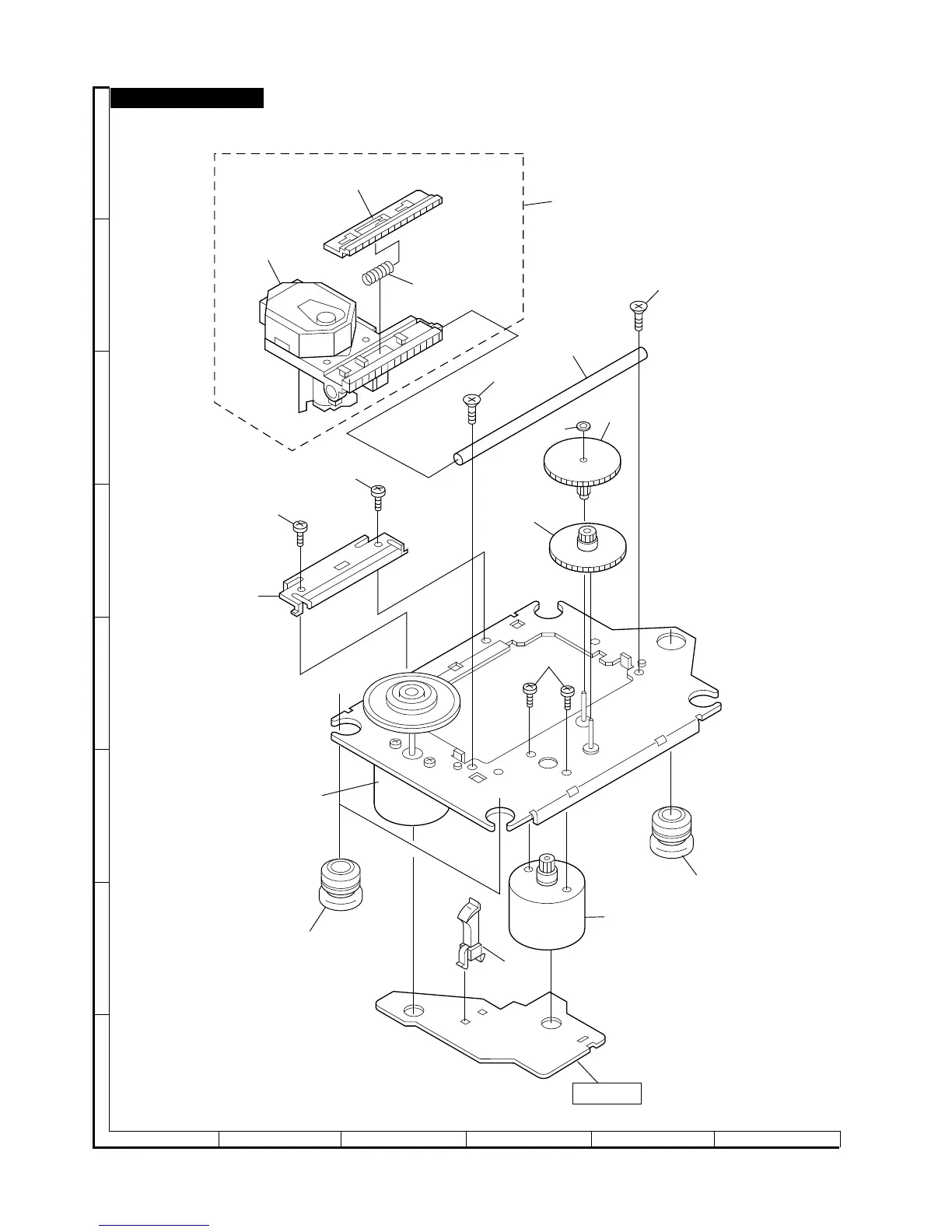

Figure 7 CD MECHANISM EXPLODED VIEW
– 7 –
306-1
701
304
701
302
301
702
702
303
M1
703
305x2
SW4
M2
305
PWB-E
306-2
306-3
306
704
CD-C430H
