CD-C449W/K449W
– 12 –

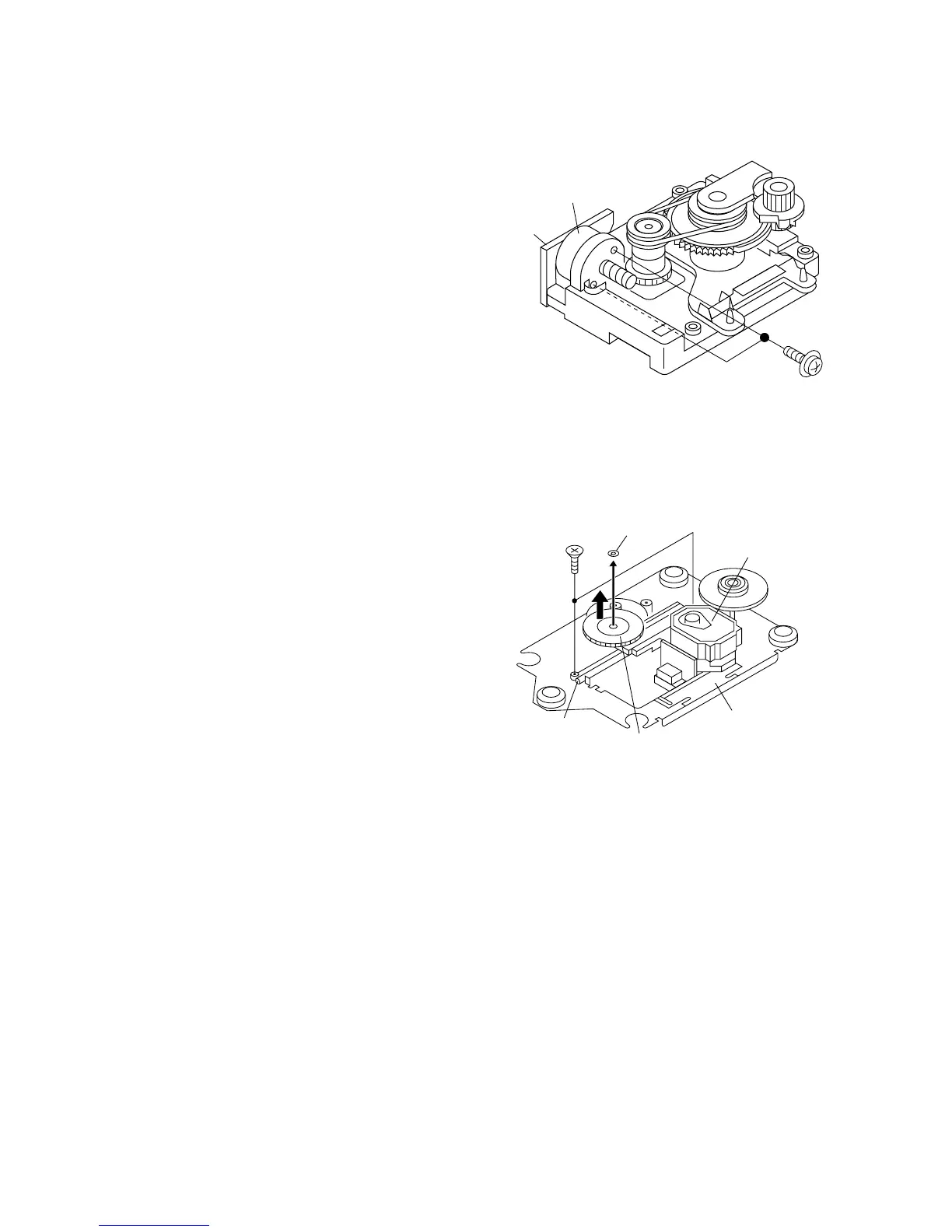

How to remove the pickup (See Fig. 12-2)
1. Remove the screws (B1) x 2 pcs., to remove the shaft (B2).
2. Remove the stop washer (B3) x 1 pc., to remove the gear
(B4).
3. Remove the pickup.
Figure 12-2
REMOVING AND REINSTALLING THE MAIN PARTS
CD MECHANISM SECTION
Perform steps 1, 2, 3,15,16,17 and 19 of the disassembly
method to remove the CD mechanism.
How to remove the loading motor
(See Fig. 12-1)
1. Remove the screws (A1) x 2 pcs., to remove the loading
motor.
Figure 12-1
( A1 ) x2
ø2.6 x5mm
Loading / Up
/ Down Motor
Motor
PWB
( B1 ) x2
ø2.6 x6mm
Shaft
( B2 ) x1
Stop Washer
( B3 ) x1
Gear
( B4 ) x1
CD Mechanism
Pickup
Note
After removing the connector for the optical pickup fromthe
connector wrap the conductive aluminium foil around the
front end of connector so as to protect the optical pickup
from electrostatic damage.
To Next Page
