CD-C462/C462C
– 8 –
Screwdriver
Net
( A1 ) x1
Baffle Board
( A2 ) x1
Woofer
Tweeter
( A3 ) x2
ø3 x10mm
( A5 ) x2
ø3 x10mm
( A4 ) x4
ø4 x14mm
Woofer
Tweeter
Super
Tweeter
CP-C462

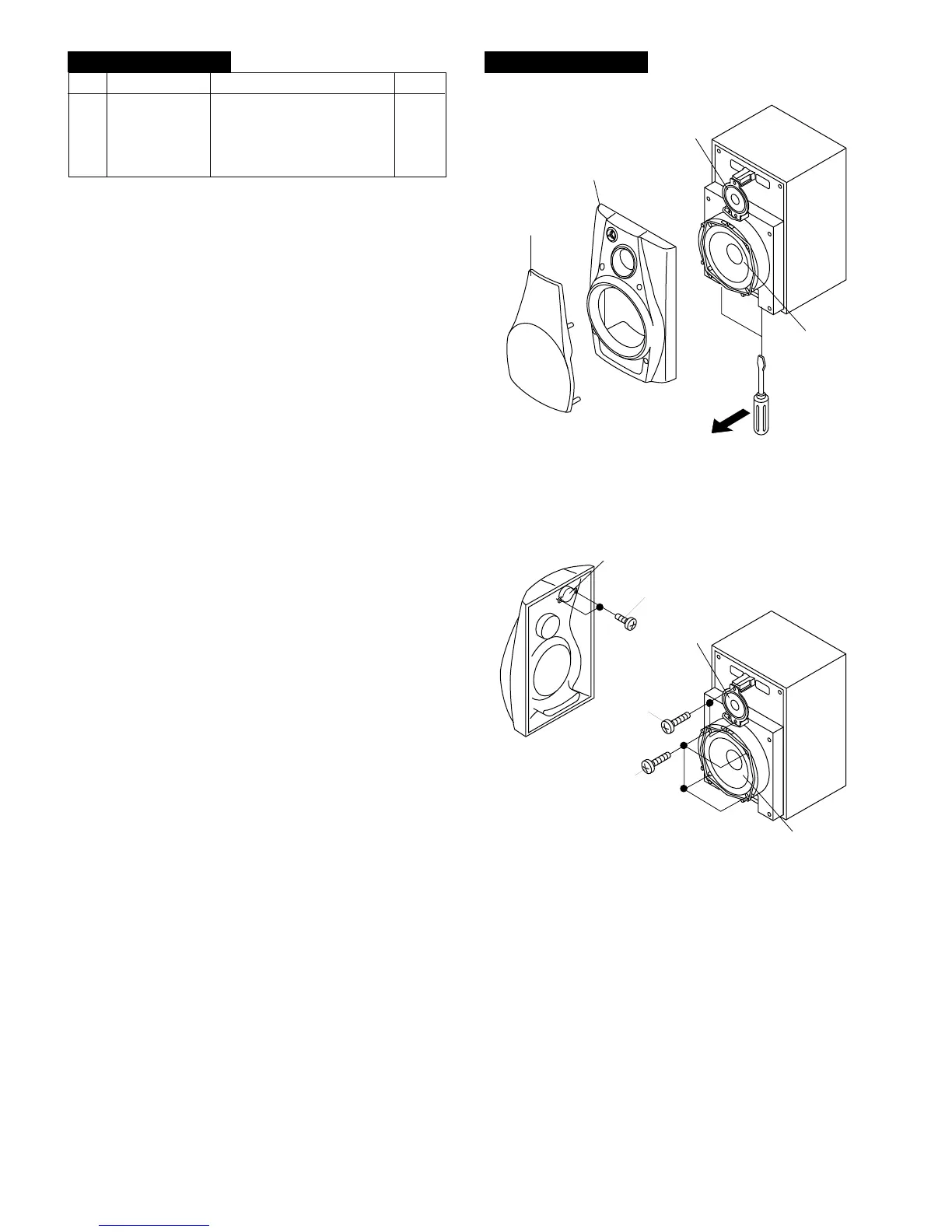

1 Front Speaker 1. Net .......................... (A1) x1 8-1
2. Baffle Board ........... (A2) x1
3. Screw ..................... (A3) x2 8-2
4. Screw ..................... (A4) x4
5. Screw ..................... (A5) x2
STEP REMOVAL PROCEDURE FIGURE
CP-C462
Figure 8-2
Note:
The center and rear speakers can be easily disassembled.
Therefore the disassembling method is not discribed.
For details refer to the disassembling drawing in the Parts
Guide.
Figure 8-1
To Next Page
