CD-C470H,C470E,C480H/CP-C470H,C470E,C480H
– 8 –

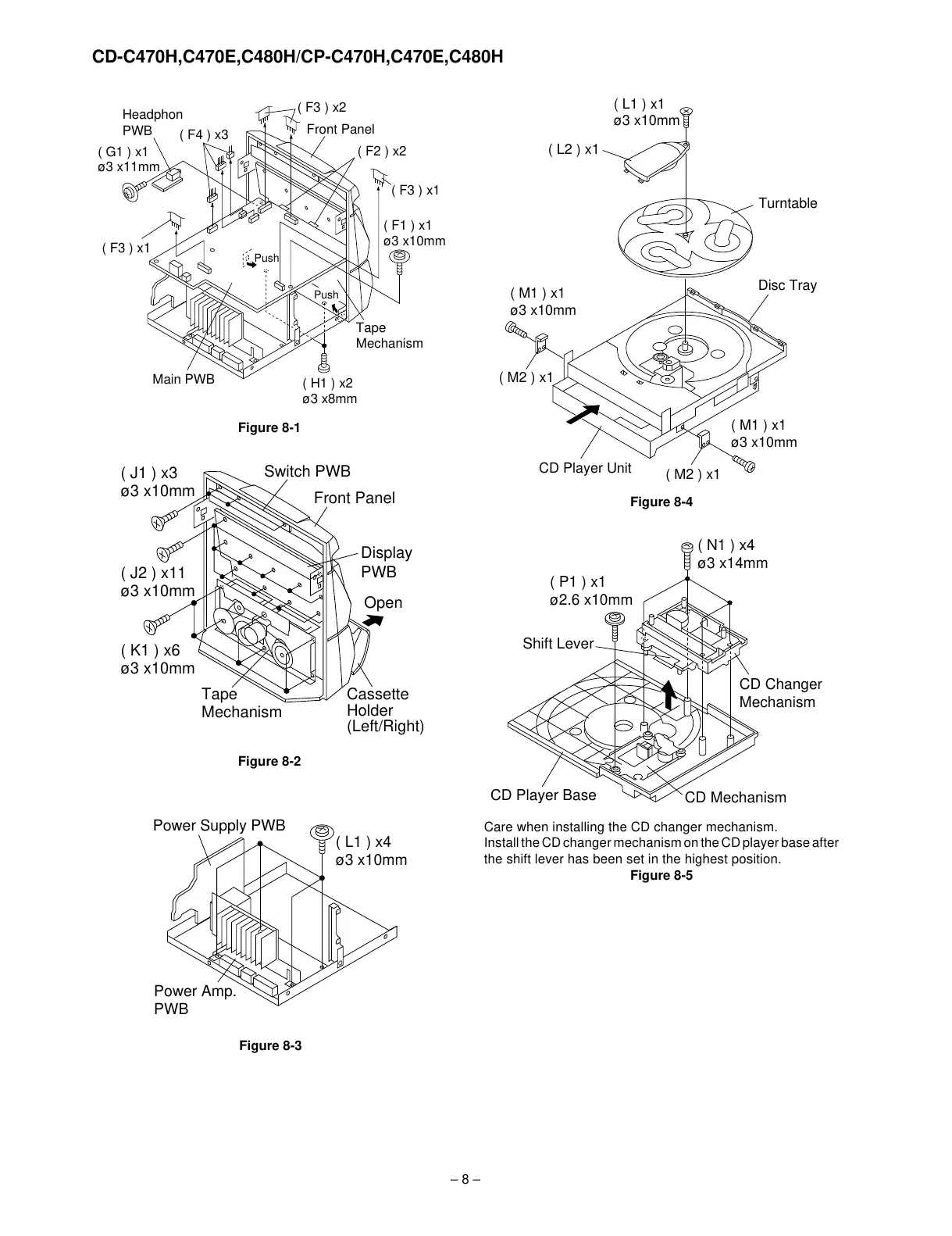

Figure 8-1
Figure 8-2
Figure 8-3
Figure 8-4
Care when installing the CD changer mechanism.
Install the CD changer mechanism on the CD player base after
the shift lever has been set in the highest position.
Figure 8-5
Main PWB
( H1 ) x2
ø3 x8mm
( G1 ) x1
ø3 x11mm
( F4 ) x3
( F3 ) x1
Front Panel
Tape
Mechanism
( F1 ) x1
ø3 x10mm
Push
Push
Headphon
PWB
( F3 ) x2
( F3 ) x1
( F2 ) x2
Display
PWB
Switch PWB
Tape
Mechanism
Open
Cassette
Holder
(Left/Right)
Front Panel
( K1 ) x6
ø3 x10mm
( J2 ) x11
ø3 x10mm
( J1 ) x3
ø3 x10mm
Power Supply PWB
( L1 ) x4
ø3 x10mm
Power Amp.
PWB
( M1 ) x1
ø3 x10mm
( M1 ) x1
ø3 x10mm
( L1 ) x1
ø3 x10mm
Turntable
Disc Tray
( L2 ) x1
( M2 ) x1
( M2 ) x1
CD Player Unit
( N1 ) x4
ø3 x14mm
( P1 ) x1
ø2.6 x10mm
CD Changer
Mechanism
CD Mechanism
Shift Lever
CD Player Base
