Sharp CD-C470H Service Manual

– 9 –
CD-C470H,C470E,C480H/CP-C470H,C470E,C480H

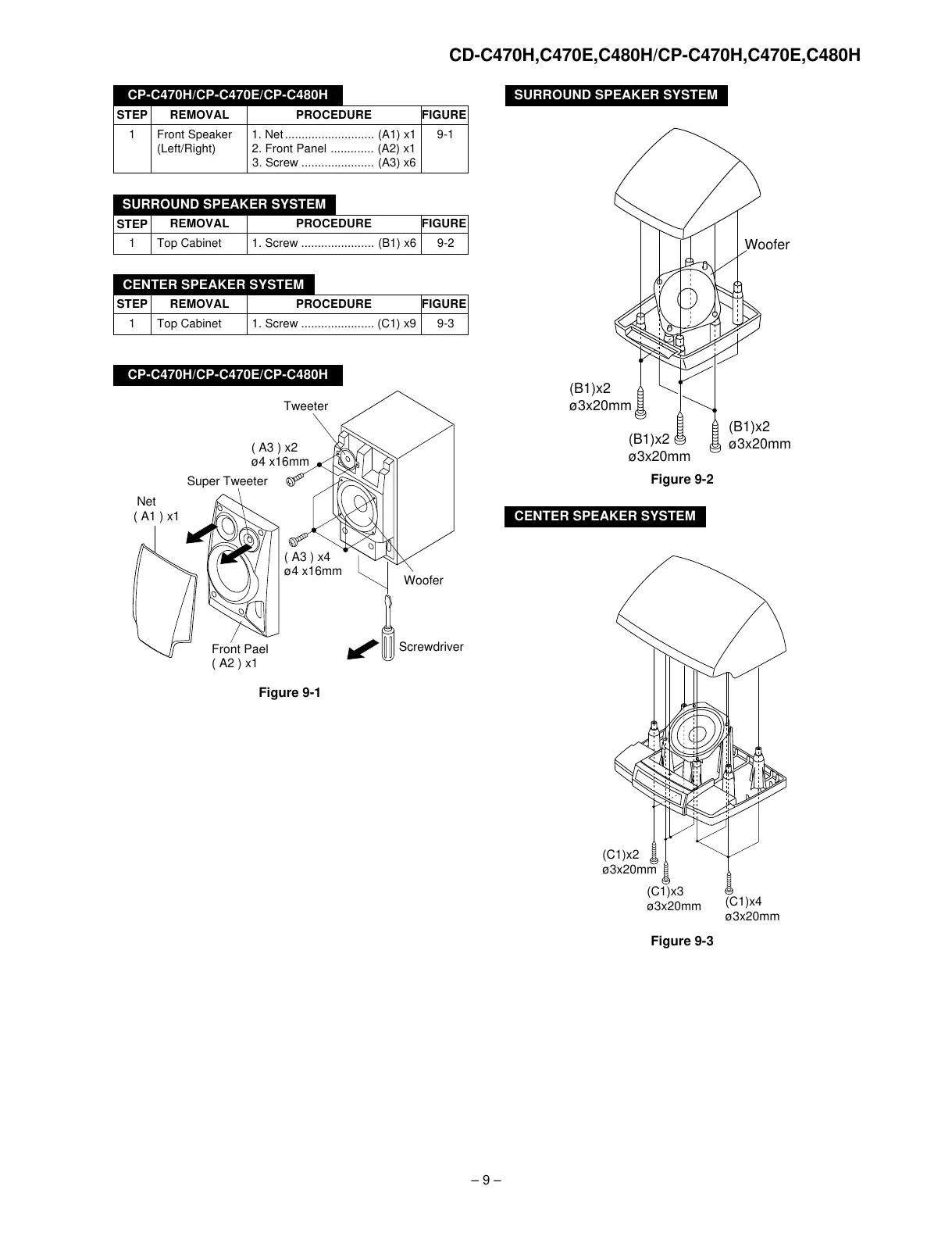

Figure 9-1
Figure 9-2
STEP
REMOVAL PROCEDURE FIGURE
1 Front Speaker 1. Net........................... (A1) x1 9-1
(Left/Right) 2. Front Panel ............. (A2) x1
3. Screw ...................... (A3) x6
STEP
REMOVAL PROCEDURE FIGURE
1 Top Cabinet 1. Screw ...................... (B1) x6 9-2
STEP
REMOVAL PROCEDURE FIGURE
1 Top Cabinet 1. Screw ...................... (C1) x9 9-3
( A3 ) x2
ø4 x16mm
( A3 ) x4
ø4 x16mm
Screwdriver
Net
( A1 ) x1
Front Pael
( A2 ) x1
Tweeter
Super Tweeter
Woofer
Figure 9-3
(B1)x2
ø3x20mm
(B1)x2
ø3x20mm
(B1)x2
ø3x20mm
Woofer
(C1)x2
ø3x20mm
(C1)x3
ø3x20mm
(C1)x4
ø3x20mm
CP-C470H/CP-C470E/CP-C480H
CENTER SPEAKER SYSTEM
SURROUND SPEAKER SYSTEM
CP-C470H/CP-C470E/CP-C480H
CENTER SPEAKER SYSTEM
SURROUND SPEAKER SYSTEM
