CD-C811W/821W

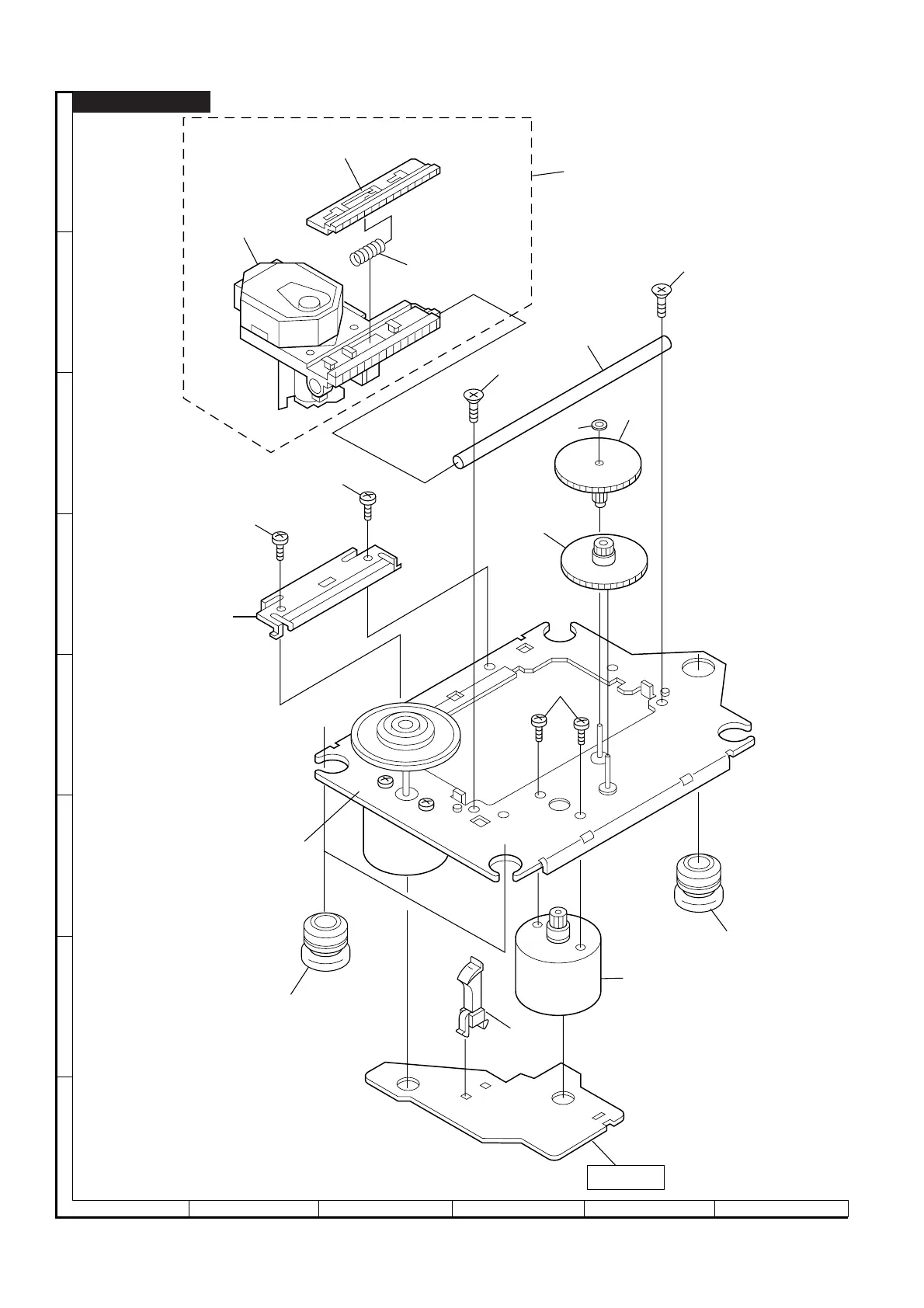

Figure 9 CD MECHANISM EXPLODED VIEW
A
B
C
D
E
F
G
H
1
23456
– 9 –
CD-C811W/821W
306-1
701
304
701
302
301
702
702
303
M1
703x2
305x2
SW4
M2
305
PWB-C
306-2
306-3
306
704
