CD-M5000W/CP-M5000
7
8 9 10 11 12

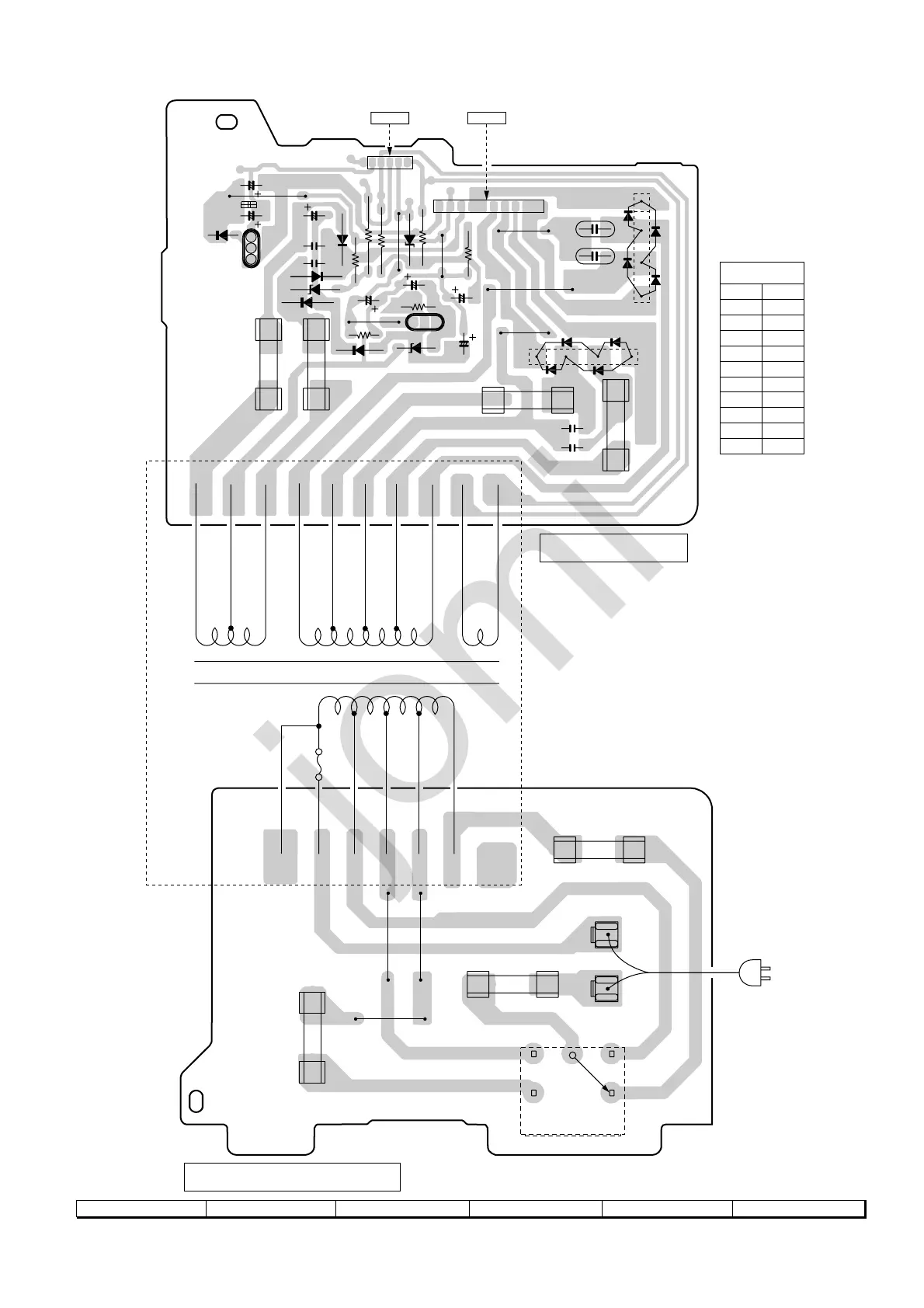

Figure 29 WIRING SIDE OF P.W.BOARD (2/8)
C861
T.F.
BR
COLOR TABLE
RD(R)
OR
YL
GR
BL
VL
GY
WH(W)
BK
PK
BROWN
RED
ORANGE
YELLOW
GREEN
BLUE
VIOLET
GRAY
WHITE
BLACK
PINK
D856
D806
ZD803
R806
Q801
R808
D805
C802
ZD802
C803
D803
C807
R802
C806
IC854
R805
D804
R804
ZD801
R801
C860
C805
C862
CNP802
CNP801
D801
R803
C801
C804
D802
C809
C808
54321
543 2110 9 8 7 6
POWER PWB-A2
TRANSFORMER PWB-A3
PT801
POWER TRANSFORMER
AC POWER
SUPPLY CORD
AC 110/127/220/230-240 V,
50/60 Hz
BL
BR
F805
T5A L 250V
F807
T2.5A L 250V
F806
T2.5A L 250V
F804
T2A L 250V
F803
T2A L 250V
E C B
F802
T5A L 250V
F801
T5A L 250V
C810
C811
3
2
1
CNS705
P32 1 - F
FROM DISPLAY PWB
CNS801
P31 12 - G
FROM MAIN PWB
LUG1
LUG2
SW801
VOLTAGE SELECTOR
230-240 V
110 V
127 V
220 V
110 V 127 V 220 V 230-240 V
