CD-M5000W/CP-M5000
– 8 –

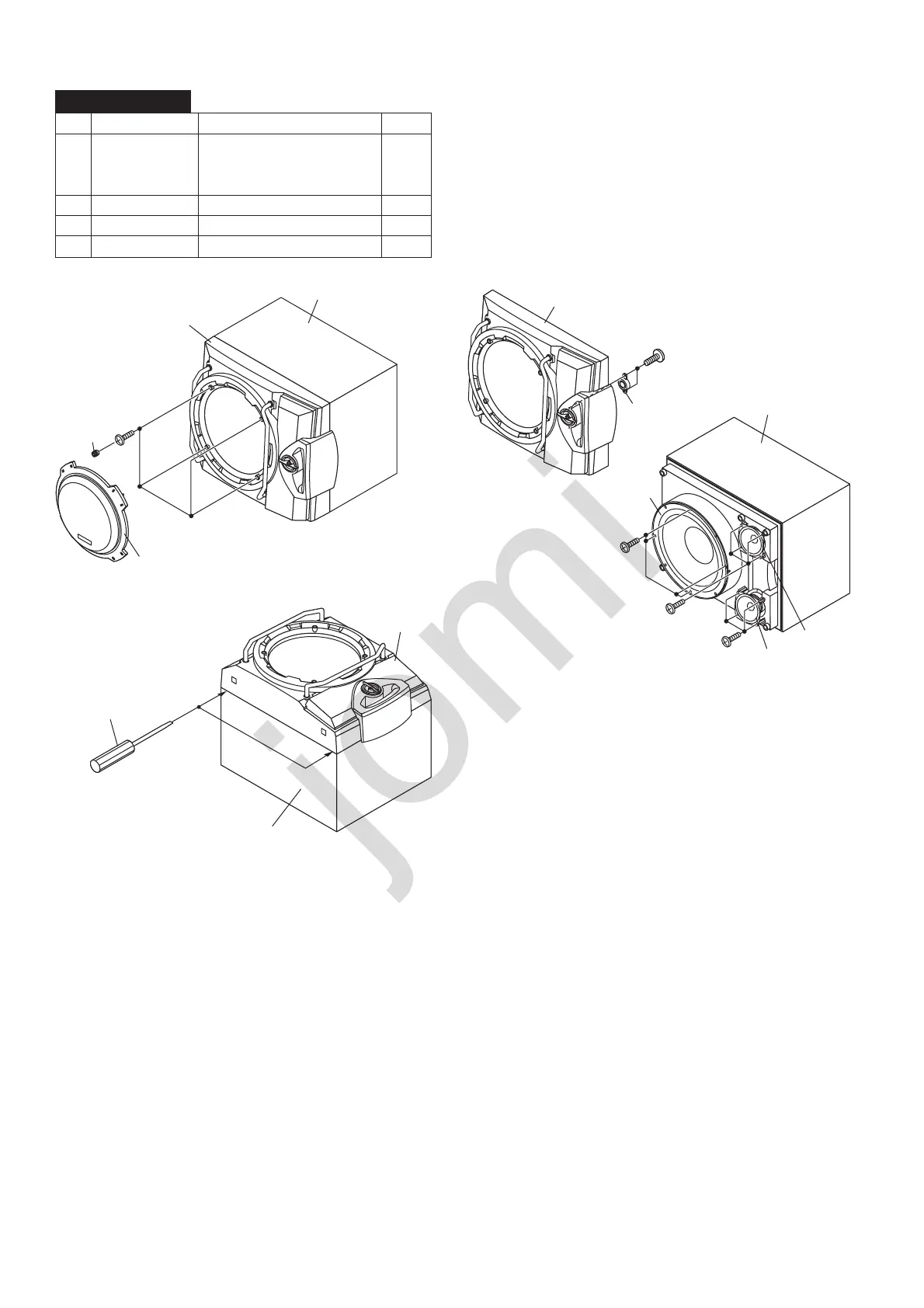

Figure 8-1
1 Front Panel/ 1. Net Ass'y ................. (A1) x1 8-1
Super Tweeter 2. Catching Holder ...... (A2) x4
3. Screw ...................... (A3) x4
4. Screw ...................... (A4) x2 8-2
2 Woofer 1. Screw ...................... (B1) x4 8-2
3 Tweeter 1. Screw ...................... (C1) x4 8-2
4 Midrange 1. Screw ...................... (D1) x4 8-2
STEP
REMOVAL
PROCEDURE
FIGURE
Figure 8-2
CP-M5000
Woofer
Tweeter
Midrange
Speaker Box Ass'y
(B1)x4
ø4x16mm
(C1)x4
ø3x12mm
(A4)x2
ø2.6x10mm
(D1)x4
ø3x12mm
Super
Tweeter
Front Panel
Speaker Box Ass'y
Front Panel
(A3)x4
ø4x20mm
(A2)x4
(A1)x1
Screwdriver
Speaker Box Ass'y
Front Panel
Driver should
be pried away
from Speaker Box.
