4-1
CV10CTX
CHAPTER 4. DISASSEMBLING PROCEDURE
[1] DISASSEMBLING PROCEDURE
"ACTUAL UNITS MAY VARY SLIGHTLY FROM THOSE PICTURES BELOW"
CAUTION: ● DISCONNECT THE PORTABLE TYPE ROOM AIR CONDITIONER FROM THE POWER SUPPLY BEFORE ANY SERVICE.
● DISCONNECT THE EXHAUST HOSE FROM THE UNIT BEFORE ANY SERVICE.(SEE OPERATION MANUAL)
● DRAINAGE SHOULD BE PERFORMED BEFORE ANY SERVICE.
(SEE "WHENEVER THE UNIT IS MOVED" OF OPERATION MANUAL )

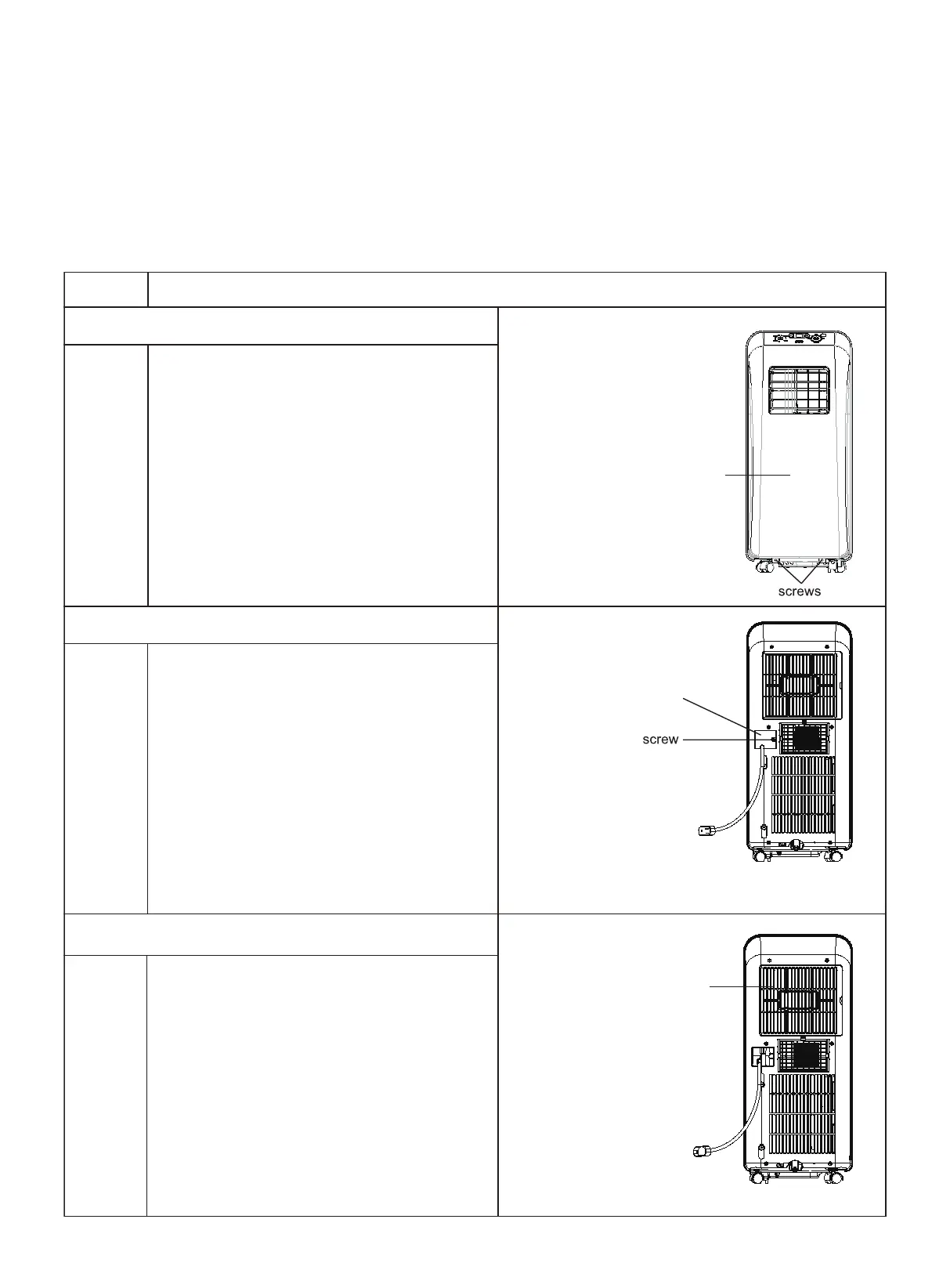

1.Remove the panel sub-assy
panel sub-assy
2.Remove cable collection board
cable collection board
3.Remove grille and filter sub-assy
grille and filter sub-assy
Steps
Procedure
Remove the two screws fixing panel sub-assy, lift
to remove the panel sub-assy.
Remove the screws fixing cable collection board,
to remove the board.
Pull outward the grille and filter sub-assy by
hands, to remove them.
To Next Page
