Sharp CV-10CTX-W User Manual

4-4
CV10CTX

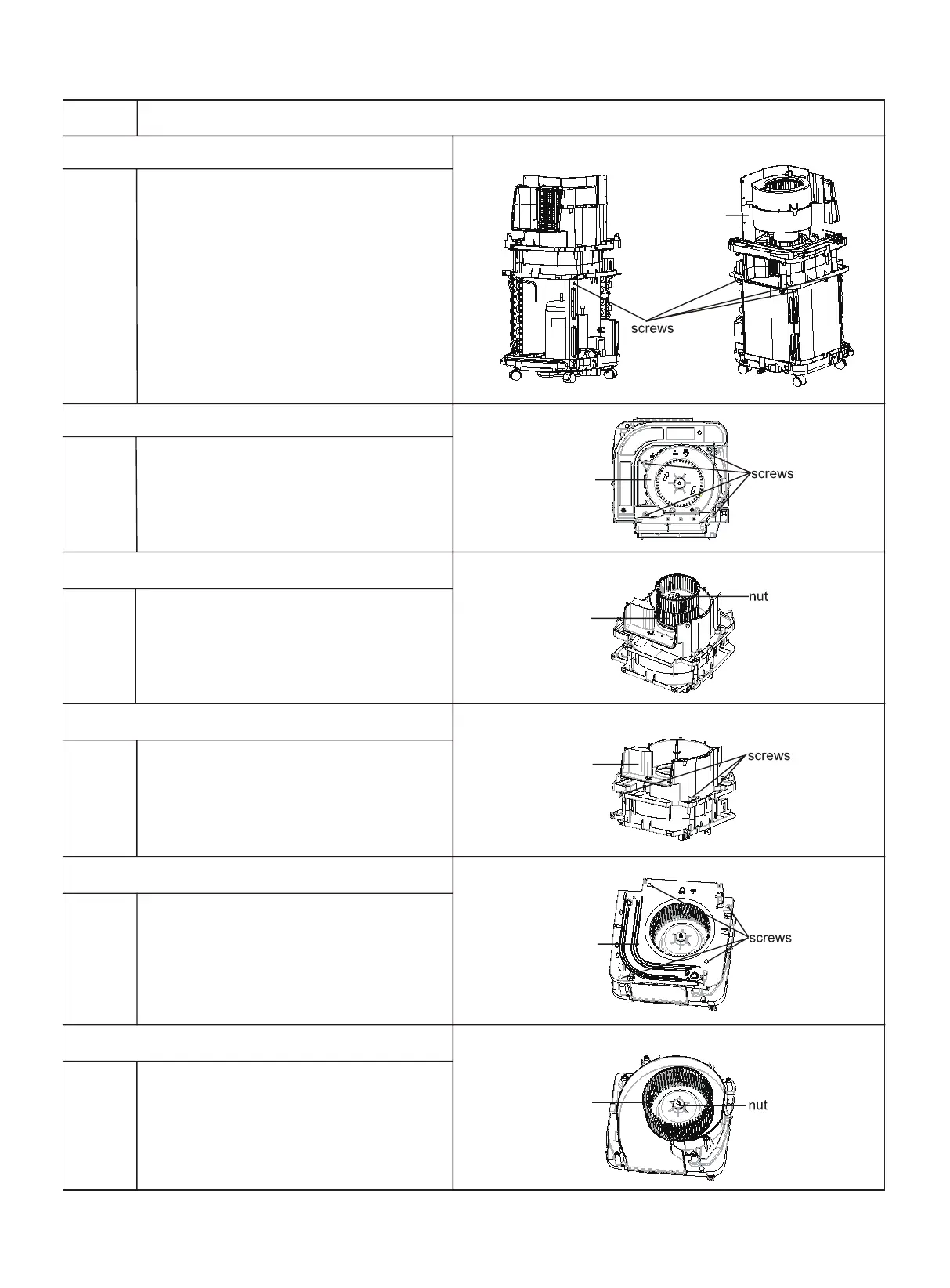

12.Remove air flue assy
air flue assy
13.Remove upper propeller
upper propeller
14.Remove upper centrifugal fan blade
upper centrifugal
fan blade
15.Remove lower propeller
lower propeller
16.Remove diversion circle
diversion circle
17.Remove lower centrifugal fan blade
lower centrifugal
fan blade
Steps
Procedure
Remove the four screws fixing air flue assy, to
remove the air flue assy.
Remove the four screws fixing upper propeller to
remove the upper propeller.
Remove the screw nut and gasket fixing upper
centrifugal fan blade, to remove the upper
centrifugal fan blade.
Remove the three screws fixing lower propeller,
to remove the lower propeller.
Remove the four screws fixing air guide loop, to
remove the diversion circle.
Remove the screw nut and gasket fixing lower
centrifugal fan blade, to remove the lower
centrifugal fan blade.
