CVP09LX
2 – 8

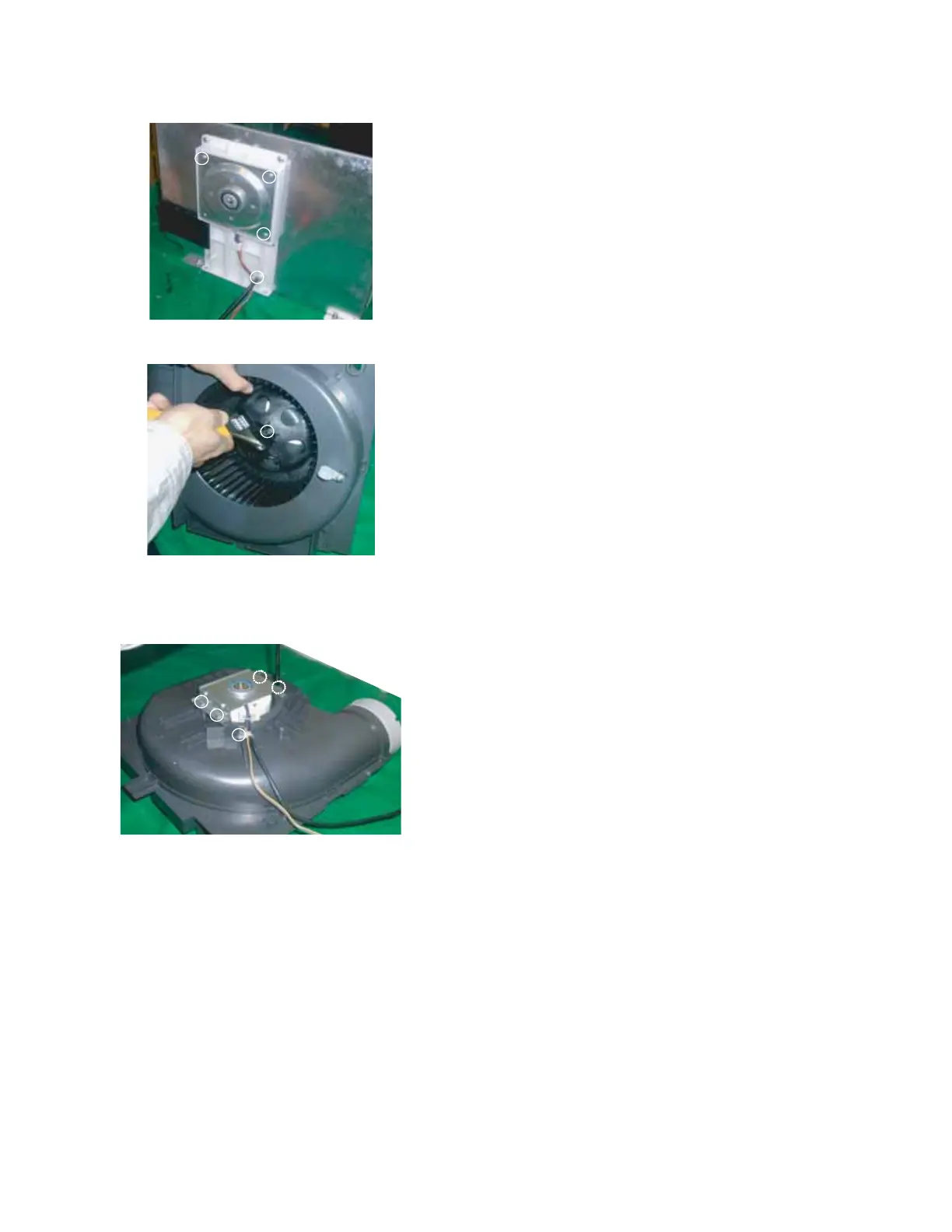

40.
Unscrew 4 screws holding t
he
motor cover and wire holder
.
Remove the motor cover
.
Then remove the fan motor
.
41.U
nscrew the screw holding the centrifugal fan.
42.
Unscrew 5 screws holding t
he
motor cover and wire holder
.
Remove the motor cover
.
Then remove the fan motor
.
12
14
Table of Contents
Models CV-P10Lc
1
Default Chapter
1
Table of Contents
1
Chapter 1. Product Specification
2
Specification
2
Electrical Parts
2
Wiring Diagram
3
External Dimension
3
Part Names
4
Chapter 2. Disassembling Procedure
6
Procedure for Disassembly
6
Disassembling the Control Box
14
Chapter 3. Explanation of Circuit and Operation
15
Electronic Control Circuit Diagram
15
Printed Wiring Board
16
Function
17
Performance Curves
20
Chapter 4. Attention When Repairing
21
How to Repair Refrigeration
21
Electrical Component Test
23
Chapter 5. Troubleshooting Guide
24
Troubleshooting
24
Portable Air Conditioner
31
Replacement Parts List
31
CV-P09LX (Outside Parts)
32
CV-P09LX (Control Box Parts)
33
CV-P09LX (Inside Parts)
33
CV-P09Lx
34
CV-P10Lc
40
CV-P10LC (Inside Parts)
42
CV-P10LC (Control Box Parts)
44
CV-P10LC (Cycle Parts)
45
CV-P10LC (Accessory Parts)
46
CV-P10LC (Packing Parts)
47
Index
48
