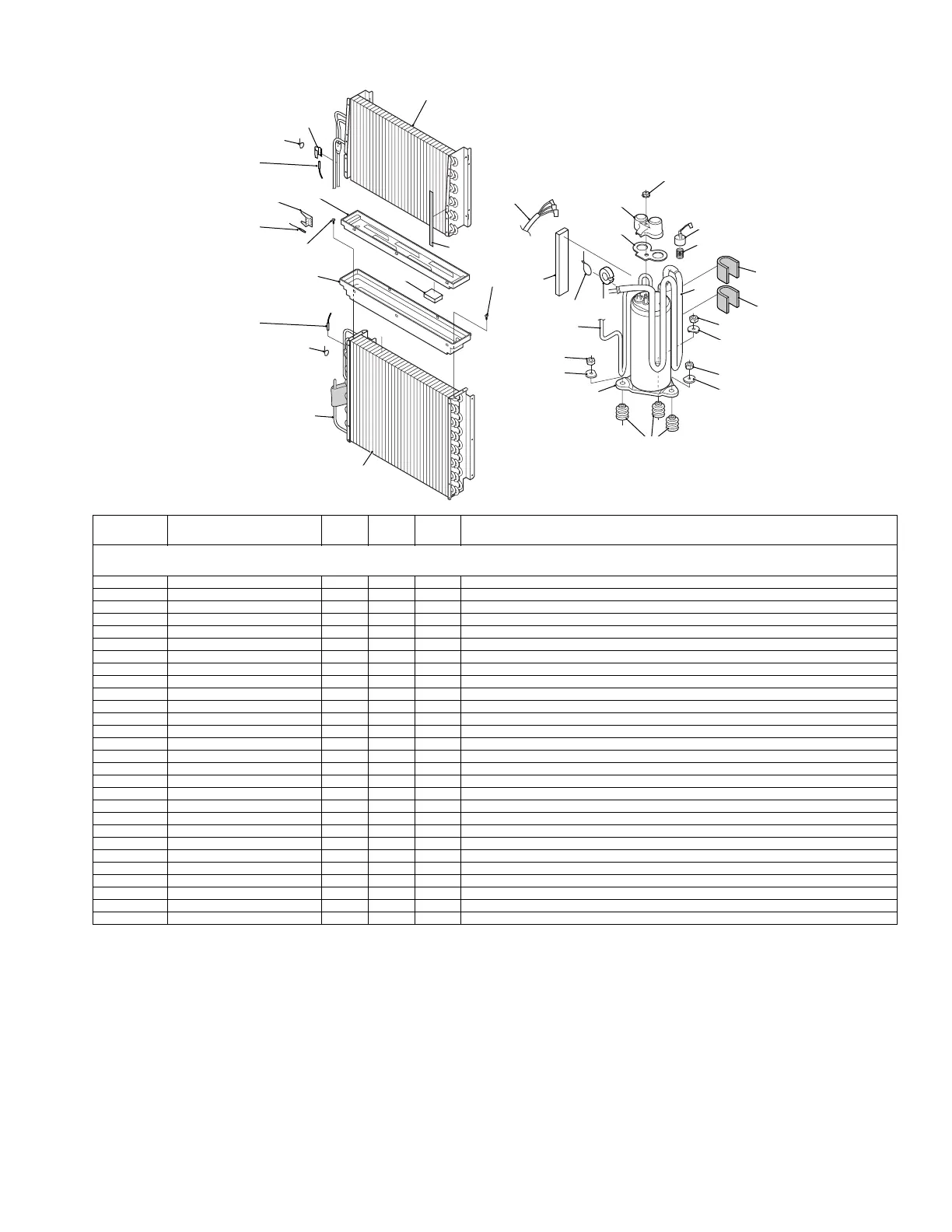

[10] CV-P10LC (Cycle parts)
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION
[10] CV-P10LC (Cycle parts)
1-28 LBND-A042JBE0 AC Wire fixing band
1-120 LHLD-A315JBF0 AE Thermistor holder
1-124 MSPR-A027JBE0 AB Thermistor spring
1-126 PCOV-B154JBEZ AG Cover M
1-128 PSEL-C882JBEZ AC Drain pan insulator
1-129 PSRA-A174JBFZ AZ Dribller
1-130 PSRA-A173JBFZ AX Drain pan
1-131 QW-IZA083JBZZ AP Comp wiring
3-1 CPIPCA929JBKZ AX Suction tube ass'y
3-2 DCPY-A340JBKZ AR Capillary tube ass'y
3-3 GLEG-A103 JBE0 AG Compressor cushion
3-4 LX-NZA148JBE0 AD Frange nut
3-5 MSPR-A114JBE0 AF Protector spring
3-6 PCOV-A371JBE0 AF Terminal cover
3-7 PSEL-B160JBE0 AH Terminal gasket
3-9 RHOG-A233JBEZ AU Overload relay
3-10 PCMPRA468JBEZ CA Compressor
3-12 LBND-A046JBE0 AE Wire fixing band
3-13 PCON-A569JBEZ BT Condenser
3-14 PEVA-A586JBEZ BQ Evaporator
3-15 PFPFPC834JBEZ AD Insulator A
3-16 PFPFPC835JBEZ AD Insulator B
3-17 PGUM-A113JBE0 AH Damper rubber
3-20 PPIPCH210JB1Z AP Discharge tube
3-21 PSEL-C880JBEZ AC Eva insulator
6-4 LX-WZA047JBEZ AC Comp.washer
6-14 XNES780-65000 AC Nut
6-24 XTTS740P10 000 AC Tapping screw
6-24
6-24
3-21
3-15
3-16
6-4
6-14
3-20
3-17
3-12
6-4
6-14
6-4
6-14
3-10
3-2
3-4
3-6
3-7
3-3
3-1
3-9
3-5
3-13
3-14
1-124
1-120
<TH2(OR)>
<TH1(YE)>
<TH3(BK)>
1-130
1-129
1-128
1-126
1-131
1-28
1-28
