INSTALL WINDOW PANEL
Hole
Projection
Insect guard
net
Rain guard
"A"
Window panel
Projection
"A"
Window panel
Foam seal A
(adhesive type)
Installation in a double-hung sash window
(See page 12 for installation in a sliding sash window. )

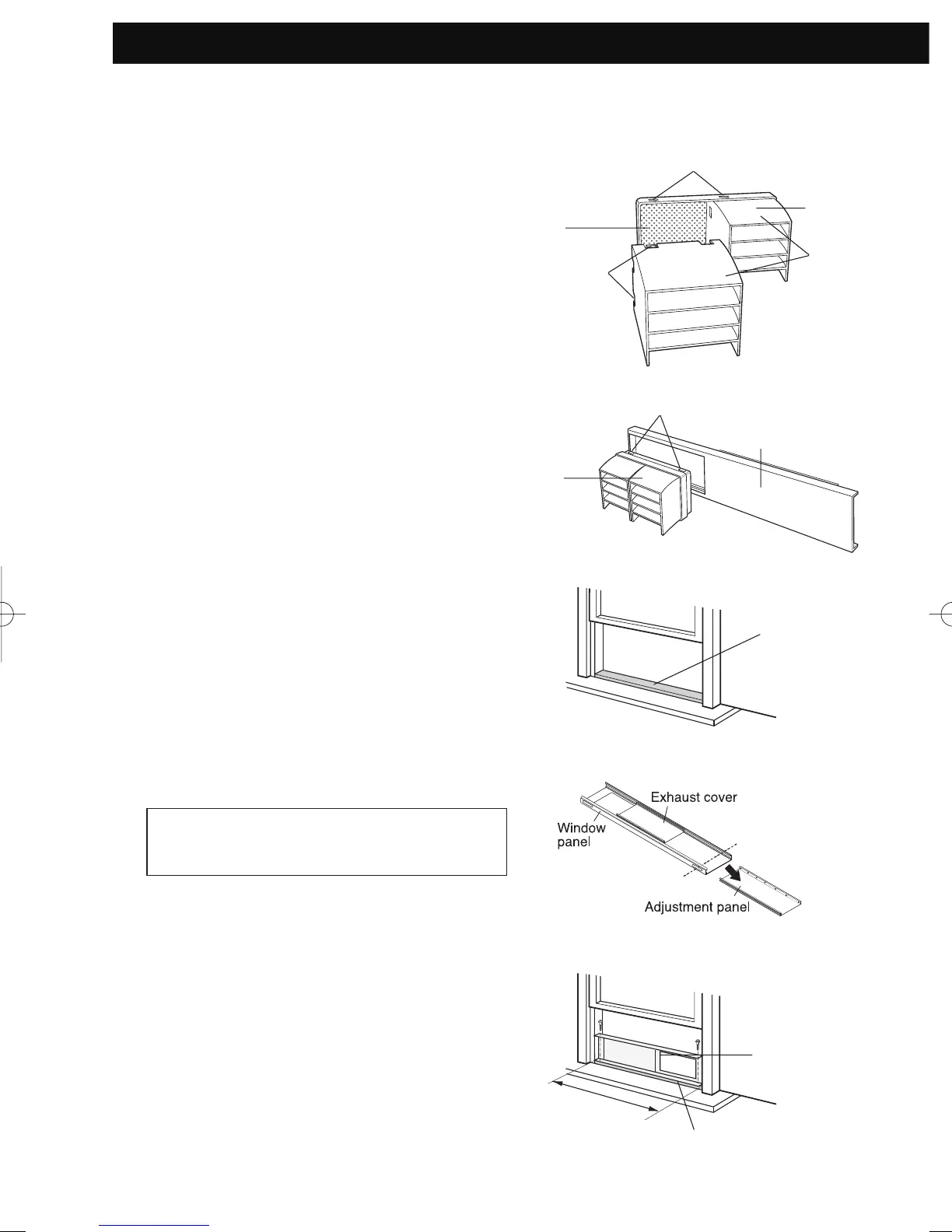

1
Connect the rain guards to the insect
guard net.
Insert all three projections on each rain
guard into the holes in the insect guard net.
Side “A” will now be at the top, as indicated
in the diagram.
2
Attach the guard combined above to the
window panel
Push the insect guard net fi rmly to ensure
that its four projections fi t into the holes in
the window panel.
Side “A” will now be at the top, as indicated
in the diagram.
3
Cut the foam seal A (adhesive type) to
the proper length and attach it to the
window stool.
4
Attach the window panel to the window
stool.
If the inner width of the window is be-
tween 22" (559mm) and 24" (609mm)
inclusive.
The window panel cannot be installed in
windows less than 22" (559mm) wide,
as you will be unable to shut the exhaust
cover.
(1) Remove the adjustment panel from
the window panel, and cut the window
panel to the same width as the window.
(2) Open the window sash and place the
window panel on the window stool
(3) Secure the window panel to the window
stool with 2 screws.
Cut
22"~ 24"
Window stool
