DV-NC55S/H
DV-NC60H
3
1
2
AUDIO/VIDEO PWB
MAIN PWB
CASSETTE
HOUSING
Tuner
MECHANISM
CHASSIS

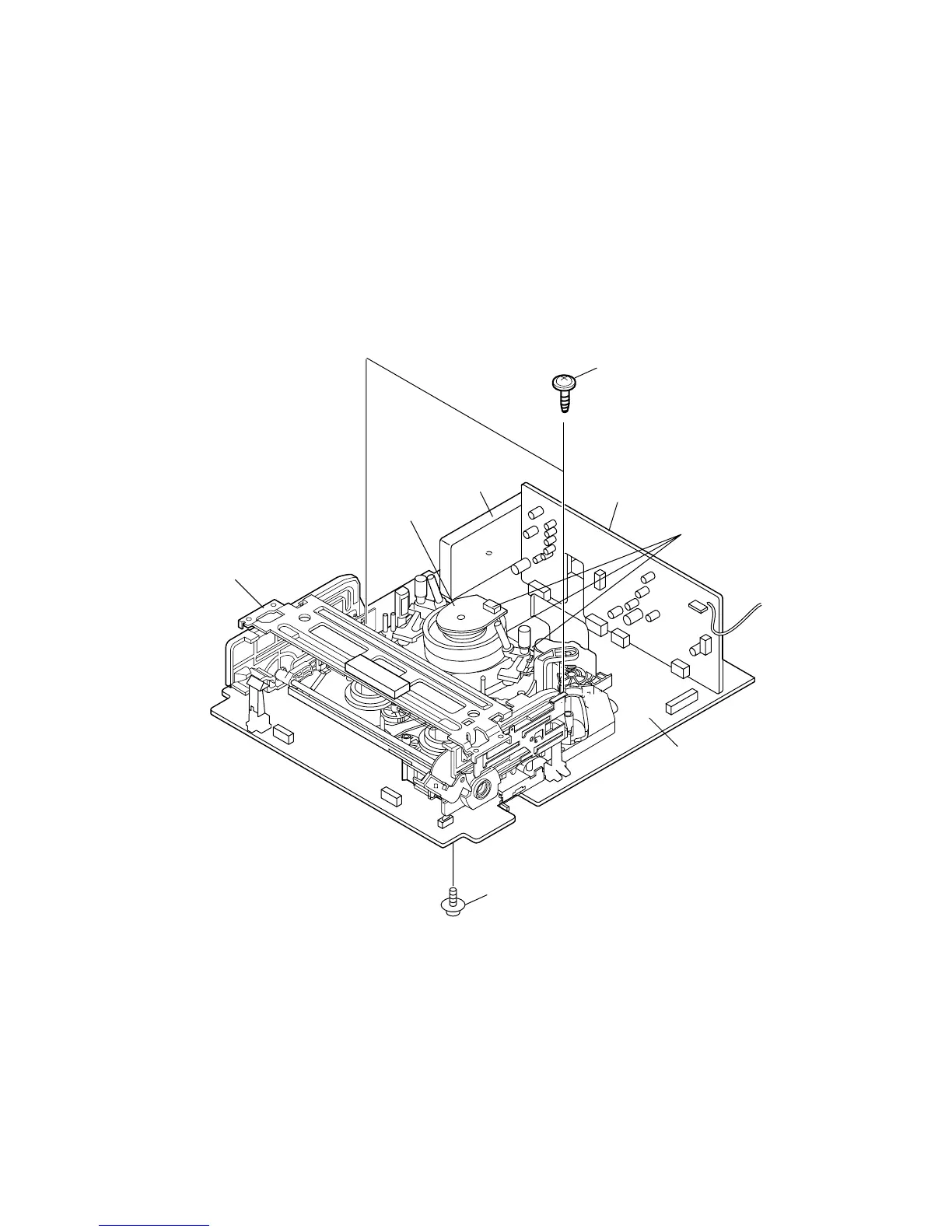

8-4. DISASSEMBLING THE MECHANISM/MAIN PWB ASSEMBLY
1. When removing the mechanism from the main PWB.
Remove the PWB bottom plate 1 screw 1.
Remove the FFC cable (AA, AD, AH) 2 which connect-
ing the PWB and the mechanism.
Take out vertically the mechanism so that it does not
damage the adjacent parts.
2. Removing the mechanism and cassette housing.
Remove 2 screws 3 fixing the cassette housing to the
mechanism, and remove the cassette housing.
To Next Page
