Sharp HT-SB110 User Manual

5
764mm
3
> 32mm
4mm
(5mm)
4
764mm

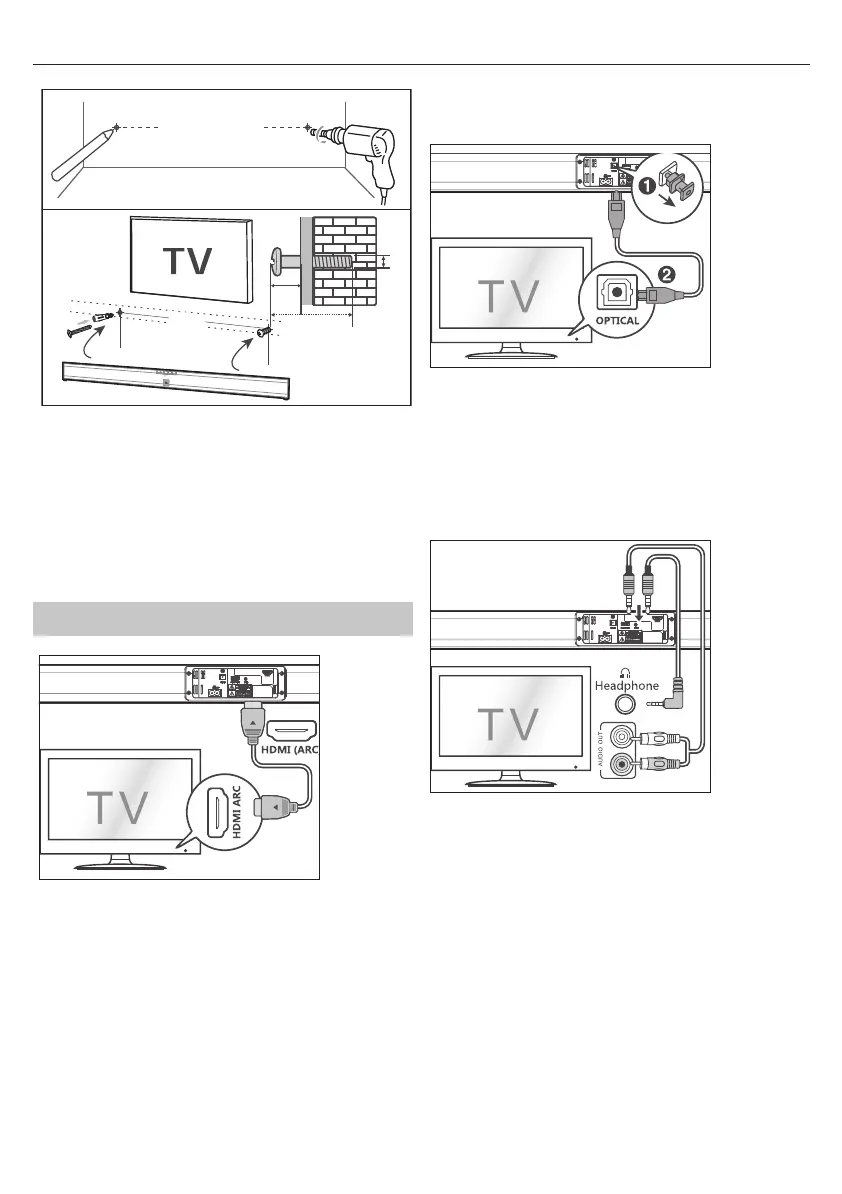

1. Remove the screws from the main unit.
2. Attach the wall brackets to the main unit with the screws removed from
the main unit.
3. Drill 2 parallel holes (Ø 4mm - 8mm each according to wall type) in the
wall. The distance between the holes should be 764 mm.
 Firmly  x 1 dowel into each hole in the wall if necessary.
4. Leave a 5mm gap between the wall and the screw’s head. Lift the unit
with the attached wall brackets over the heads of the screws and slot
into place.
Connections
HDMI ARC input
The ARC (Audio Return Channel) function allows you to send audio
from your ARC- compliant TV to your sound bar through a single HDMI
connection. To enjoy the ARC function, please ensure your TV is both
HDMI-CEC and ARC compliant and set up accordingly. When correctly set
up, you can use your TV remote control to adjust the volume output (VOL
+/- and MUTE) of the sound bar.
 Connect the HDMI cable (not included) from unit's HDMI (ARC) socket to
the HDMI (ARC) socket on your ARC compliant TV. Then press the remote
control to select HDMI ARC.
TIPS:
• Your TV must support the HDMI-CEC and ARC function. HDMI-CEC and
ARC must be set to On.
• The setting method of HDMI-CEC and ARC may di er depending on
the TV. For details about ARC function, please refer to your TV owner’s
manual.
• Only HDMI cables of version 1.4 or higher can support the ARC function.
OPTICAL input
• Remove the protective cap of the OPTICAL socket, then connect an
OPTICAL cable (not included) to the TV’s OPTICAL OUT socket and the
OPTICAL socket on the unit.
TIP:
While in HDMI ARC/OPTICAL mode, if there’s no sound output from the
unit and the HDMI ARC/OPTICAL lights  ashes quickly, you may need to
activate PCM signal output on your source device (eg. TV, DVD or Blu-ray
player).
AUX
A. Use a RCA to 3.5mm audio cable (not included) to connect the TV’s
audio output sockets to the AUX 1 socket on the unit.
B. Use a 3.5mm to 3.5mm audio cable (not included) to connect the TV’s
or external audio device headphone socket to the AUX 1 socket on
the unit.
TIP:
When you use the headphone output on the TV set, you will be able to
adjust the volume level directly using the TV remote control.

Sharp HT-SB110 Specifications

General

RMS rated power	90 W
Audio output channels	2.0 channels
Audio Return Channel (ARC)	Yes
Bluetooth version	4.2
Connectivity technology	Wired & Wireless
Certification	CE (EMC), CB (Safety), ErP (Energy)
Product color	Black
Built-in display	-
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	30 W
Frequency range	60 - 20000 Hz
Subwoofer included	No

Weight and Dimensions

Depth	62 mm
Width	800 mm
Soundbar weight	1350 g
