Sharp KB-6024MS Service Manual

39
KB-6024MS
KB-6024MK
KB-6024MW

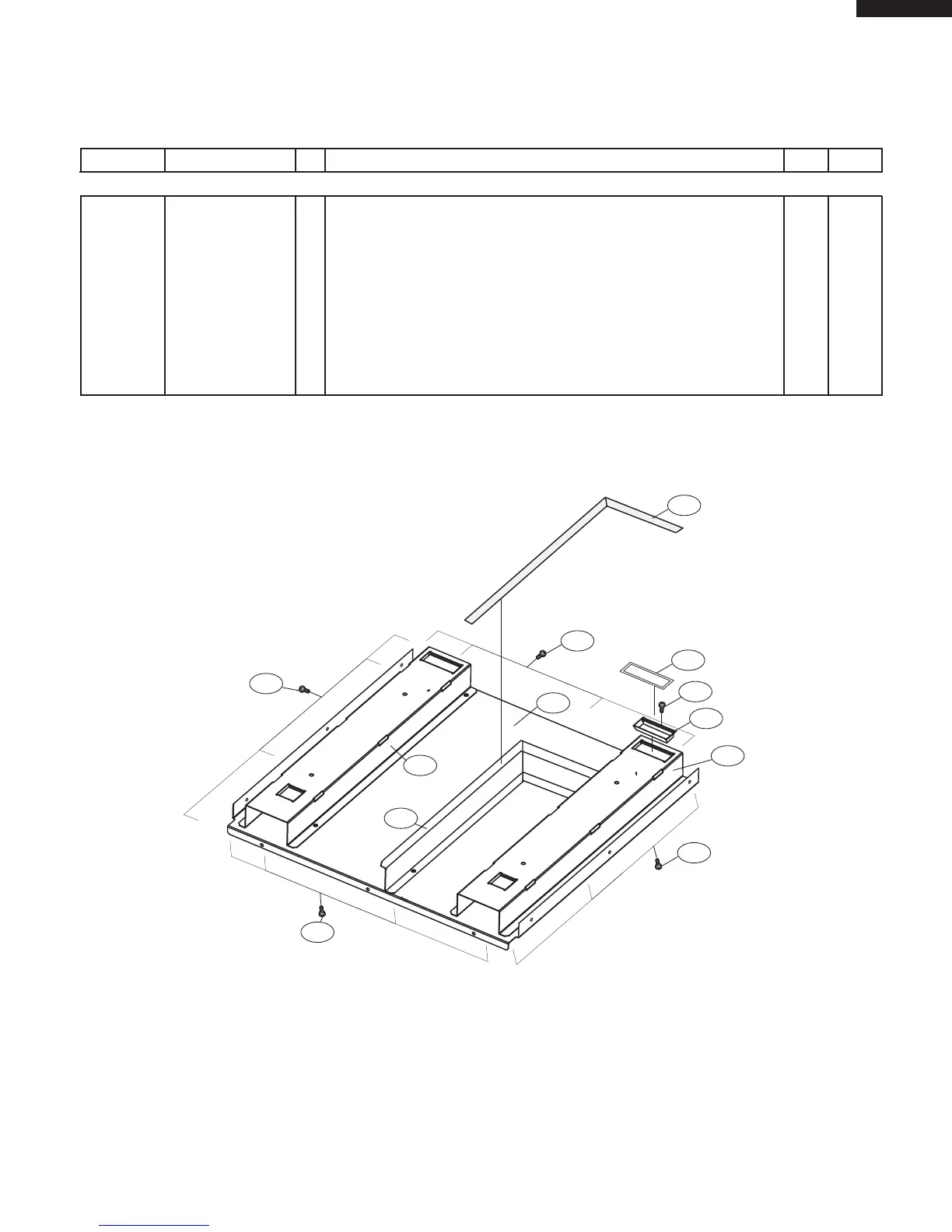

BOTTOM COVER PARTS LIST
Note: The parts marked “∆” may cause undue microwave exposure.
The parts marked “*” are used in voltage more than 250V.
2-7
2-7
2-2
2-4
2-3
2-1
2-7
2-7
2-6
2-5
2-8
2-7
2-1 PCOVPB168MRP0A M Bottom cover [KB6024MS/MK/MW] 1 AN
2-1 PCOVPB141MRP0 M Bottom cover [KB6025MS/MK/MW] 1 AX
2-2 LANG-B043MRP0 M Air guide L [KB6024MS/MK/MW] 1 AQ
2-2 LANG-B027MRP0 M Air guide L [KB6025MS/MK/MW] 1 AL
2-3 LANG-B047MRP0 M Air guide R [KB6024MS/MK/MW] [KB6025MS/MK/MW] 1 AN
2-4 PSKR-B023MRP0 M Partition angle [KB6024MS/MK/MW] 1 AH
2-4 PSKR-B024MRP0 M Partition angle [KB6025MS/MK/MW] 1 AK
2-5 PCUSUB104MRP0 M Bottom cushion A [KB6024MS/MK/MW] 1 AB
2-5 PCUSUB062MRP0 M Bottom cushion A [KB6025MS/MK/MW] 1 AB
2-6 PCUSGB063MRP0 M Bottom cushion B [KB6024MS/MK/MW] [KB6025MS/MK/MW] 1 AB
2-7 XOTS740P12000 M Screw 14 AB
2-8 PDUC-B173MRF0 M Exhaust guide [KB6024MS/MK/MW] [KB6025MS/MK/MW] 1 AP
REF. NO. PART NO. § DESCRIPTION Q'TY CODE
