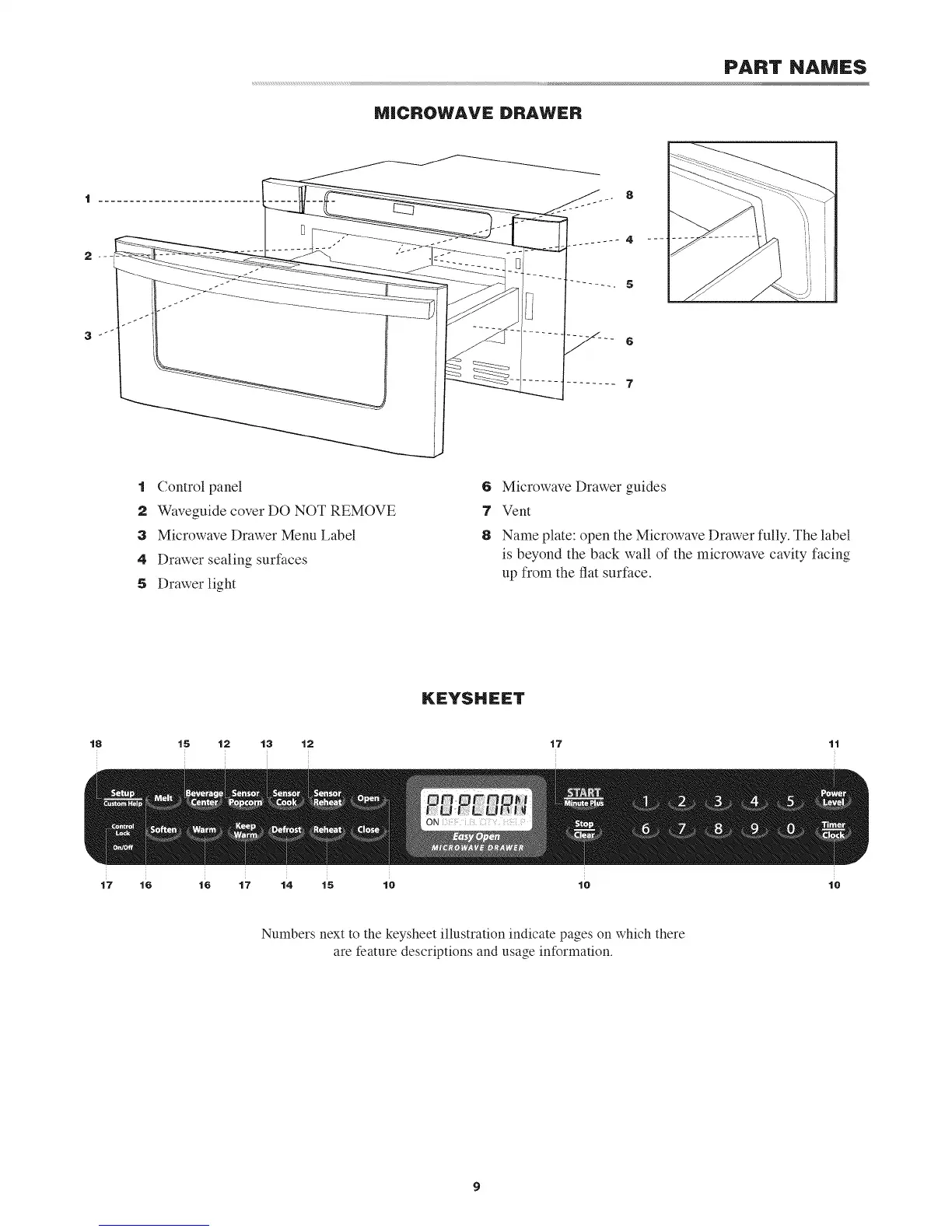

PART NAMES
MICROWAVE DRAWER
I Control panel
2 Waveguide cover DO NOT REMOVE
3 Microwave Drawer Menu Label
4 Drawer sealing surfaces
5 Drawer light
6
7
8
Microwave Drawer guides
Vent
Name plate: open the Microwave Drawer fully. The label
is beyond the back wall of the microwave cavity facing
up from the flat surface.
18
KEYSHEET
15 12 13 12 17 11
17
Numbers next to the keysheet illustration indicate pages on which there
are feature descriptions and usage information.
10
