Sharp LC-19SK24U User Manual

16
LC-19SK24U/U-W
LC-19SB24U/U-W
LC-19SB14U
LC-19D44U

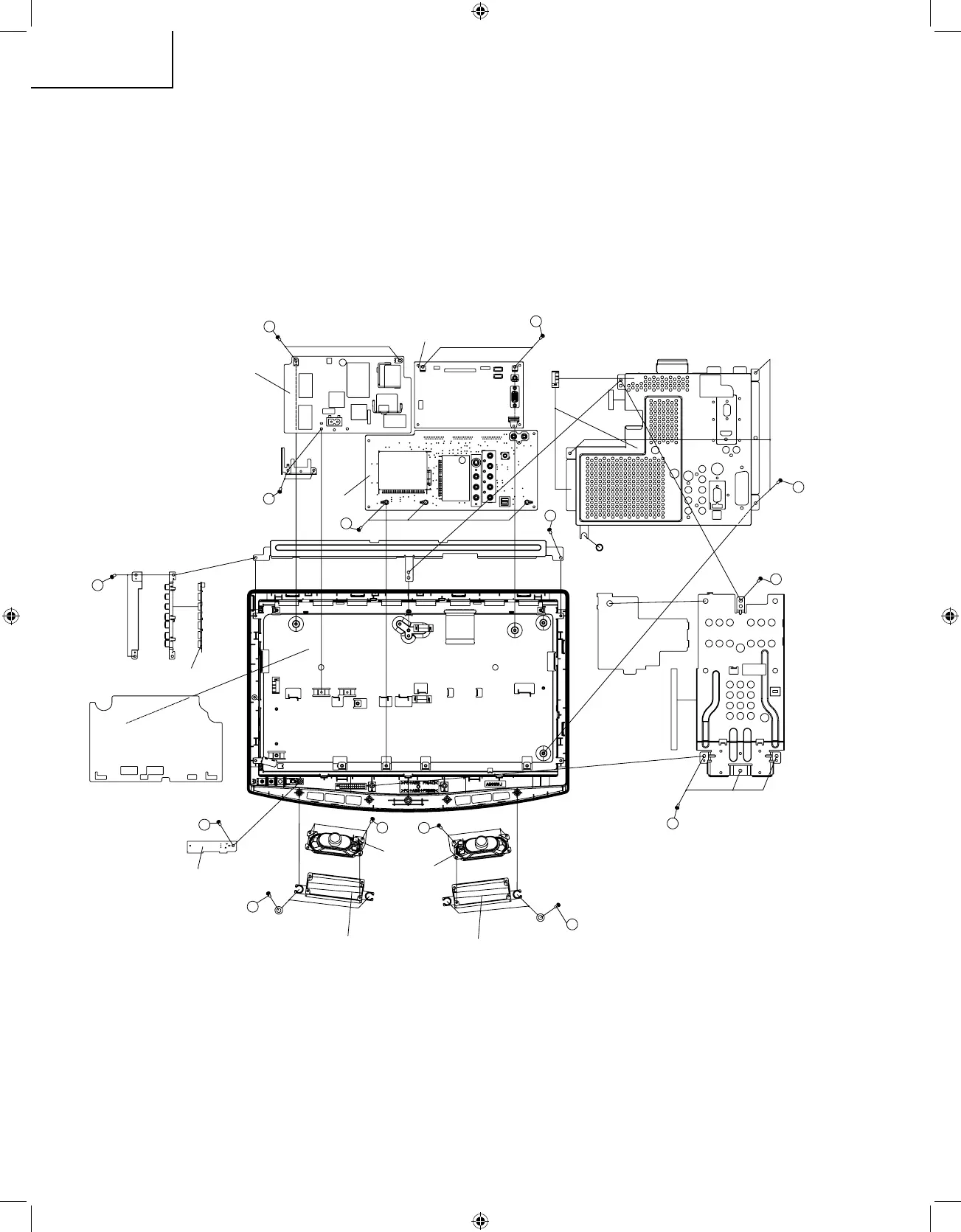

6. Remove the vesa angle fixing screws (4 pcs.).
7. Remove the 3 lock screws from Main Shield.
8. Remove the 9 lock screws from the sub PWB and main PWB and power PWB and AC angle. Detach the sub
PWB and main PWB and power PWB from LCD assembly.
9. Remove the 3 lock screws from the control button assembly and the source PWB Shield.
10. Remove the LED PWB fixing screws (1 pcs.).
11. Remove the 2 lock screws each from the right and left speakers ass’y and take out both the speakers ass’y.
12. Remove the 4 lock screws each from the right and left speaker angle.
Main PWB
Power PWB
Sub PWB
LED PWB
LED PWB
Speaker (L)
Speaker Angle (L)
Speaker Angle (R)
Speaker (R)
8
8
8
9
8
7
6
6
9
10
11
12
12
11
