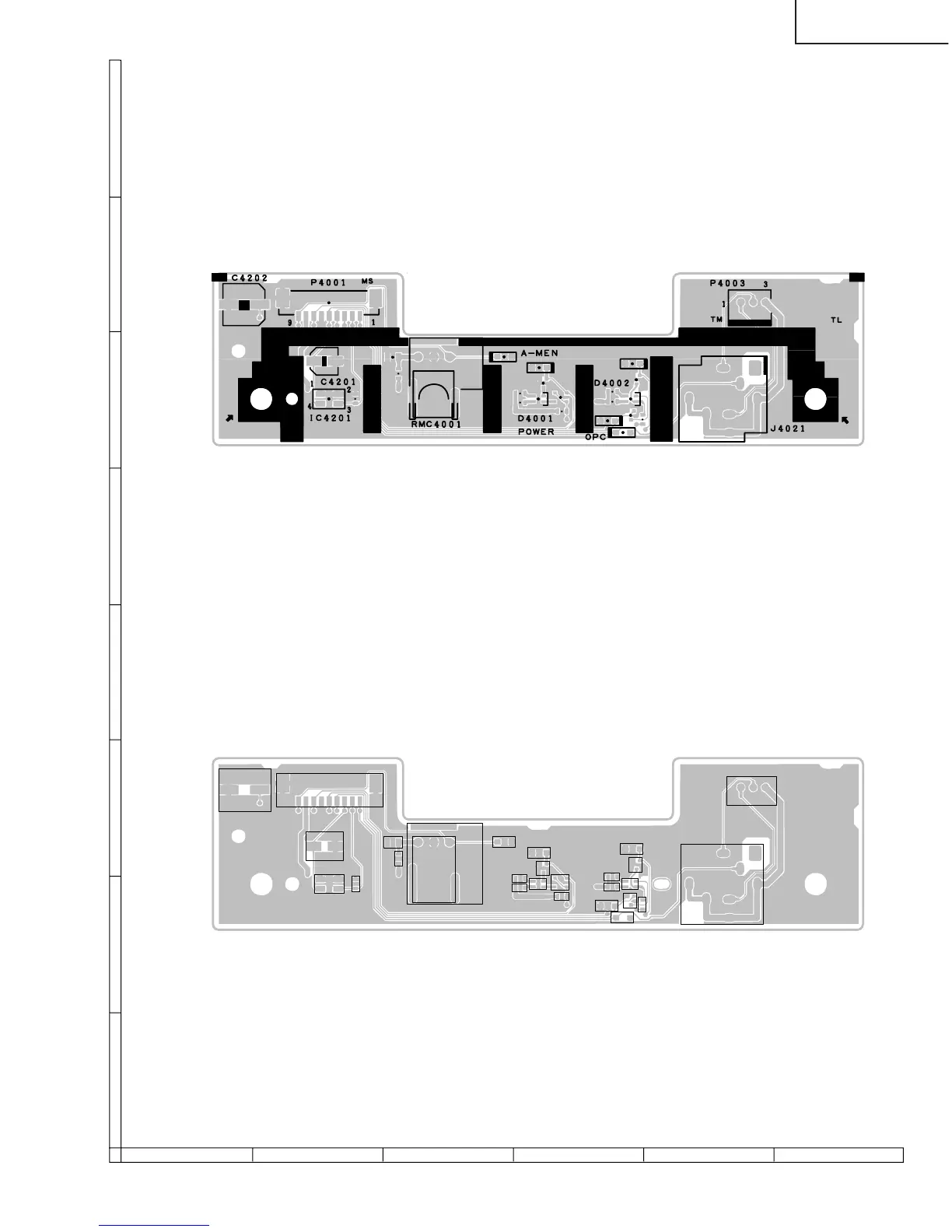

PRINTED WIRING BOARD ASSEMBLIES
R/C, LED Unit (Side-A)
(QPWBSB985WJN3)
R/C, LED Unit (Chip Parts Side-A)
(QPWBSB985WJN3)
C4202
C4201
IC4201
P4001
C4203
C4001
R4006
RMC4001
D4005
R4002
R4001
D4001
D4004
Q4001
Q4002
R4003
D4007
R4005
R4007
D4011
D4002
D4006
Q4004
Q4003
R4009
J4021
P4003
