LC-20SH4U
11
» Precautions in handling the LCD panels
1. Work in a clean room (with humidities below 50%).
2. Be sure to wear an anti-static armband.
3. Handle the panels on an electro-conductive mat.
4. Be careful not to fall, shake and shock the panels.

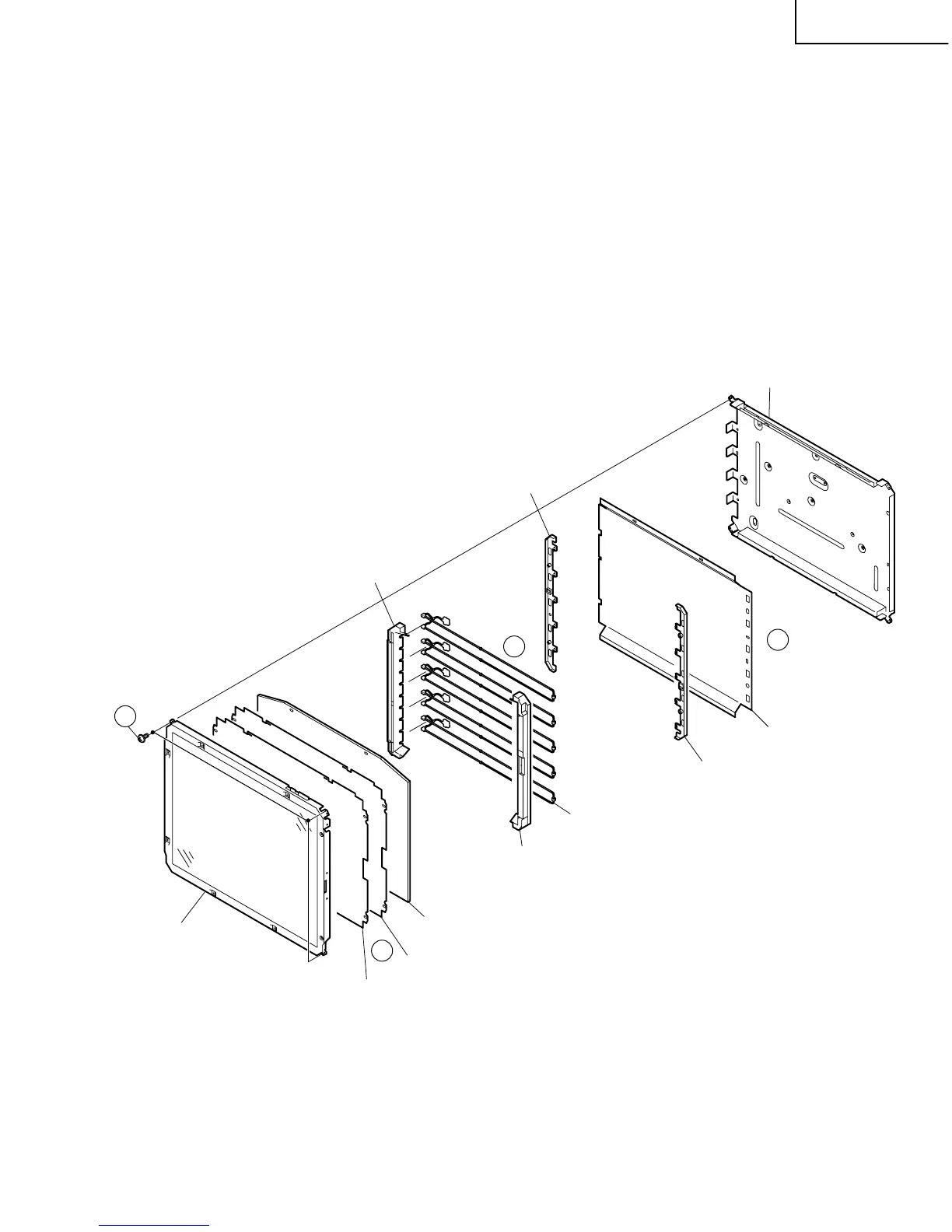

13. Remove the 3 lock screws from the LCD panel and detach the LCD panel.
14. Remove the reflection/deflection sheet, diffusion sheet and diffusion plate.
15. Detach the lamp holders -R (top), -L (top) and -R (bottom), -L (bottom) from the lamp unit.
16. Detach the reflection sheet from the back shield.
13
14
Reflection/deflection Sheet
(PSHEPA231WJZZ)
Diffusion Plate
(PCOVUA048WJZZ)
Diffusion Sheet
(PSHEPA233WJZZ)
Lamp Holder -R (Top)
(LHLDZA415WJKZ)
Lamp Unit, x5
(KLMP-A046WJZZ)
Reflection Sheet
(PSHEPA226WJZZ)
Lamp Holder -L (Bottom)
(LHLDZA412WJKZ)
Lamp Holder -R (Bottom)
(LHLDZA413WJKZ)
Lamp Holder -L (Top)
(LHLDZA414WJKZ)
Back shield
(PSLDMA738WJFW)
20" LCD Panel Unit
15
16
To Next Page
