REMOVING OF MAJOR PARTS

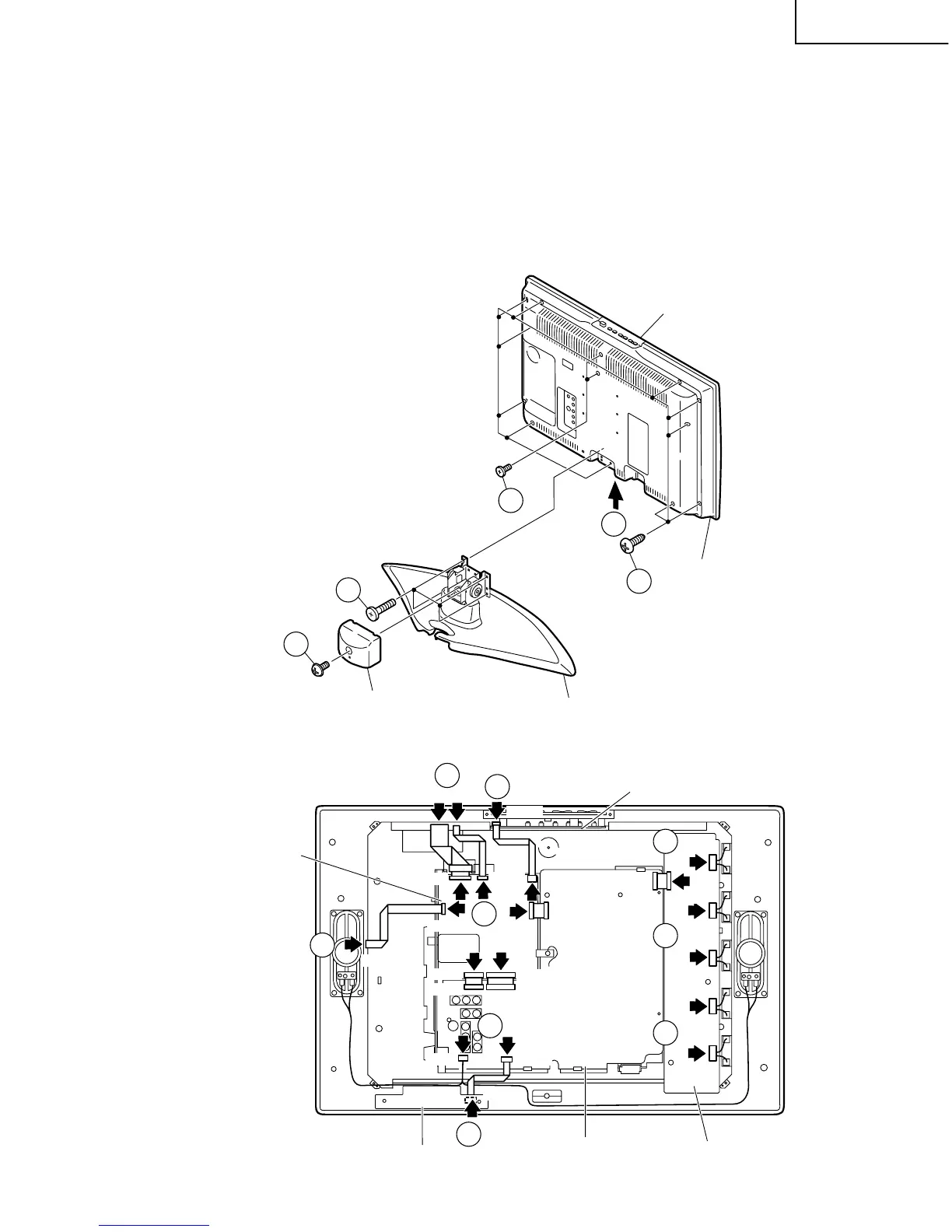

1. Remove the stand cover fixing screws (1 pcs.).
2. Remove the stand fixing screws (4 pcs.).
3. Remove the cabinet B fixing screws (13pcs.).
4. Remove the cabinet B after opening from the direction of an arrow.
5. Detach the connector from each PWB.
Cabinet A
Cabinet B
Stand
Stand cover
4
2
3
3
1
P6703
P6702
P6701
P6700
SC1001
SC1002
SC1000
SC2003
SC1201
P7301
P3902
SC2002
SC2001
P3901
P3301
SC3601
CN1
CN2
CN3
SC4201
SC4001
P6705
P3601
SC6701
5
5
5
5
5
5
5
5
5
Main PWB
R/C,LED PWB
Sub PWB
Inverter PWB
Operation PWB
