REMOVING OF MAJOR PARTS(LC-26LE320)
1. Assy/Panel Removal
Notes: Please put your machine on soft material to avoid to scrape panel when you disassemble it.

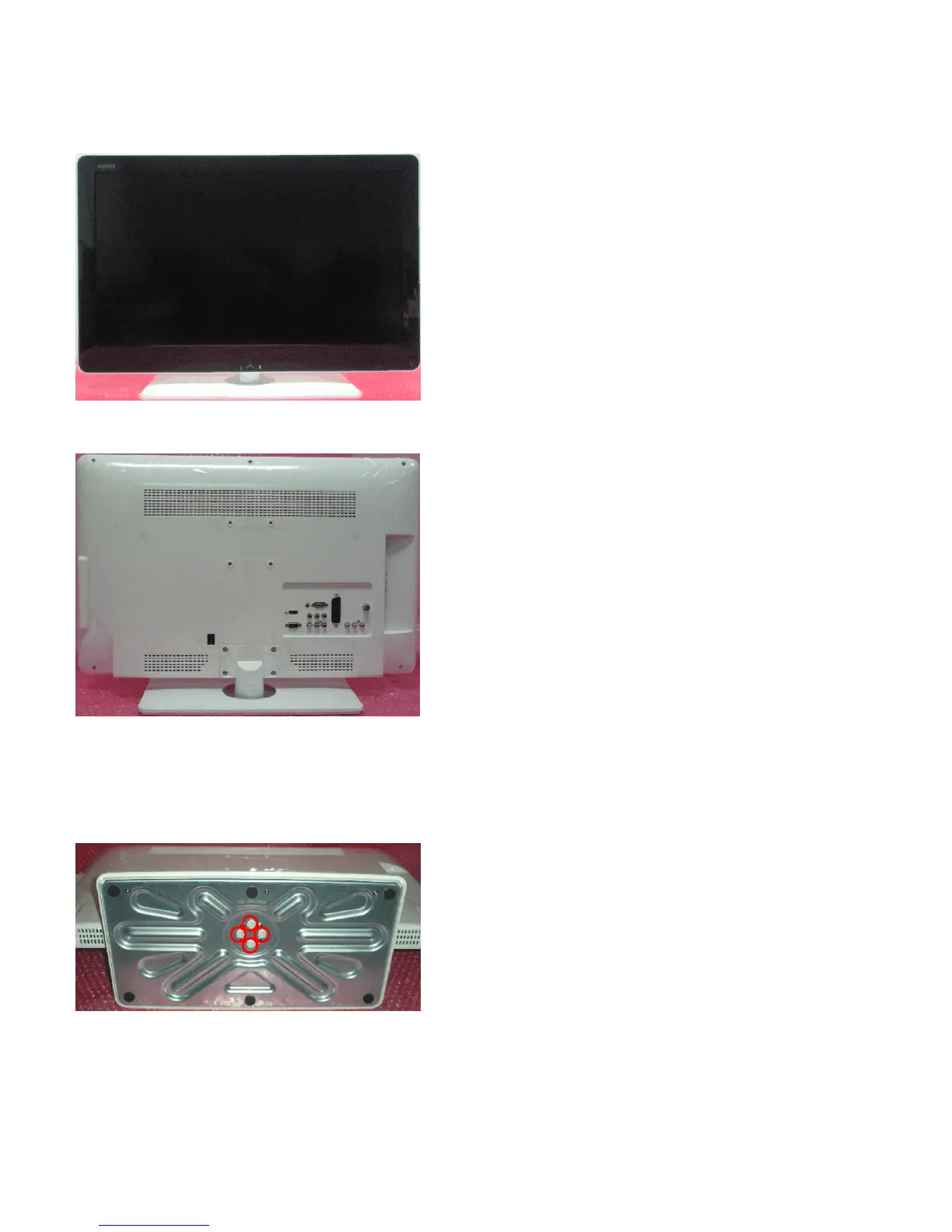

Front view
Fig.1
Back view
Fig.2
Step 1. Remove the Base Assy and Base neck.
1. Remove the Base Assy as Fig.3.
Remove the 4 screws as Fig.3 and pull out the base as Fig.4
Fig.3
2. Remove the 4 screws. Detach the Base neck as Fig.4.
