Sharp LC-24LE150M - Removing Bottom Bracket and PWB Chassis

LC-24LE150M
5 – 2

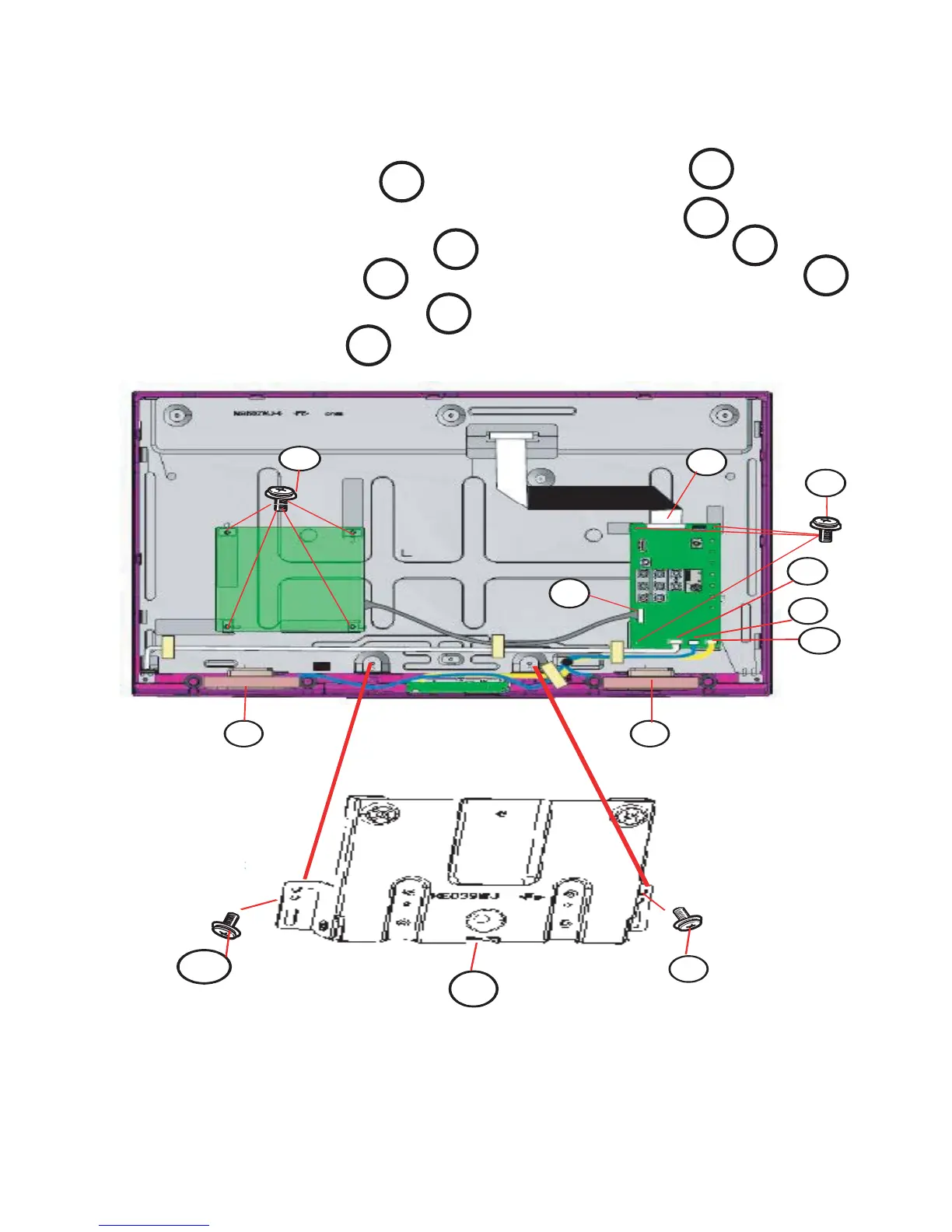

2.Removing of the Bottom Bracket & speaker L/R
and PWB Chassis
1 .Remove the 2 screws and detach the bottom bracket
2 .Disconnect SP wayer & remove speaker from L/R panel bosses
3 .Disconnect LED BL FFC CABLE and disconnect LED /IR WIRE
4 .Disconnect PD wayer and remove 4 screw for remove power board
5. Disconnect LVDS FFC wayer and remove 3 screw
for remove main unit
7
8
9
1
6
3
3
3
4
5
1
2
1
3
4
5
6
2
8
9
7
