LC-24LE150M
9
NO. PARTS CODE
PRICE
RANK
NEW
MARK
PART
RANK
DESCRIPTION

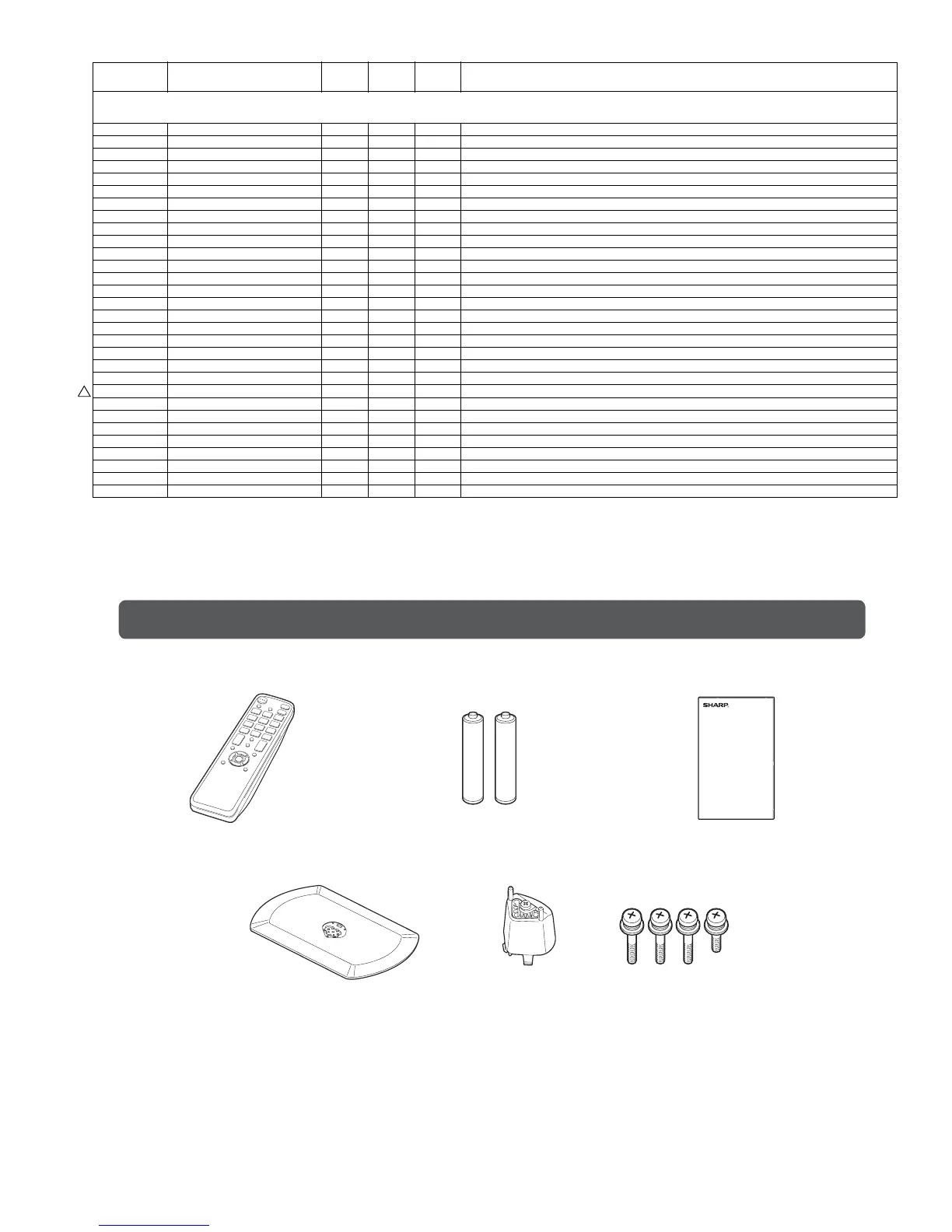

[9] SUPPLIED ACCESSORIES
[8] CABINET AND MECHANICAL PARTS
1 CCABAD031WJ01 AZ V KS-Cab A
1-1 GCABAD031WJ4A V Cab A
1-2 HDECPA134WJ4A AL V Deco Plate
1-3 HDECQB807WJ4A AD V Led Cover
1-4 TLABZD701WJZZ V POP Label
2 GCABBC225WJ4A - V Rear Cabinet Ass'y
2-1 CCABBC225WJ01 BA V Cab B
2-2 JBTN-A997WJ4A AE V Control Button
2-3 LHLDZB746WJN1 AF V Vesa Holder x2
2-4 XEBS830PO8000 AB V Screw For Vesa x2
3 CANGKE039WJ01 AN V KS Bottom Braket
3-1 LANGKD963WJ4W - V Support Bracket
3-2 LANGKE039WJ4W - V Bottom Bracket
3-3 LX-BZA207WJF7 AA V Screw for support bracket x4
4 CCHSMA697WJ01 AV V KS Tray Chassis
4-1 LCHSMA697WJ4W - V Tray Chassis
4-2 LHLDWA044WJK7 AB V WH
4-3 LHLDWA124WJKZ AC V Wire Holder
4-4 PSPAZC705WJZZ V Spacer
5 LHLDWA303WJKA AE V Cable Clamp
6 LX-BZA207WJF7 AA V Screw for PWB x7
!
7 QACCZA048WJN2 AL V AC Cord
8 QCNW-N435WJPZ AG V PD Wire
9 QCNW-N436WJPZ AM V LVDS FFC
10 QCNW-N434WJPZ AG V LED/IR Wire
11 QCNW-N433WJPZ AG V LED BL FFC Cable
12 RSP-ZA651WJPZ V Speaker L/R
13 XBPS730P04000 AA V Screw for KS tray chassis x4
14 XBPS830P06WSO AA V Screw for Cab-B x4
15 XEBS830P10000 AE V Screw for Cab-B x5
Supplied accessories
Remote control unit
“AAA” size battery (
g
2)
Operation manual
Stand unit
tsoPesabdnatS
Screws (
g
4)
X1
X2 X3
X4
X5
X6
