5. LCD Adjustment Process

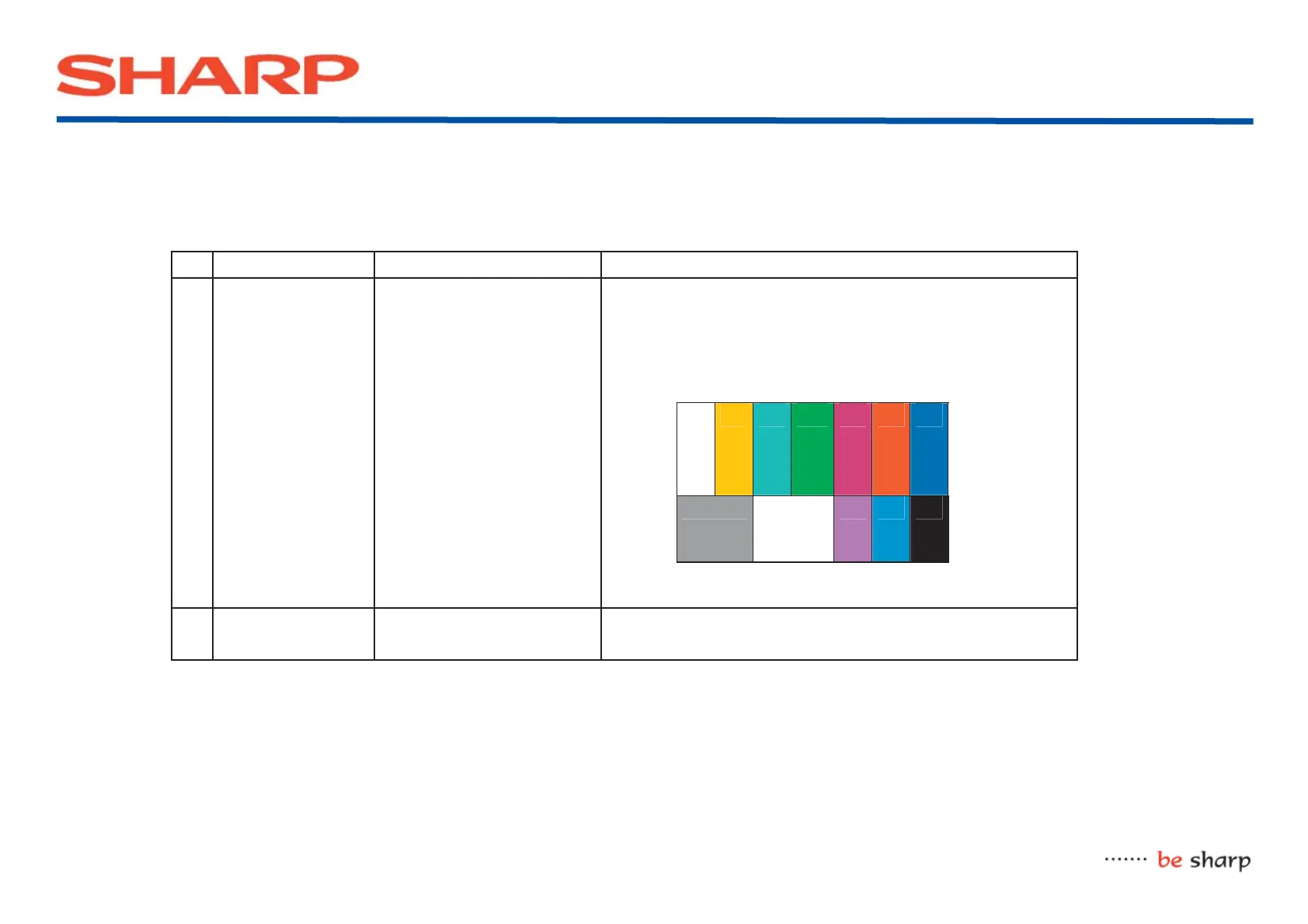

TUNER LEVEL ADJUSTMENT
Adjustment Point Adjustment Conditions Adjustment Point
1 Settings [Signal]
RF Signal
Feed the PAL color bar signal (E-12CH) to TUNER. Sig-
nal level: 55 ± 1dB μV (75Ω LOAD)
[TUNER]
2 Auto adjustment
performance
Adjustment Process (See
Service Manual)
Bring the cursor on [TUNER ADJ] and press [OK].
[TUNER ADJ OK] appears when fi nished.
↑ 100% white
To Next Page
