6.4 TFTP (network) Upgrade
A Upgrade Tools
B Connection Mode
Connect main board net port and PC net port with network cable.
Connect main board VGA port and PC USB port with serial port cable.
Serial port board B.CNSISP7A
4PIN converted cable

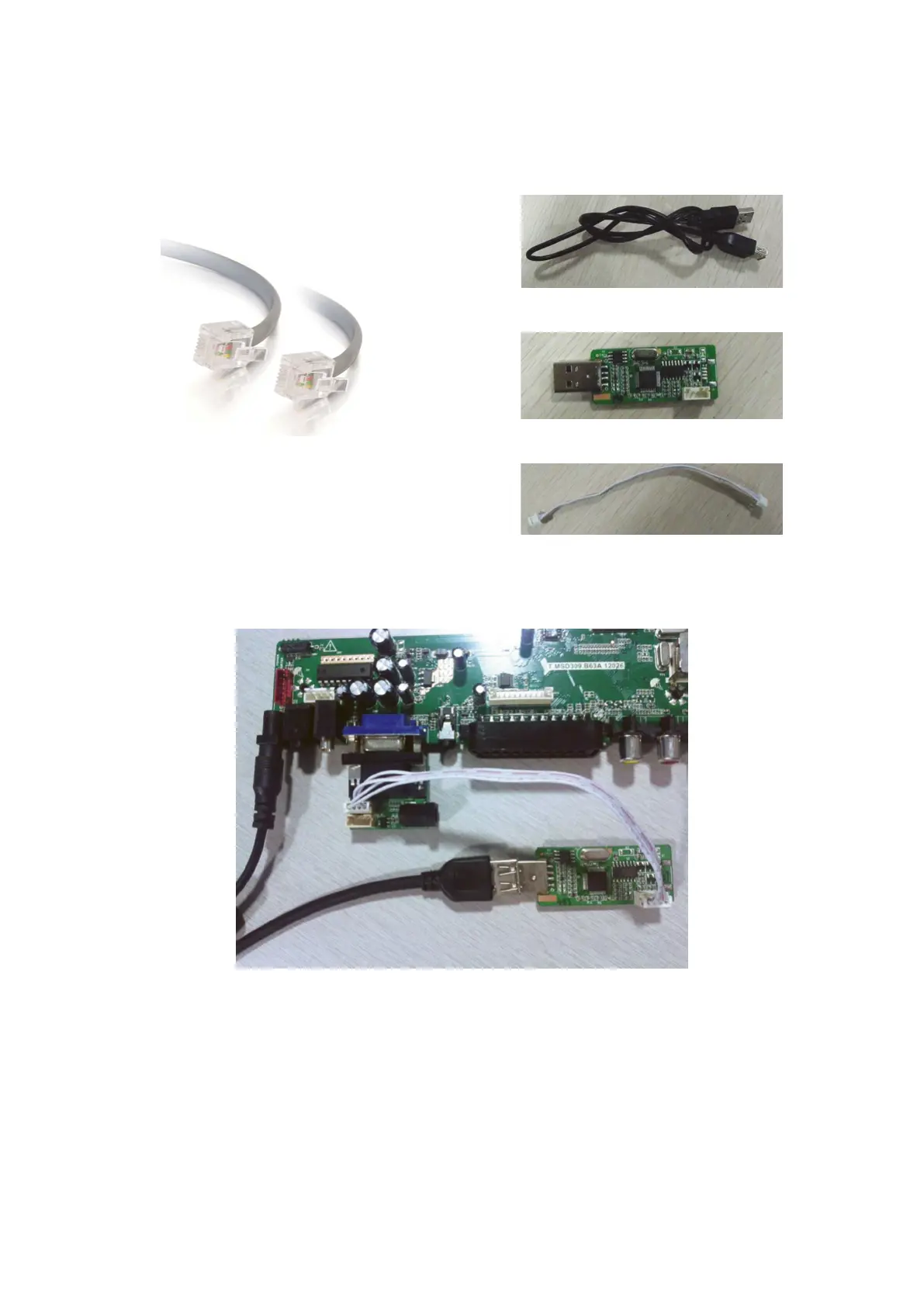

Connect the Serial port boardand VGA convert board as shown below:
USB extension cordnetwork cable

Sharp LC-32CHE6242E Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	32 \
Display brightness	300 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Contrast ratio (dynamic)	1000000:1
Display diagonal (metric)	81 cm
Motion interpolation frequency	400 Hz
Motion interpolation technology	Active Motion 400
3D	No
Power consumption (average)	31 W
Tuner type	Analog & digital
Analog signal format system	PAL, SECAM
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2
Video apps	YouTube
Internet TV	-
Lifestyle apps	Facebook, Twitter
Audio decoders	DTS, Dolby Digital
RMS rated power	16 W
Number of speakers	2
HDMI ports quantity	3
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Consumer Electronics Control (CEC)	Aquos Net+
Product color	Black
Panel mounting interface	400 x 200 mm
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (max)	70 W
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth (with stand)	168 mm
Height (with stand)	461.3 mm
Weight (with stand)	4500 g
Depth (without stand)	68.3 mm
Width (without stand)	728.3 mm
Height (without stand)	425.9 mm
Weight (without stand)	4300 g
