Sharp LC-32CHE6242E Service Manual

89
Notes:
Direct Connect network cable between PC and MB To Upgrade is available in the version higher than
svn5215.

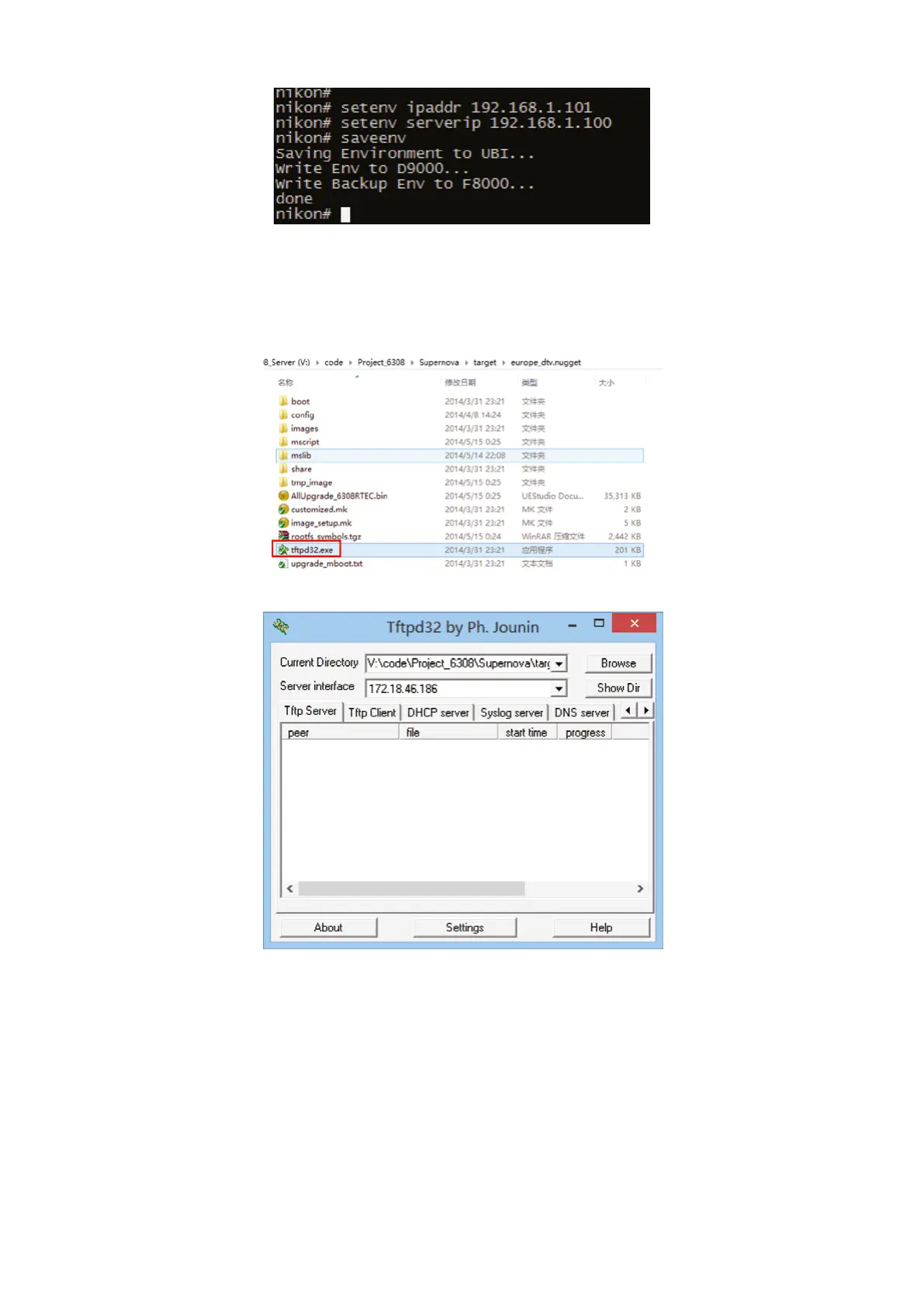

• Run the tftpd32.exe in your upgrading folder.
After setting IP, enter the following command to upgrade the corresponding program.
Upgrade Mboot: mstar upgrade_mboot.txt
Reboot: reset
Re-enter command to set IP.
Upgrade main program: mstar mscript/auto_update.txt
Notes:
auto_update.txt will clear factory burning parameter of KEY/MAC, please use it cautiously.
upgrade_mboot.txt and auto_update.txt are text les, engineer can refer to the two text les when
entering corresponding upgrade command.

Sharp LC-32CHE6242E Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	32 \
Display brightness	300 cd/m²
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Contrast ratio (dynamic)	1000000:1
Display diagonal (metric)	81 cm
Motion interpolation frequency	400 Hz
Motion interpolation technology	Active Motion 400
3D	No
Power consumption (average)	31 W
Tuner type	Analog & digital
Analog signal format system	PAL, SECAM
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2
Video apps	YouTube
Internet TV	-
Lifestyle apps	Facebook, Twitter
Audio decoders	DTS, Dolby Digital
RMS rated power	16 W
Number of speakers	2
HDMI ports quantity	3
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Consumer Electronics Control (CEC)	Aquos Net+
Product color	Black
Panel mounting interface	400 x 200 mm
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (max)	70 W
Power consumption (standby)	0.5 W

Weight and Dimensions

Depth (with stand)	168 mm
Height (with stand)	461.3 mm
Weight (with stand)	4500 g
Depth (without stand)	68.3 mm
Width (without stand)	728.3 mm
Height (without stand)	425.9 mm
Weight (without stand)	4300 g
