HDMI cable
(commercially available)
14
Preparation
PC
HDMI equipment

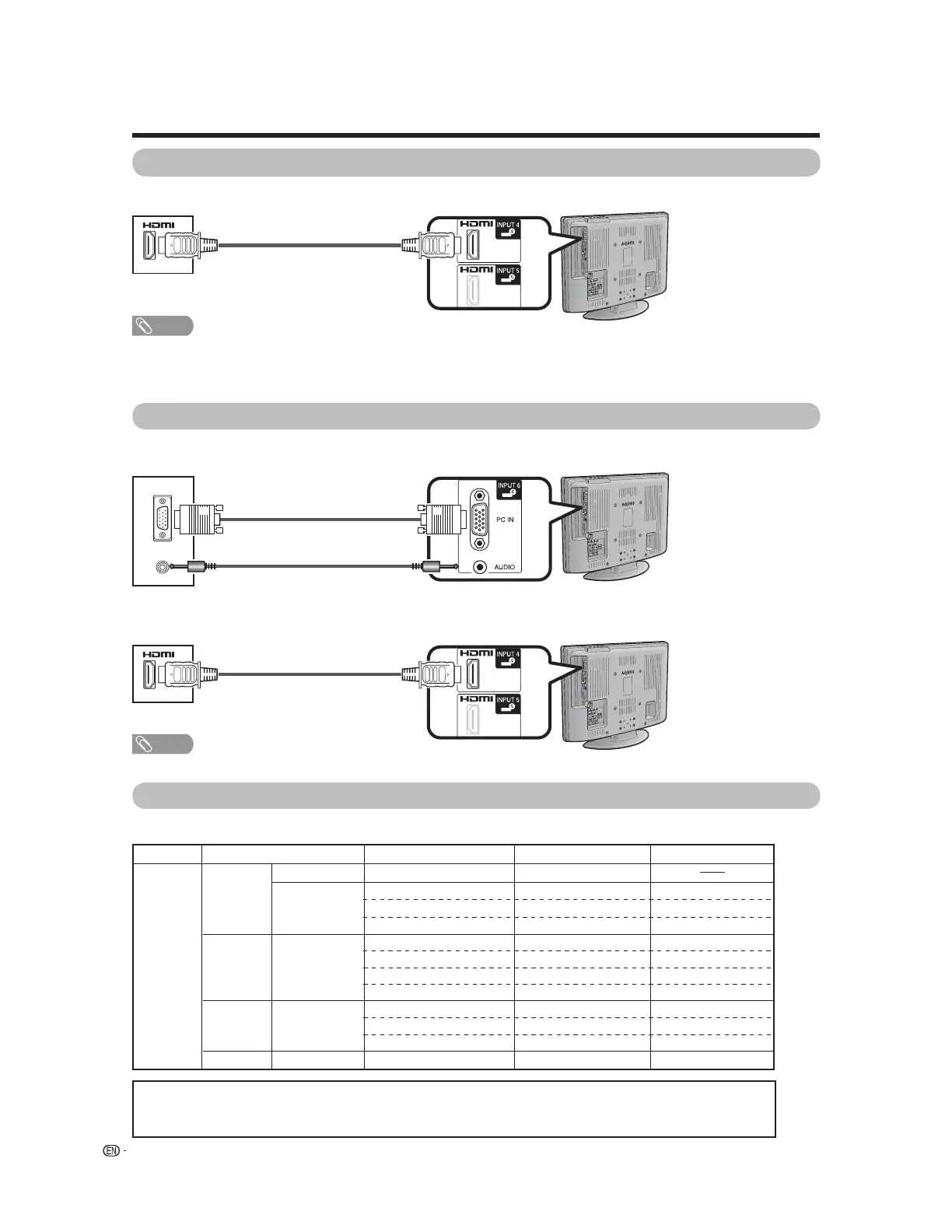

PC compatibility chart
It is necessary to set the PC correctly to display XGA and WXGA signal. Refer to page 37 to set PC input signals.
DDC is a registered trademark of Video Electronics Standards Association.
Power Management is a registered trademark of Sun Microsystems, Inc.
VGA and XGA are registered trademarks of International Business Machines Co., Inc.
PC Horizontal Frequency VESA StandardResolution Vertical Frequency
Connecting a PC
When connecting to a PC with an analog RGB terminal. (INPUT 6)
RGB cable
(commercially available)
NOTE
• When using an HDMI-DVI conversion cable, input the audio signal to AUDIO terminal of INPUT 5.
• When receiving an incompatible signal, such as 1080p, the message below appears without the image on the screen.
For an incompatible video signal: “An incompatible video signal has been received. Check the output device settings.”
For an incompatible audio signal: “An incompatible audio signal has been received. Check the output device settings.”
HDMI cable
(commercially available)
Connecting HDMI equipment
You can use the INPUT 4 or INPUT 5 terminal when connecting HDMI equipment.
Ø 3.5 mm stereo minijack
cable (commercially available)
When connecting to a PC with an HDMI terminal. (INPUT 4 or 5)
PC
NOTE
• The HDMI terminals only support digital signal.
To Next Page
