6. ASSY / PANEL REMOVAL
REMOVING OF MAJOR PARTS
LC-32LD164–LC-32LD165–LC-32LD165RU–LC-32LD166
13
CHAPTER 2. REMOVING OF MAJOR PARTS
[1] ASSY/PANEL REMOVAL
Note: Put the TV face down on a safe surface that is covered by a soft and smooth cloth to avoid damaging LCD Panel.

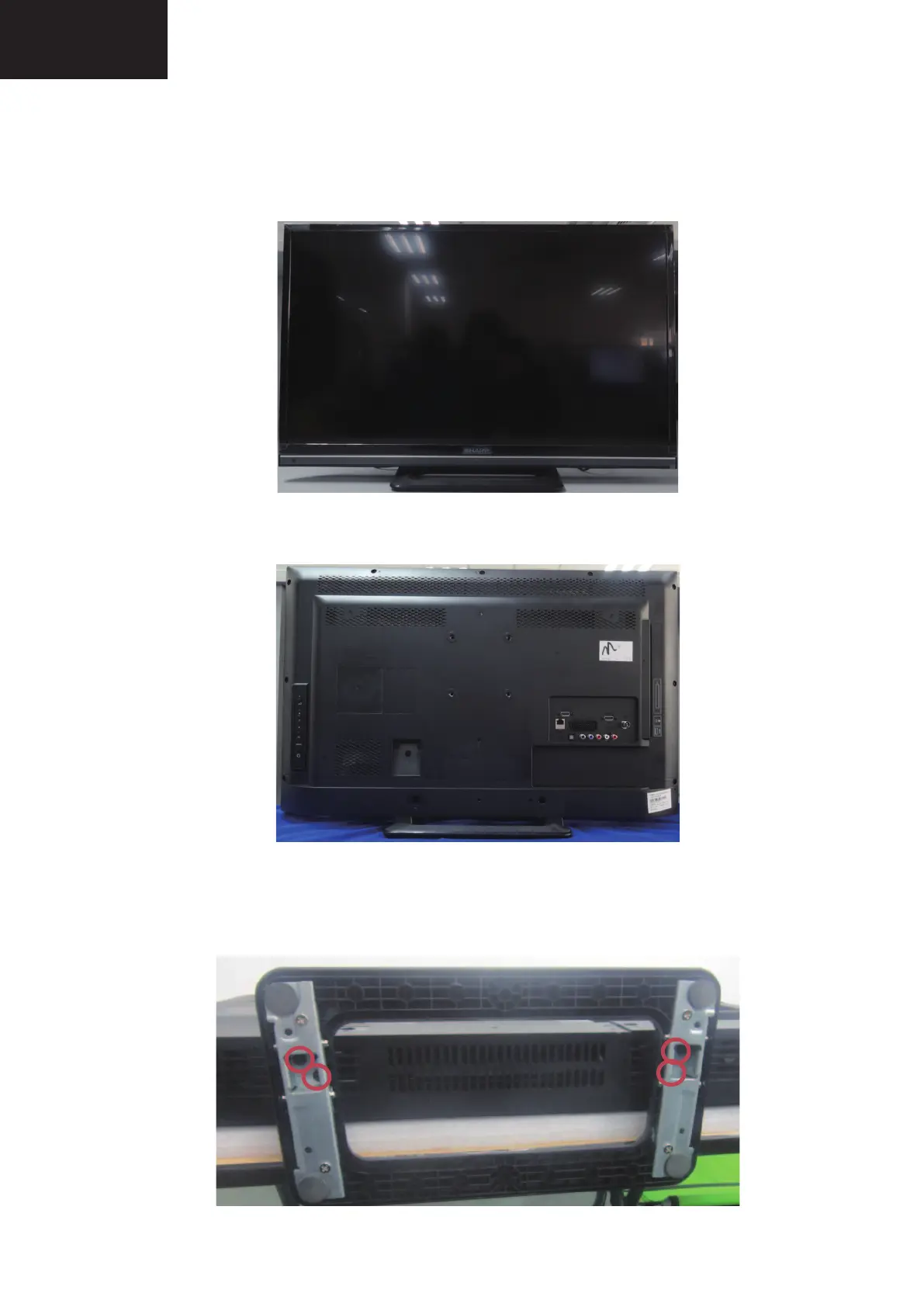

Front View
Fig 1
Back View
Fig 2
Step 1. Remove the base.
Remove 4 screws as fig 3 and pull out the base.
Fig 3
