18
LC-32LD164
LC-32LD165
LC-32LD166
LC-32LD164–LC-32LD165–LC-32LD165RU–LC-32LD166
15

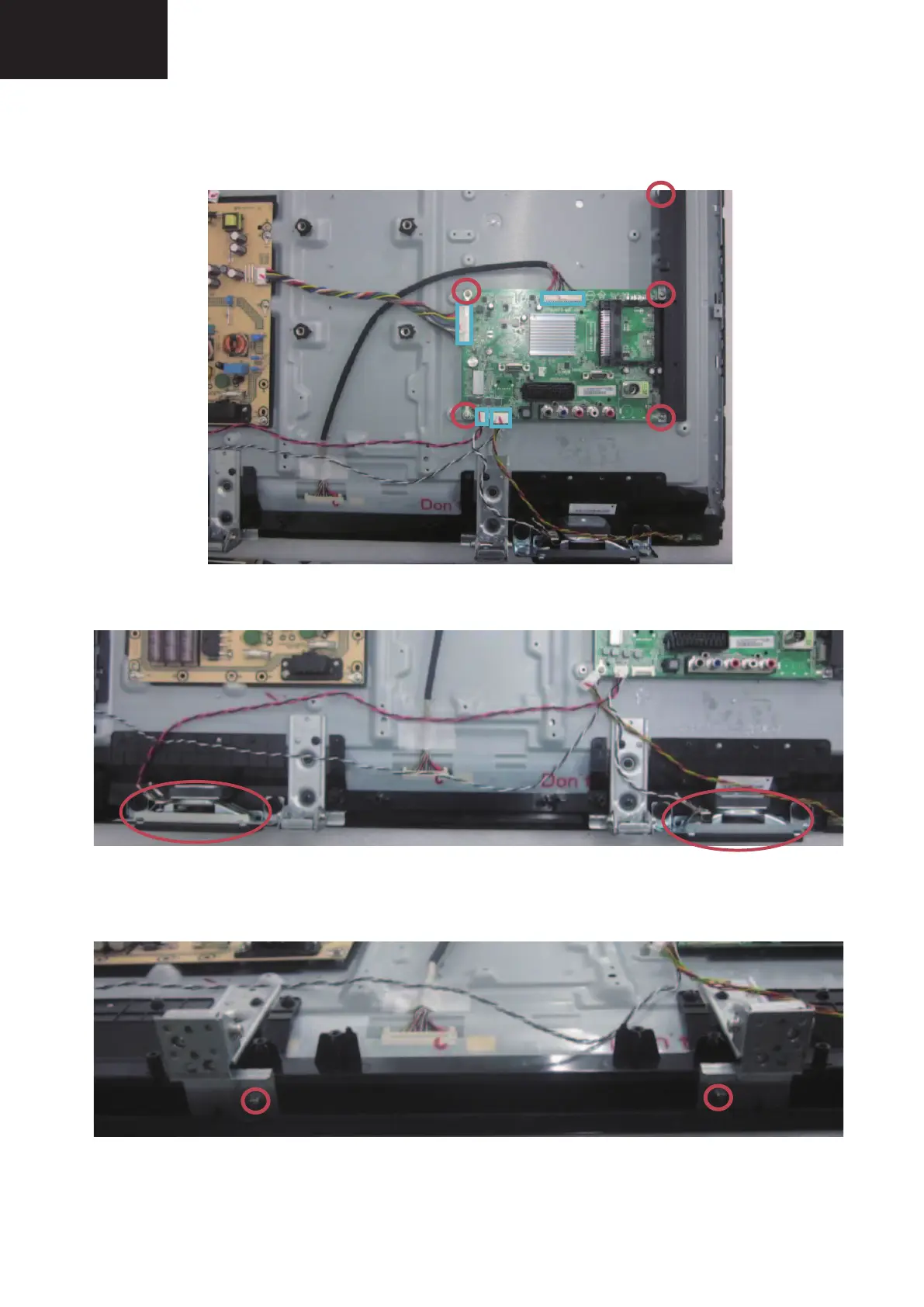

Step 4. Remove the scaler board and BKT.
Remove 5 screws and unplug 4 cables as Fig 6.
Fig 6
Step 5. Remove the speakers and connection wire as Fig 7.
Fig 7
Step 6. Remove the bracket, keypad.
Remove 8 screws as Fig 8.
