7
Attach the Wall Mount Bracket (not included)
Before you begin the third-party manufacturer instructions, be
sure to do the following things:
1. Place the TV face down on a flat, clean, safe and cushioned
surface.
2. Remove the TV stand if you already attached it.
3. Place the spacers (not included) in the corresponding bracket
holes.
CAUTION:
• Whenyouattachthemount,besureto usethespacers
(provided by the third-party manufacturer) between the TV
and the bracket.
TopreventinternaldamagetotheTVandensureit
ismountedsecurely,besuretousefixingscrews
(not provided) that are 8 - 9.5 mm (32") / 9.5 - 11.5 mm
(43"/50"/55") in length when measured from the attaching
surface of the mounting hook.
9.5 - 11.5 mm (43"/50"/55″)
8 - 9.5 mm (32")
Wall mount hole pattern
VESA (mm)
100 × 100 (for 32″)
200 × 200 (for 43″/55″)
200 × 400 (for 50″)
Wall mount screw size (mm)
M4 (for 32″)
M6 (for 43″/50/″55″)
Follow instructions provided with the Wall mount bracket.
To complete the installation, please contact the wall-mount
manufacturer or the retailer from which you purchased the TV.
The selected screws are 8 - 9.5 mm / 9.5 - 11.5 mm in length
when measured from the attaching surface of the rear cover.
The diameter and length of the screws differ depending on the
Wall mount bracket model.
NOTE: The diameter and length of the screws differ depending
on the wall mount bracket model.

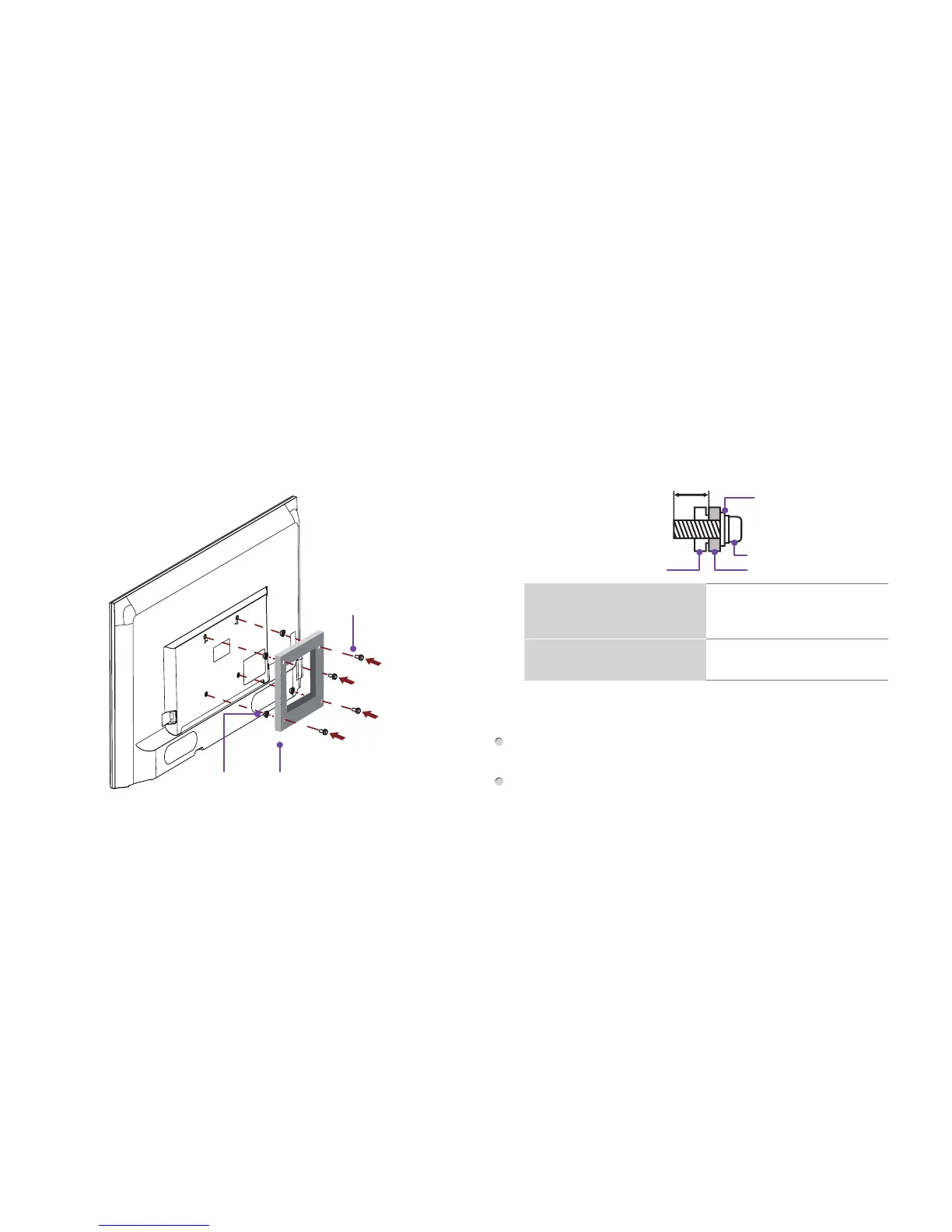

Screw
(not provided)
Bracket
(not provided)
Spacer
(not provided)
Rear cover of the TV Spacer
Screw
Wall mount bracket
