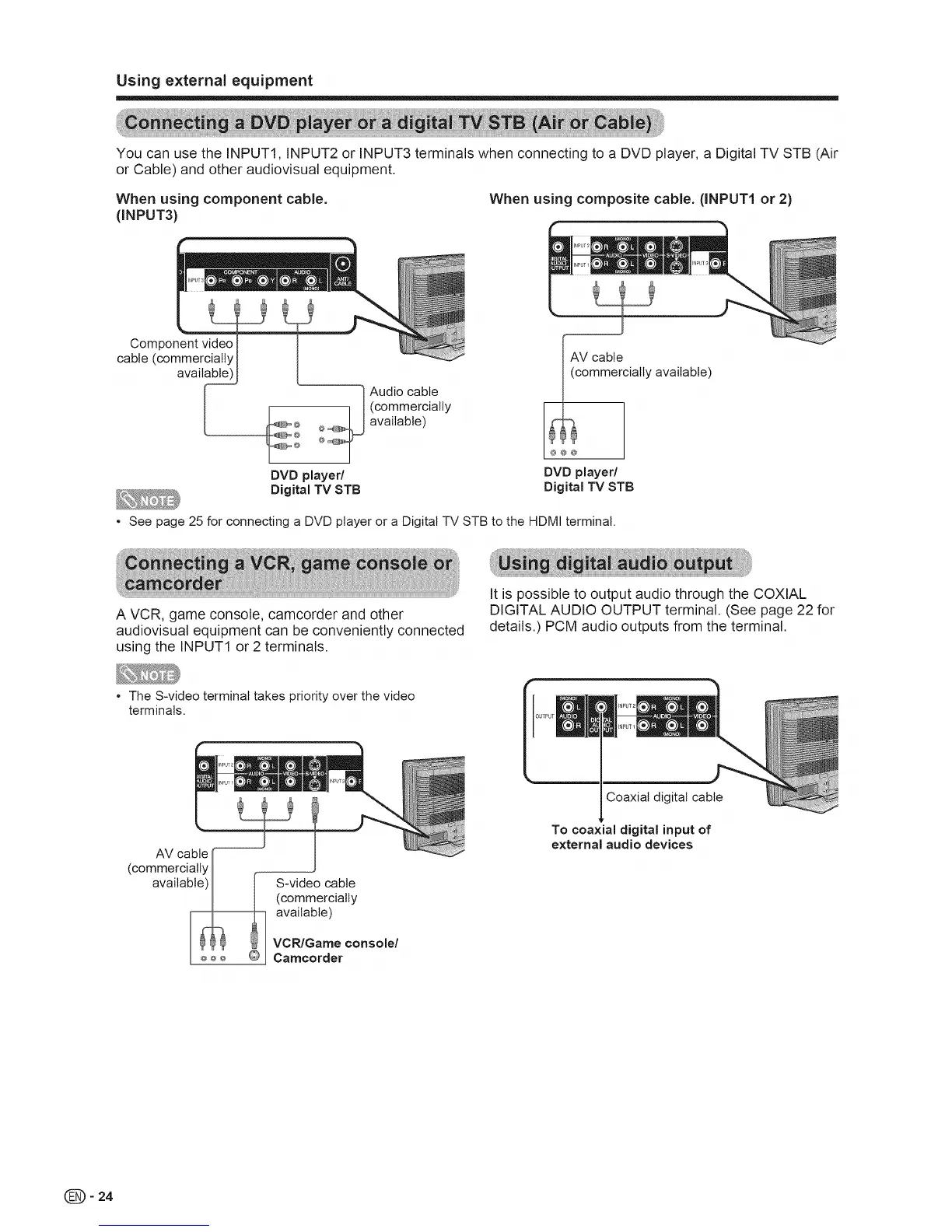

Using external equipment
You can use the INPUT1, INPUT2 or INPUT3 terminals when connecting to a DVD player, a Digital TV STB (Air
or Cable) and other audiovisual equipment,
When using component cable.
(INPUT3}
When using composite cable. (INPUT1 or 2}
Component video
cable (commercially
available
DVD played
Digital TV STB
Audio cable
(commercially
available)
AV cable
(commercially available)
DVD player/
Digital TV STB
• See page 25 for connecting a DVD player or a Digital TV STB to the HDMI terminal.
A VCR, game console, camcorder and other
audiovisual equipment can be conveniently connected
using the INPUT1 or 2 terminals,
It is possible to output audio through the COXIAL
DIGITAL AUDIO OUTPUT terminal, (See page 22 for
details,) PCM audio outputs from the terminal,
• The S-video terminal takes priority over the video
terminals.
AV cable
(commercially
available) _ _
©
S-video cable
(commercially
available)
VCPJGame console/
Camcorder
To coa×ial digital input of
e×ternal audio devices
=24
