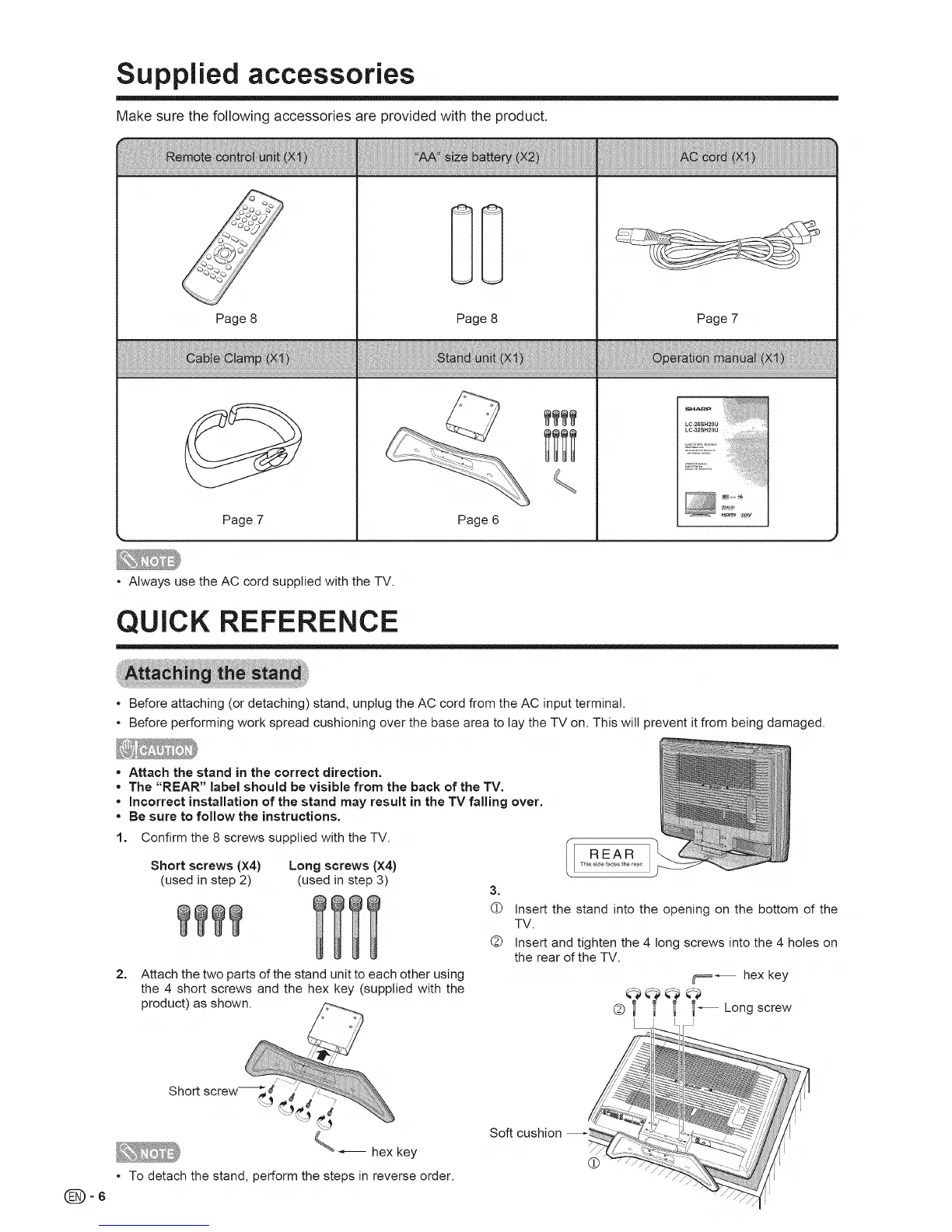

Supplied accessories
Make sure the following accessories are provided with the product.
Page 8 Page 8 Page 7
Page 7
llll
Page 6
!
i
i
i
i
i
• Always use the AC cord supplied with the TV.
QUICK REFERENCE
• Before attaching (or detaching) stand, unplug the AC cord from the AC input terminal.
Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged.
Attach the stand in the correct direction.
The "REAR" label should be visible from the back of the TV.
* Incorrect installation of the stand may result in the TV falling over.
* Be sure to follow the instructions.
1. Confirm the 8 screws supplied with the TV.
2.
Short screws (X4) Long screws (X4)
(used in step 2) (used in step 3)
Attach the two parts of the stand unit to each other using
the 4 short screws and the hex key (supplied with the
product) as shown.
3.
Q
®
Insert the stand into the opening on the bottom of the
TV.
Insert and tighten the 4 Songscrews into the 4 holes on
the rear of the TV.
¢==_ hex key
I I
Long screw
Short screw _4
_%_ hex key
• To detach the stand, perform the steps in reverse order.
Soft cushion
To Next Page
