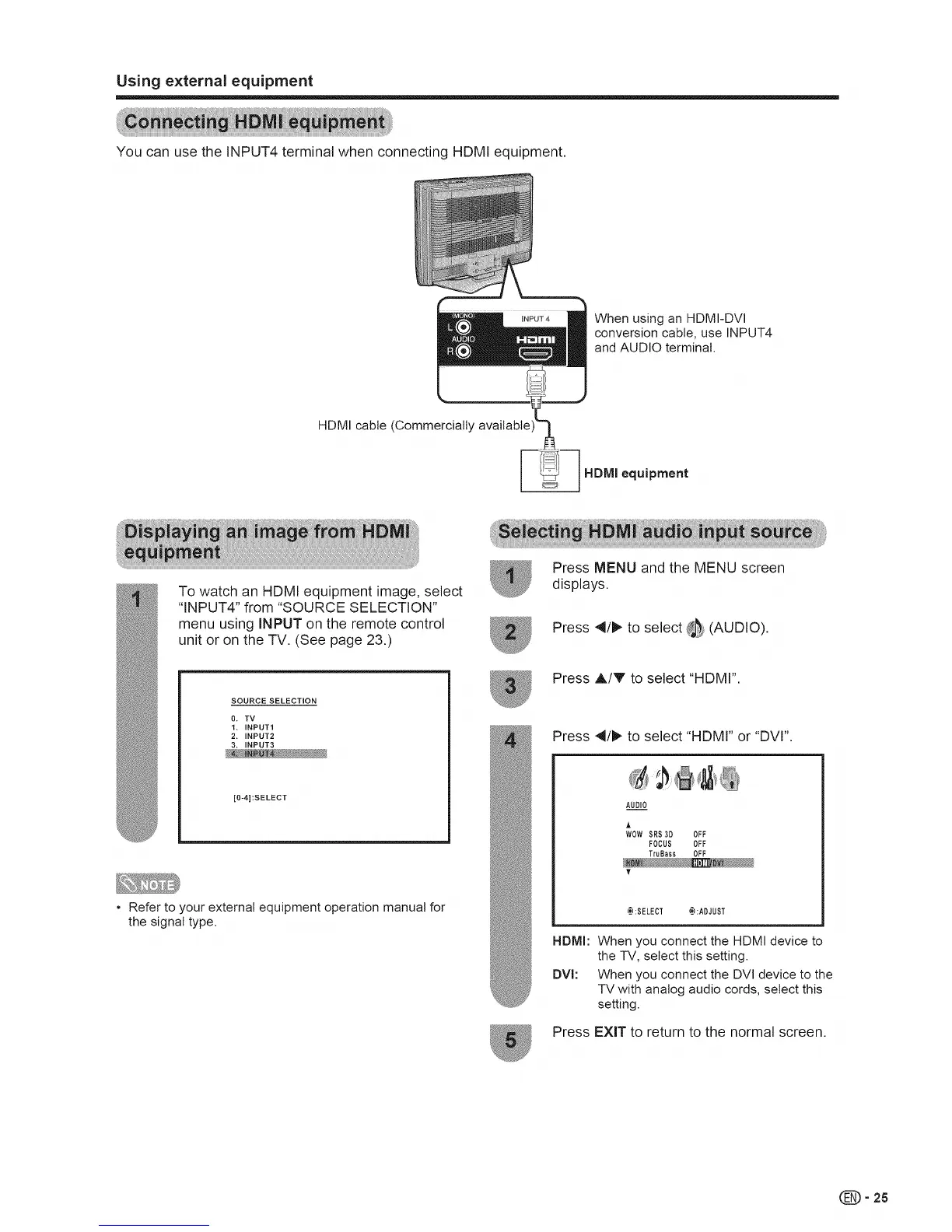

Using external equipment
You can use the INPUT4 terminal when connecting HDMI equipment.
INPUT 4
When using an HDMI-DVI
conversion cable, use INPUT4
and AUDIO terminal.
HDMI cable (Commercially available
To watch an HDMI equipment image, select
"INPUT4" from "SOURCE SELECTION"
menu using INPUT on the remote control
unit or on the TV. (See page 23.)
SOURCE SELECTION
0. TV
1. INPUT1
2. INPUT2
3. INPUT3
[0-4]:SELECT
• Refer to your external equipment operation manual for
the signal type.
Press MENU and the MENU screen
displays.
Press 4/_ to select _ (AUDIO).
Press A/V to select "HDMI".
Press 4/_ to select "HDMr' or "DVl".
AUDIO
A
WOW SRS3D OFF
FOCUS OFF
TruBass OFF
T
_:SELECT L_qADJUST
HDMI: When you connect the HDMI device to
the TV, select this setting.
DVI: When you connect the DVl device to the
TV with analog audio cords, select this
setting.
Press EXIT to return to the normal screen.
(_)= 25
