6. Remove the Stand Bottom Cover.
7. Disconnect the [FB] connector. Remove the 2 lock screws and detach the Fan Angle C Ass’y.
8. Remove the 4 lock screws and detach the SUS Angle (L)(R).
9. Remove the 5 lock screws and detach the Stand Fixing Angle.
10.Remove the 6 lock screws and detach the Main Shield.
11.Disconnect all the connectors from all the PWBs.

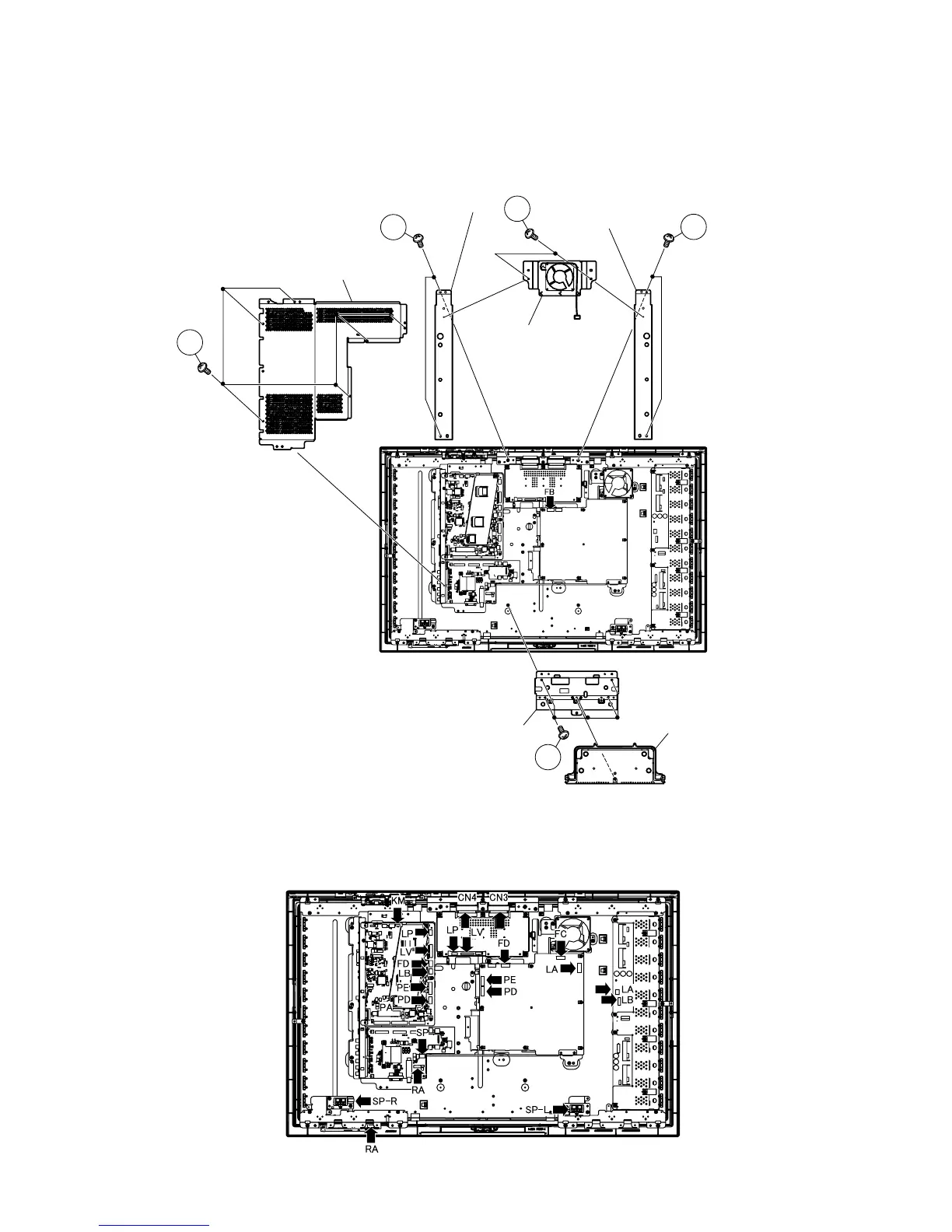

Stand Bottom Cover
Stand Fixing Angle
Fan Angle C Ass'y
10
9
7
8
8
SUS Angle (R)
Main Shield
SUS Angle (L)
