12.Remove the 3 lock screws and detach the Fan Angle L Ass’y.
13.Remove the 2 lock screws and detach the SP (L) PWB.
14.Remove the 3 lock screws and detach the SP Fixing Angle (L).
15.Remove the 2 lock screws and detach the SP (R) PWB.
16.Remove the 3 lock screws and detach the SP Fixing Angle (R).
17.Remove the 2 lock screws and detach the R/C, LED PWB.
18.Remove the 2 lock screws and detach the Top Control Cover.
19.Remove the 3 lock screws and detach the KEY PWB.
20.Remove the 4 lock screws and detach the Try Chassis.
12
13
14
16
16
17
18
19
20
14
15

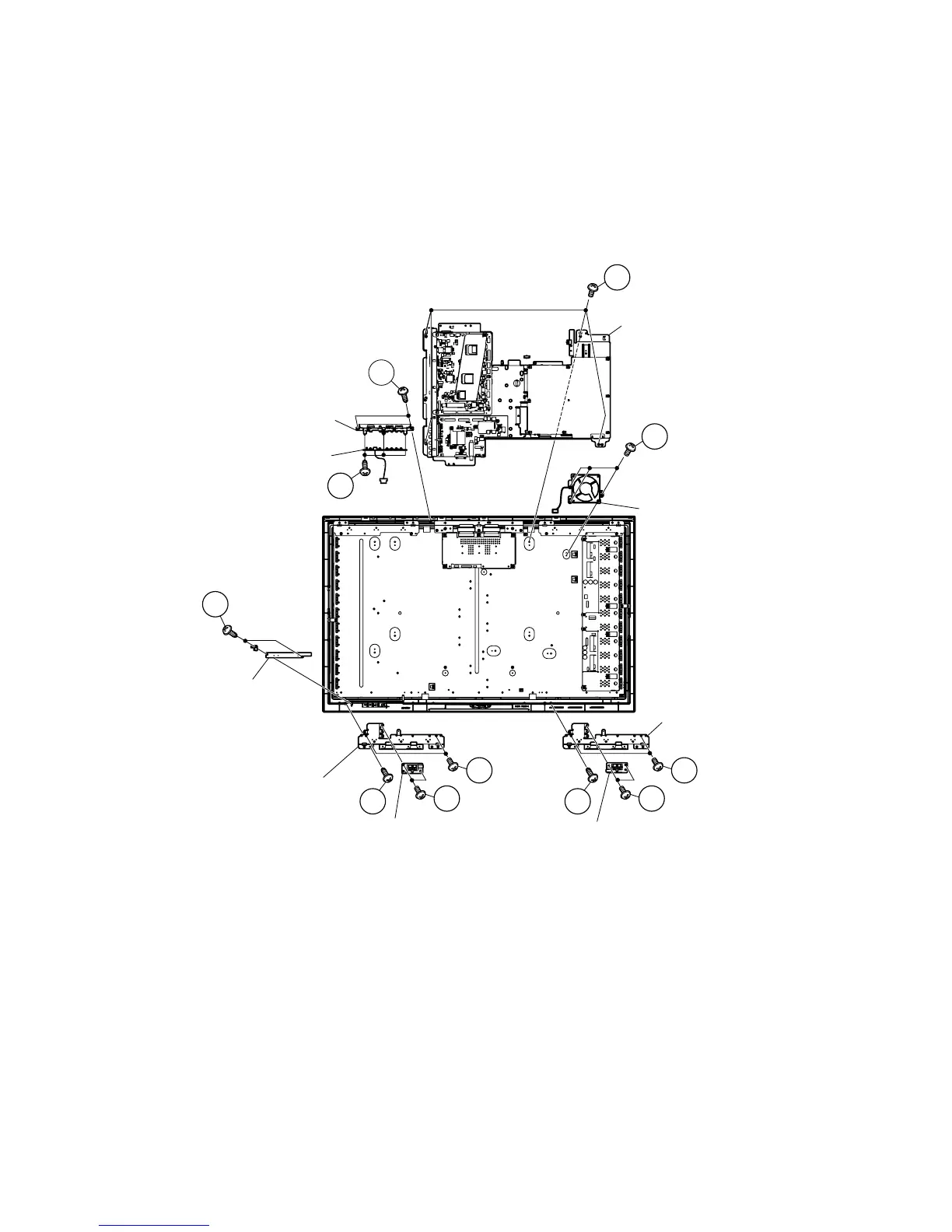

Fan Angle L Ass'y
Top Control Cover
KEY PWB
Try Chassis
SP (L) PWB
SP Fixing Angle (L)
SP Fixing Angle (R)
R/C, LED PWB
SP (R) PWB
