Sharp LC-37D90U User Manual

LC-37D90U
4 – 4

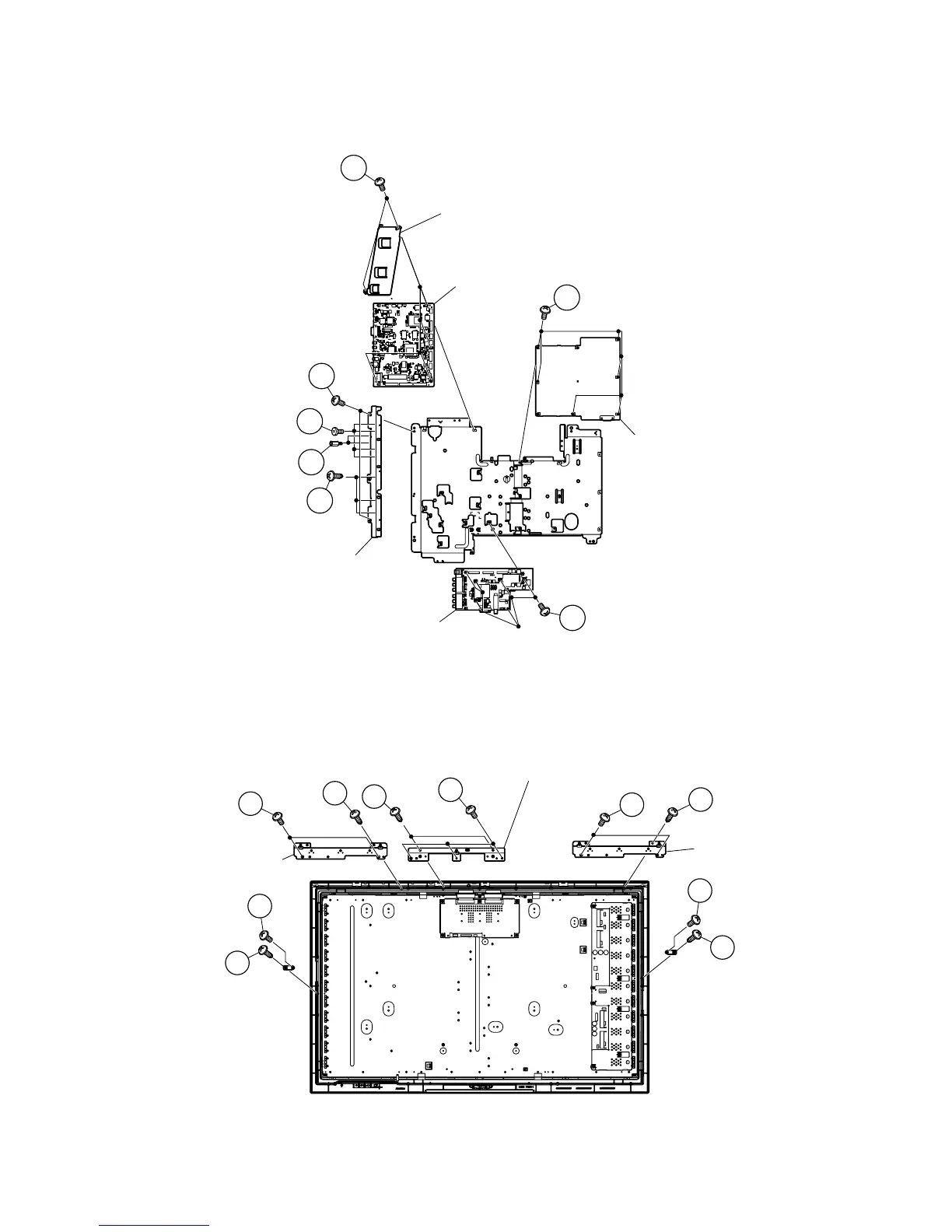

21.Remove the 9 lock screws and detach the Jack Angle Long.
22.Remove the 6 lock screws and detach the POWER PWB.
23.Remove the 6 lock screws and detach the IF PWB.
24.Remove the 5 lock screws and detach the MAIN PWB Radiator and MAIN PWB.
25.Remove the 2 lock screws from the Panel Fixing Angle (C), the 2 lock screws from the Panel Fixing Angle (L)(R) and detach the LCD Panel Ass'y.
26.Remove the 3 lock screws and detach the Panel Fixing Angle (C).
27.Remove the 4 lock screws and detach the Panel Fixing Angle (L)(R).
21
22
23
24
21
21
Jack Angle Long
POWER PWB
IF PWB
MAIN PWB Radiator
MAIN PWB
25
25
26
27
27
25
Panel Fixing Angle (C)
Panel Fixing
Angle (R)
Panel Fixing
Angle (L)
