LC-37D90U
5 – 22
2.3. VHiAN5832SA-1Y (ASSY: IC1401)
United States TV SAP SIF_DECODER

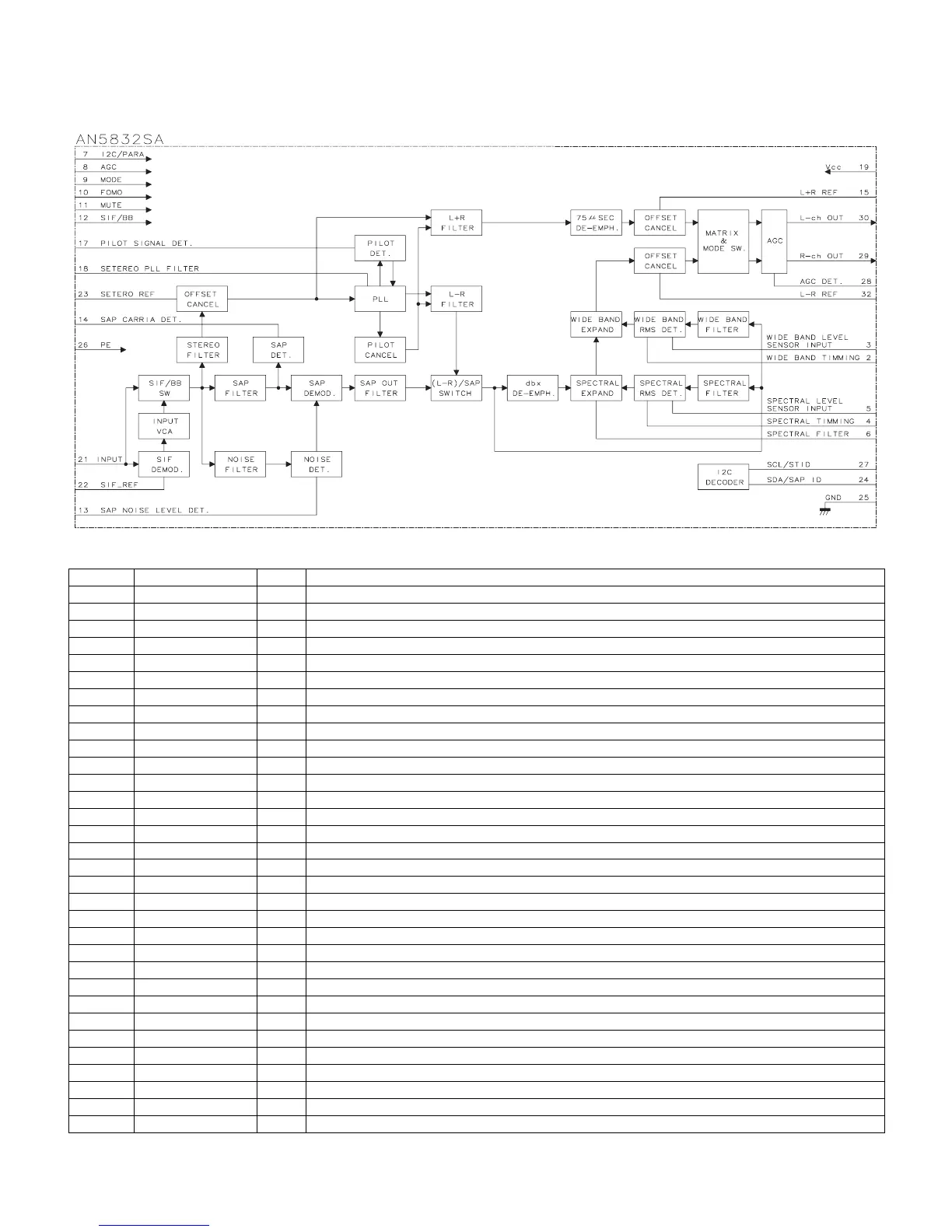

• Block Diagram [VHiAN5832SA-1Y (ASSY: IC1401)]
• Pin Function [VHiAN5832SA-1Y (ASSY: IC1401)]
Pin No. Pin Name I/O Pin Function
1 N.C --- Non connection.
2 WB TIM --- Wide band timing.
3 WB DET I Wide band level sensor input terminal.
4 SAP TIM --- Spectral timing.
5 SAP DET I Spectral level sensor input terminal.
6 SPE FIL --- Spectral filter.
7 I2C/PARA I/O I2C/Pararel switch.
8 AGC SW I AGC switch.
9 MODE I Mode switch.
10 FOMO I Force mono switch.
11 MUTE I Mute switch.
12 SIF/BB I SIF/Base band switch.
13 NOISE DET --- SAP noise level detector.
14 SAP DET --- SAP carrier detector.
15 L+R REF --- L+R REF.
16 N.C --- Non connection.
17 PILOT DET --- Pilot signal detector.
18 PLL --- Stereo PLL filter.
19 VCC --- Power supply.
20 N.C --- Non connection.
21 INPUT I Input.
22 SIF REF --- SIF REF.
23 STEREO REF --- STEREO REF.
24 SDA/SAP ID I/O SDA/SAP ID.
25 GND --- Ground.
26 PE --- PE.
27 SCL/STID I SCL/STID.
28 AGC DET --- AGC DET.
29 ROUT O R-channel output.
30 LOUT O L-channel output.
31 N.C --- Non connection.
32 L-R REF --- L-R REF.
