English - 11 -
NOTE: When connecting a device via the YPbPr or Side AV input, you must use a connection cable to
enable connection. See the illustrations above. | You can use YPbPr to VGA cable (not supplied) to enable YPbPr
signal via VGA input. |You cannot use VGA and YPbPr at the same time. | To enable PC audio, you will need to
use the SIDE AV CONNECTION cable’s WHITE & RED inputs. | If an external device is connected via the SCART
socket, the TV will automatically switch to AV mode.| When receiving DTV channels (Mpeg4 H.264) or while in
Media Browser mode, output will not be available via the scart socket. | When using the wall mounting kit (available
from third party in the market), we recommend that you plug all your cables into the back of the TV before mounting
on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module
instruction manual for details of the settings.

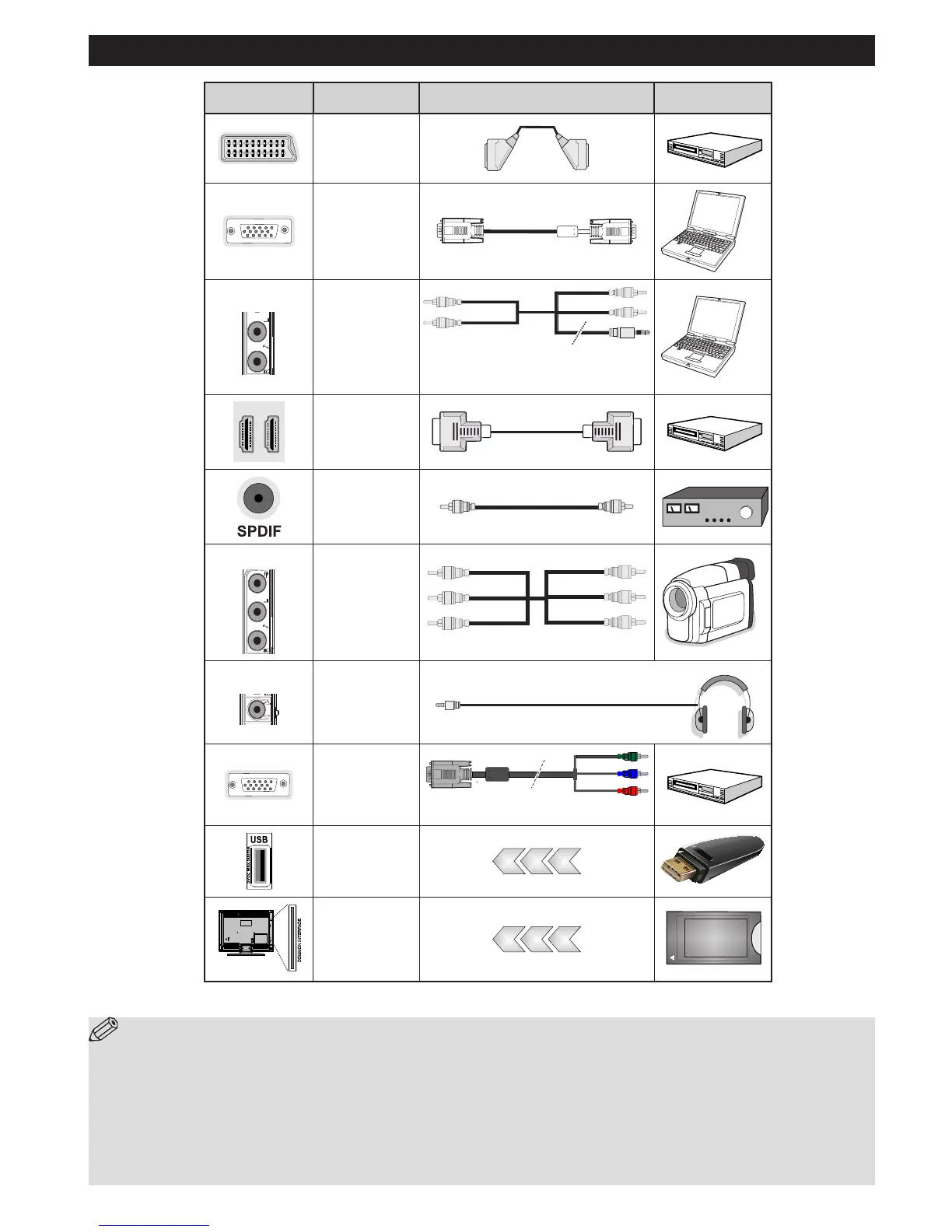

Connector Type Cables Device
Scart
Connection
(back)
VGA
Connection
(back)
SIDE AV
PC/YPbPr
Audio
Connection
(side)
Side Audio
YPbPr or PC Connection Cable
(Not supplied)
HDMI
Connection
(back)
SPDIF
Connection
(back)
SIDE AV
Side AV
(Audio/Video)
Connection
(side)
HEADPHONE
Headphone
Connection
(side)
YPbPr Video
Connection
(back)
PC to YPbPr Connection Cable
USB
Connection
(side)
CI
Connection
(side)
CAM
module
Connections
To Next Page
