CONNECTIONS
A
C
D E
F
HG
I
J
K
LN
O
B

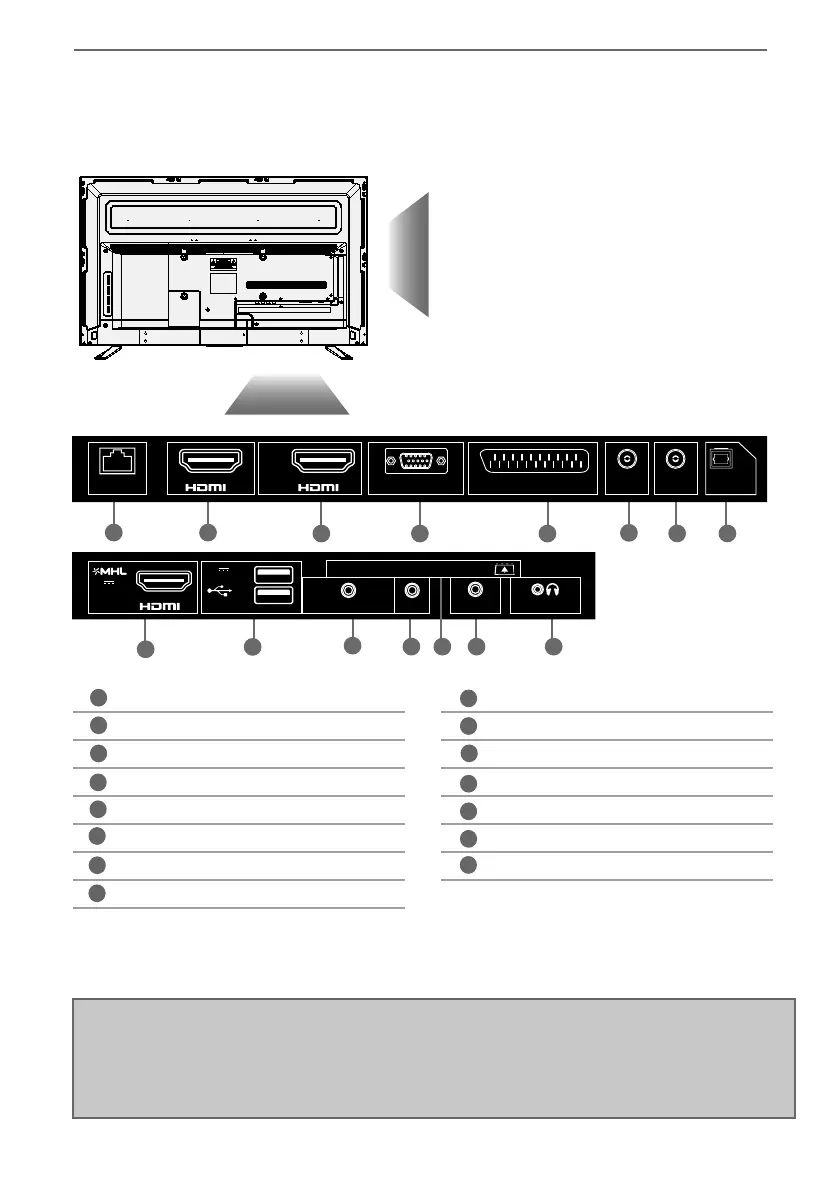

LAN/Ethernet* Network connection
HDMI 1 HDMI input
HDMI 2 HDMI input (ARC)
VGA PC VGA-PC input
SCART SCART input
RF in RF / TV aerial input
SAT In** Satellite Input
Digital audio Digital optical audio output
HDMI 3*** HDMI input (MHL Port)
USB x 2 USB port
VGA PC audio in 3.5mm PC audio input
AV in Audio/video input
CI card in Common interface module
YPbPr HD input (Ypbpr)
Earphones Earphone input
A
I
L
B
J
M
N
O
C
D
E
F
G
H
K
** The LAN/Ethernet port is used for Freeview HD services and smart functions.
*Satellite input available for LC-32CFE6352K and LC-55CFE6352K models only
VGA/PC In
SCART
RF IN SAT IN
ARC
OPTICAL
DIGITAL
AUDIO OUT
ETHERNET
2
1
USB (2.0)
5V
500mA MAX
CI CARD IN
YPbPr INAV INVGA/PC (Audio In) EARPHONE
5V
900mA MAX
3
Connections
*** HDMI 3 (MHL Port) - MHL is a wired solution that allows you to access the media from your phone or
tablet onto the big screen in the highest quality.
By connecting an MHL cable (sold separately) from your mobile device and into your TV you can playback all
your videos, games and photographs directly onto your TV.
MHL simply mirrors the screen of your mobile device so will work with all applications, whilst connected it
will also charge your device too.
