Sharp LC-40LE433U User Manual

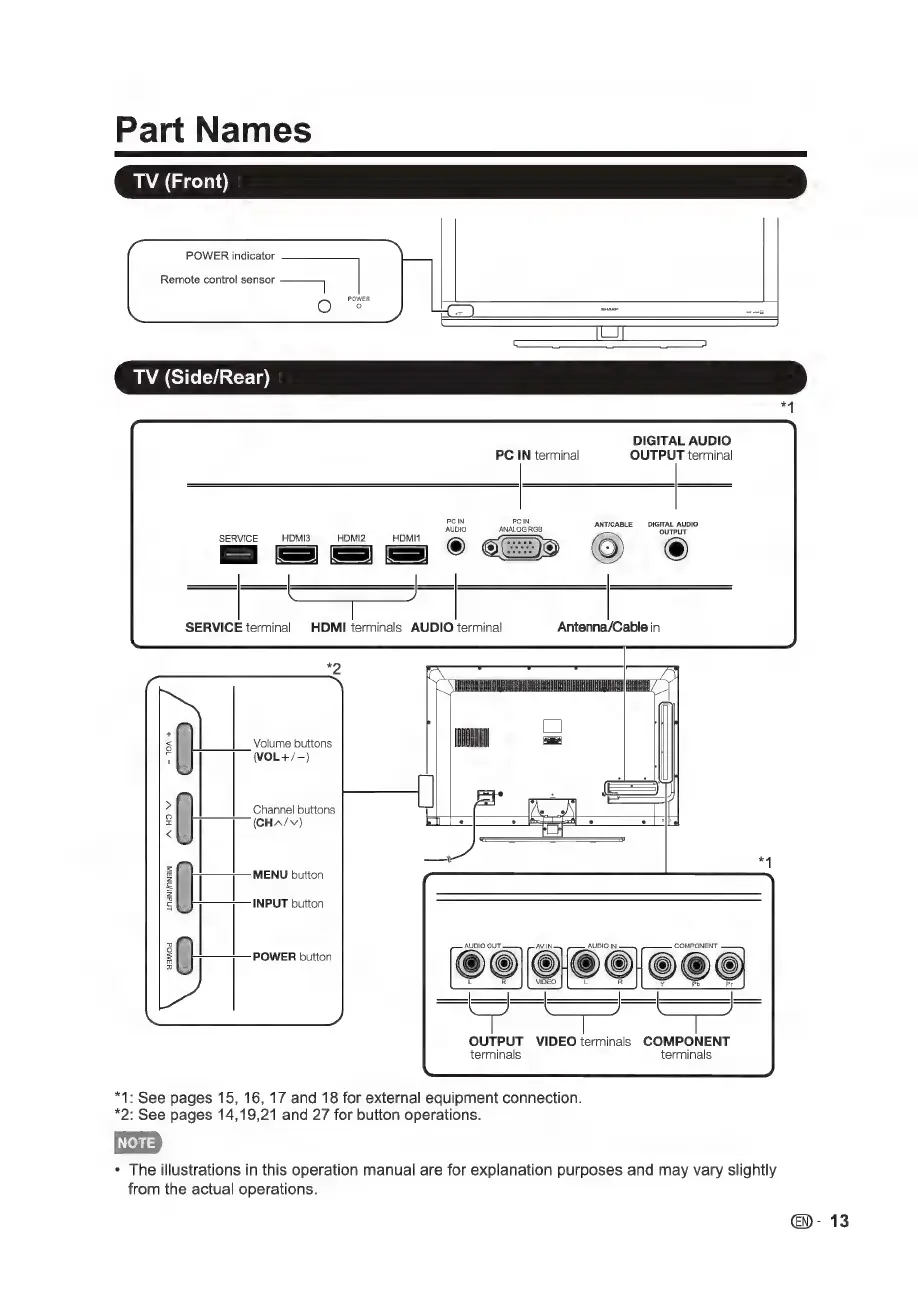

Part Names
TV (Front)
POWER indicator
Remote control sensor —
power
O œ e
z =
TV (Side/Rear)
DIGITAL AUDIO
PC IN terminal OUTPUT terminal
ANT/CABLE DIGITAL AUDIO
OUTPUT
SERVICE HDMI3 HDMI2 EDO
a “| S a i
SERVICE terminal HDMI terminals AUDIO terminal Antenna/Cable in
Volume buttons
(VOL+/-)
Channel buttons
(CHA/v)
MENU button
1NdNI/NNIW
INPUT button
AUDIO IN COMPONENT
POWER button
OUTPUT VIDEO terminals COMPONENT
terminals terminals
*1: See pages 15, 16, 17 and 18 for external equipment connection.
*2: See pages 14,19,21 and 27 for button operations.
* The illustrations in this operation manual are for explanation purposes and may vary slightly
from the actual operations.
- 13
