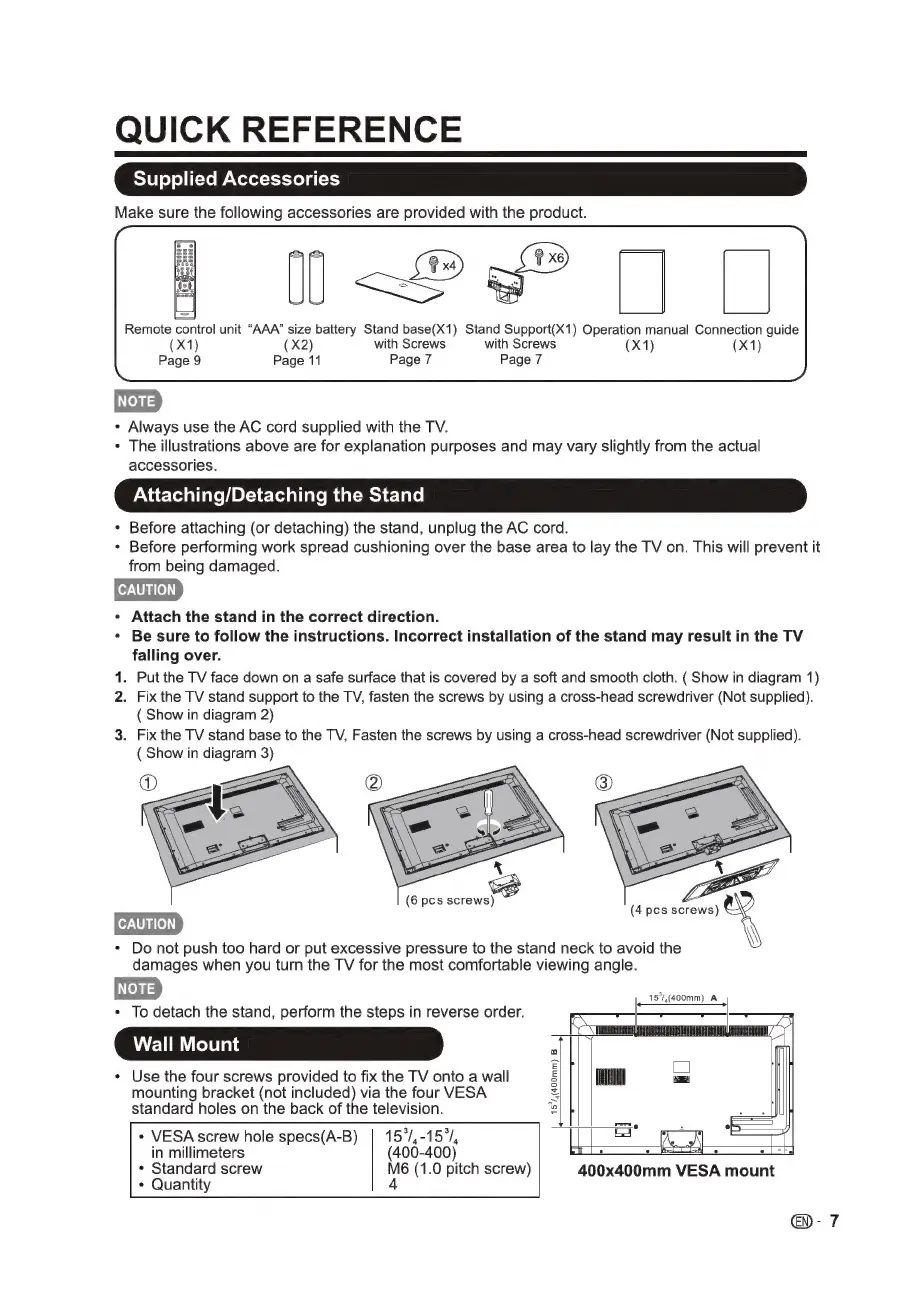

QUICK REFERENCE
Supplied Accessories
Make sure the following accessories are provided with the product.
<2 $
Remote control unit “AAA” size battery Stand base(X1) Stand Support(X1) Operation manual Connection guide
(X1) (X2) with Screws with Screws (X1) (X1)
Page 9 Page 11 Page 7 Page 7
+ Always use the AC cord supplied with the TV.
* The illustrations above are for explanation purposes and may vary slightly from the actual
accessories.
Attaching/Detaching the Stand
* Before attaching (or detaching) the stand, unplug the AC cord.
* Before performing work spread cushioning over the base area to lay the TV on. This will prevent it
from being damaged.
* Attach the stand in the correct direction.
* Be sure to follow the instructions. Incorrect installation of the stand may result in the TV
falling over.
1. Put the TV face down on a safe surface that is covered by a soft and smooth cloth. ( Show in diagram 1)
2. Fix the TV stand support to the TV, fasten the screws by using a cross-head screwdriver (Not supplied).
( Show in diagram 2)
3. Fix the TV stand base to the TV, Fasten the screws by using a cross-head screwdriver (Not supplied).
( Show in diagram 3)
(6 pcs screws)
(4 pcs screws)
* Do not push too hard or put excessive pressure to the stand neck to avoid the
damages when you turn the TV for the most comfortable viewing angle.
NOTE a
15/,(400mm) A
» To detach the stand, perform the steps in reverse order. |
+ Use the four screws provided to fix the TV onto a wall
mounting bracket (not included) via the four VESA
standard holes on the back of the television.
+ VESA screw hole specs(A-B) | 15°/,-15°/,
in millimeters (400-400)
» Standard screw M6 (1.0 pitch screw) A VESA mount
* Quantity 4
15°/,(400mm) B
- 7
